What Is the Difference Between Single Phase and Three Phase Meters?

Households, businesses, and industries in today’s world need to learn more about metering systems because electricity is used everywhere. The consumption of electrical energy is measured by energy meters and most of these are the single phase energy meters and the three phase energy meters. Also, to understand these meters in detail, it is essential to understand the difference between them. Why does your house have a single phase meter when big factories or commercial properties need three phase meter?

The difference between the single phase and the three phase meter will be discussed in this blog based on various aspects like design, use, functionality, advantage and application. Whether you are unsure about the type of meter that you will require or you just need to know the differences between single phase meters and three phase meters, this guide is the one you need.

What is Single Phase Energy Meter?

Single phase energy meter is used to measure the consumption of the electricity in the single-phase power supply. In more understandable language, it measures the use of power in systems operating at a single alternating current (AC) voltage phase.

A single phase meter system usually has two wires:

• The current is enabled through one phase wire.

• One neutral line terminates the circuit.

Common voltages used in these systems are 230V (50Hz), which is the most common applied across most residential establishments. These systems are mostly used in one-phase meters in residential areas, small offices, and light commercial areas, as the load is not heavy.

Benefits of Single Phase Energy Meter

Single-phase energy meters are widely used in residential and light commercial settings due to their simplicity and efficiency. Below are the key benefits of using a single-phase meter:

• Excellent in Home Applications: These are suitable to run the daily home appliances like fans, refrigerators, televisions, and lighting. The meters are ideal for homes with a typical load pattern. They provide reliable and accurate measurements of energy consumption for household electronics and appliances. This makes them perfect for apartments, independent houses, and small shops.

• Cost-Effective: It is easier to install and maintain since it has a simple structure, and less wiring is required. Single-phase meters have fewer components. This reduces installation complexity and service costs. It makes them an affordable option for individual consumers and small-scale property developers looking for budget-friendly metering solutions.

• Weight: These are small and lightweight. It makes them suitable for places with limited space. Their compact design ensures easy wall mounting and portability in densely packed electrical panels. The lightweight nature also reduces shipping and handling costs. This makes them convenient for rural and urban deployment alike.

• Low Load Efficient: It is efficient on low-load applications with the power demand as low as 5 HP (horsepower). They are designed for residential and light-load applications. These meters deliver optimal performance where heavy-duty metering is unnecessary. They consume less internal power. Hence, they help maintain energy efficiency even with small or intermittent loads.

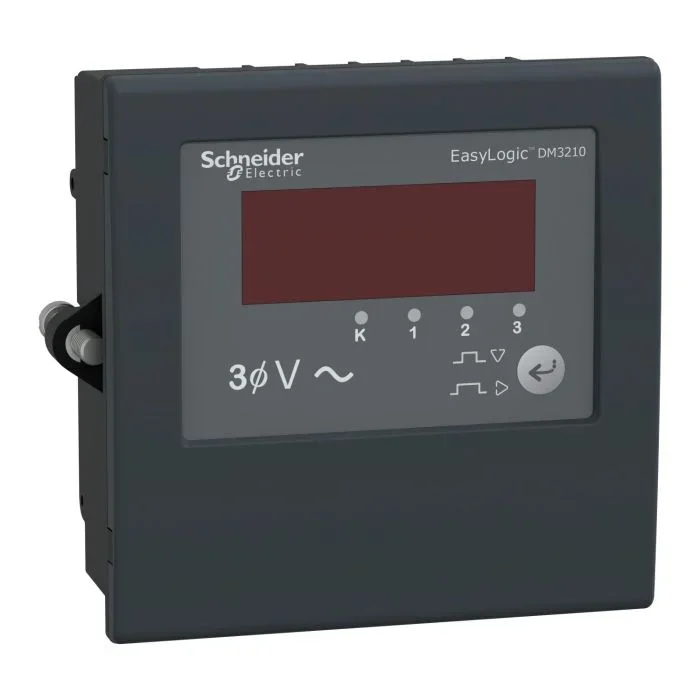

What is a Three Phase Energy Meter?

Three phase energy meter is constructed on systems that use three alternating currents, which are separated by 120 degrees from each other. Such meters are also fundamental in the case of high power demand as required in commercial buildings, manufacturing units, and even industrial plants.

A typical three phase meter will contain:

• Current carrying three phase wires.

• One neutral wire is needed to make the circuit complete.

This means that the usual voltage in a three phase system is 415V and so a great amount of power can be processed with higher efficiency.

Benefits of Three Phase Energy Meter

Three-phase energy meters are widely used in industrial, commercial, and large residential applications. They are known for their efficiency, reliability, and ability to handle heavy electrical loads. Here are the key benefits of three phase energy meter:

• Applicable to High Power Loads: They supply high-load purposes of driving equipment and machinery without external starters. Three-phase systems are ideal for powering heavy-duty motors, compressors, HVAC systems, and industrial machinery. These meters can handle higher voltages and current demands. This makes them suitable for factories, commercial buildings, and agricultural operations.

• Stable Power-Flow: Saves on a smoother and uninterrupted supply of power, hence it is sensible and consistent. Three-phase systems offer continuous power transfer with minimal fluctuation. This results in fewer voltage drops, reduced risk of equipment damage, and improved overall operational efficiency.

• Economical Transmission: Transmits the same amount of power with less amount of conductor material than single phase systems. Three-phase systems can deliver more power using thinner conductors due to the balanced load distribution across three wires. This reduces infrastructure costs, lowers transmission losses, and increases energy efficiency over long distances.

• Backup Support: If one phase fails, the others can still sustain the supply of power, hence lowering the chances of total power loss. This built-in redundancy enhances reliability in power distribution. Even during a single-phase failure, essential systems can continue operating. It minimizes downtime and prevents critical failures in large facilities or industrial operations.

Single Phase vs Three Phase Meter: Key Differences

Let’s compare the single phase meter vs three phase meter across various aspects:

Clearly, the difference between single phase and three phase meter lies in their capacity, application, and efficiency.

What is the difference between a single phase and 3 phase energy meter?

The difference between single phase and three phase energy meters is based on their capability to circulate power load. One single phase energy meter is perfect when the power consumption is limited, and the wiring is also less but a three phase energy meter is necessary when there is a big demanding equipment.

In addition, single phase meters are independent in terms of installation and require little maintenance. Hence, they are an economical option. On the other hand, three phase meters present solid solutions in high-powered areas where there is a keen focus on stability and constant supply.

In selecting between the two, it is important to ensure that you not only observe the power requirement but also the kind of application and the scalability in the future.

Where Are These Meters Used?

Single Phase Meters:

• Residential homes: Used in individual houses where daily power needs are limited to appliance. These include lights, fans, televisions, and small kitchen gadgets. The meters are ideal for single-family units that don't require heavy electrical loads.

• Apartments: Installed in each apartment unit to monitor individual consumption. They offer accurate billing for tenants. Also, they help in energy management without needing complex infrastructure.

• Small offices: Suitable for local businesses or startups with basic energy needs. These include computers, lighting, and small appliances. They eradicate the need for industrial-grade equipment.

• Light commercial spaces: Perfect for small shops, clinics, or cafes where the energy usage is steady but not intensive. They provide cost-effective and reliable metering solutions in such low-load environments.

Three Phase Meters:

• Industrial factories: Used to monitor and control power consumed by heavy machinery and large motors. Three-phase meters are critical for ensuring operational efficiency. They prevent overload in manufacturing environments.

• Warehouses: Support lighting, HVAC systems, conveyors, and other large equipment. These meters help manage higher power demands. They ensure uninterrupted workflow in logistics and storage centers.

• Large office buildings: Enable centralized monitoring of energy across multiple floors and departments. They handle high loads from elevators, centralized AC units, and server rooms efficiently.

• Hospitals: Used for uninterrupted power delivery to life-saving equipment, HVAC, and lighting systems. Three-phase meters are essential for maintaining stability. They help avoid downtime in critical healthcare environments.

• Shopping malls: Support large-scale lighting, escalators, air conditioning systems, and hundreds of shops. These meters help track energy consumption across tenants. They enable better load balancing and billing management.

The use case is a significant factor in the single phase vs three phase meter decision-making process.

Which One Should You Choose?

The decision between a single-phase and a three-phase energy meter depends on your energy needs, type of premises, and future scalability. Here’s a detailed guide to help you make the right choice:

Choose a single phase meter if:

• Your electricity usage is limited to basic appliances. If your power consumption is primarily for fans, lights, TVs, laptops, or small kitchen appliances, a single-phase meter will be more than sufficient. It’s ideal for low-load, day-to-day household operations.

• You're setting up in a small home or office. For compact homes, studio apartments, or small offices with minimal energy needs, a single-phase meter is the simplest and most efficient option. It’s also easier to install in buildings with limited electrical infrastructure.

• Budget and simplicity are your top priorities. Single-phase meters are cost-effective, both in initial investment and maintenance. They’re easier to understand, operate, and maintain. This makes them perfect for users looking for affordable and hassle-free energy monitoring.

Choose a three phase meter if:

• You run power-intensive equipment or machinery. If your setup includes high-power machines, HVAC systems, elevators, or industrial motors, a three-phase meter is essential. It can handle heavy loads without voltage drops or performance issues.

• You require stable and continuous energy flow. Three-phase systems ensure balanced and uninterrupted power supply. This reduces risks of power fluctuation and outages. It is crucial for sensitive equipment, continuous operations, and high-dependency applications like hospitals or production lines.

• You're setting up a commercial or industrial unit. Large offices, shopping centers, warehouses, and factories need three-phase meters for accurate monitoring and efficient load distribution. These meters support higher capacity systems and are scalable for future energy demands.

Understanding the difference between single phase and three phase meters ensures that you make the right choice for your specific energy needs.

Also Read: Energy Meters: Types & Working Principles

Conclusion

A one phase energy meter is efficient in meeting residential power requirements and a three phase energy meter meets high power industrial usage as well as commercial usage. Therefore, when upgrading the existing system or installing new energy connection, it would be of benefit to know the difference between single phase and three phase energy meter. Also, no matter what type you need, shop from Schneider Electric eShop for the best quality and price.

FAQ's

Q1. Will I be able to change a single-phase meter into a three-phase meter when I require more power?

Ans: Sure, it is upgradable. When your usage rises dramatically, such as when you have added some appliances, air conditioning systems, or business facilities, you can upgrade your meter as well as your connection.

Q2. Do single-phase and three-phase meters have different electricity bills?

Ans: The rate of electricity charged is usually on the basis of use (kWh) and not on the basis of the meter. Three-phase meters can, however, be subject to other fixed charges or tariffs as they are used industrially or commercially.

Q3. Do residential premises permit the usage of three-phase meters?

Ans: Three-phase meters can be installed if the residence demands more energy loads (i.e., large houses with central air-conditioning or multi-floor houses). They are, however, more prevalent in commercial and industrial districts.
