There is an unsung savior that makes sure everything starts safely and efficiently when you turn on your air conditioner or an industrial motor. This device is an AC contactor, a compact yet powerful component that manages the electricity flow to large electrical appliances.

A contactor might not appear much at first sight, but in the modern electric world, its contribution is immense. Be it cooling the house or smoothing running of a factory, this tiny device does a lot.

In the subsequent sections, we shall explore AC contactor in detail, its functionalities, components and its importance.

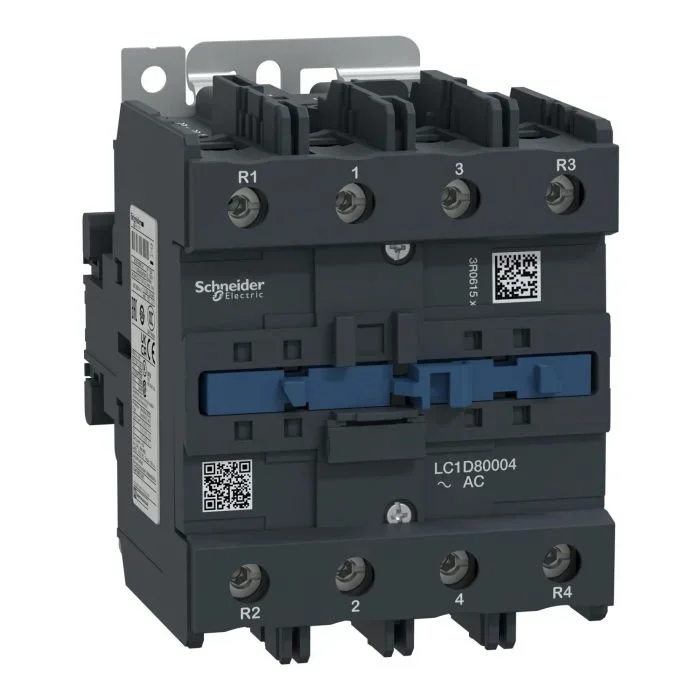

The Basics: What Exactly is an AC Contactors

The AC contactor is an electrical switch which has its own unique features. They operate within a circuit. Unlike normal manual switches, they do not need to be operated directly as there is an open shut mechanism to the device that is triggered through receiving a signal from a thermostat or timer or control system.

The reason these switches are frequently found in HVAC systems, motors, lighting panels, and industrial machinery is due to their ability to withstand and manage high voltage and current.

To summarize: contactors facilitate the safe operation of high-power equipment using low-voltage control circuits. It sounds simple, but the effectiveness is remarkable.

What is the Operating Principle of AC Contactors?

AC contactors play a crucial role in controlling power flow in electrical systems. Below is break down of their working principle into key components.

1. Coil Activation

The contactor features an electromagnetic coil. It becomes energized when voltage is applied. This voltage can come from a switch, relay, or control signal such as a thermostat. The coil generates a magnetic field essential for the next step in the operation once it is energised.

2. Magnetic Field Creation

The coil produces a magnetic field after energising. This magnetic field attracts a movable core or armature. The magnetic action is the driving force that closes the contact points inside the contactor. This allows power to flow to connected equipment like motors or compressors.

3. Contact Closure

The magnetic field pulls the armature, closing normally open (NO) contacts. This forms a path for electrical current to flow through the main circuit. Once the contacts close, power is supplied to the load. This activates the connected electrical device or system.

4. Deactivation of the Coil

Power is removed from the coil when the control signal stops. Without voltage, the magnetic field disappears. As a result, the armature is released and spring-loaded mechanisms return the contacts to their original open state, breaking the circuit instantly.

5. Audible Operation Feedback

A noticeable "click" sound is produced when the contactor operates. This is caused by the mechanical movement of the contacts and armature. That click often heard in HVAC systems is a reliable indicator that the contactor has activated or deactivated successfully.

AC Contactors and Their Categories

Contactors differ based on the type of device they are meant to control. Below are a few common ones:

1. Single Pole AC Contactor

The single pole AC contactor is one of the simplest ones available as it contains a single main contact. Such systems are commonly found in small air conditioning units in homes. It is simple in design as well as functionality.

2. Double Pole AC Contactor

The double pole AC contactor is more advanced than the single pole contactor as it can control two electrical circuits at a time. This is very helpful in HVAC appliances and mid-range commercial equipment. In addition to this, there are also three-pole and four pole contactors. These are mainly used in industrial setups where there is a need for controlling three phase power or where a neutral line also needs to be controlled.

Where You Can Find an AC Contactor?

You will find these devices concealed in control cabinets and electrical cupboards. They are used in:

• AC units– Used to control the operation of compressors and fans. It ensures efficient cycling and thermal regulation in both residential and commercial HVAC systems. They help prevent short cycling and overuse of the compressor by managing when to switch on or off. This not only enhances energy efficiency but also extends the life of the HVAC unit by reducing unnecessary wear and tear on internal components.

• Industrial equipment– Essential in managing the start-up and shut-down of heavy-duty motors, allowing for controlled acceleration and deceleration to protect both equipment and operators. They offer remote control functionality and overload protection. This ensures safe operation even under harsh industrial conditions. AC contactors also integrate easily into programmable logic controller (PLC) systems. This makes them a core part of automated manufacturing and process control operations.

• Fountain, irrigation, and well pump control systems– Found in fountain setups, irrigation systems, and deep well pumps where they automate pump operations for consistent water delivery and energy efficiency. AC contactors minimize water wastage and lower operational costs. In agricultural and landscape applications, they are often paired with timers or moisture sensors for optimized irrigation, improving productivity while conserving resources.

• Lighting control systems– Widely implemented in commercial buildings, warehouses, and arenas to automate lighting based on schedules, occupancy sensors, or remote commands. These systems are designed to handle large lighting loads and reduce manual intervention. AC contactors improve lighting efficiency, ensure safety by reducing arcing in switches. They also support smart building integrations where lighting needs to sync with security or energy management systems.

They allow for remote or automated operation, with no need for a human to be physically present.

A Quick Look Inside: What’s an AC Contactor Switch Made Of?

The components that make an AC contactor are:

• Coil – The electromagnetic coil is the heart of the contactor. It creates a magnetic field that pulls the contacts together to close the circuit when energised. This coil is usually made of copper or aluminium wire. It is wound tightly to generate sufficient magnetic force. When current flows through it, the magnetic field activates the armature, initiating the switching action. The voltage rating of the coil varies depending on the application.

• Contacts – These constitute the electrical circuit that may be opened or closed. They are the conductive elements that open or close the electrical circuit. There are usually main power contacts for high current and auxiliary contacts for control signals. Made from high-conductivity materials like silver alloys, these contacts are designed to withstand arcing and resist wear.

• Armature – It is the part that moves into a created magnetic field. A moving metal part that is attracted by the magnetic field from the coil. It physically closes or opens the contacts depending on whether the coil is energized. The armature functions as a bridge between the coil and contacts. When energized, it moves swiftly to either make or break the connection, ensuring rapid and reliable switching. Its motion is often cushioned to prevent contact bounce.

• Spring mechanism – It helps keep an open position when the power circuit is cut. The spring returns the contactor to its open position when the coil is de-energized. It ensures the circuit breaks as soon as power is removed. This mechanism guarantees a quick and clean disconnection of the electrical path, helping to avoid unintentional contact welding. The spring is calibrated for just the right amount of resistance to restore the armature’s position instantly.

• Protective enclosure – It is capable of stopping dust and moisture. A durable casing that shields the internal components from dust, moisture, and accidental contact, essential for safety and reliability. The enclosure is typically made of high-impact plastic or metal and is often rated with IP or NEMA standards for protection. In industrial environments, this housing plays a vital role in maintaining performance and preventing external damage.

These components together provide a strong interplay and make safe control of high-power equipment with low-power signals possible.

Symptoms of Contactor Failure

Contactors have a limited life span due to the wear and tear they experience over time. Below are a few symptoms that suggest a contactor is failing:

• Equipment turning on or off intermittently: If your machinery or system starts turning on or off unexpectedly, the contactor may not be maintaining consistent contact due to worn or misaligned parts.

• Pitted or burnt contacts: Burn marks or pits on the contacts are common after years of arcing. These surface damages increase electrical resistance, reduce conductivity, and can cause overheating. Pitted contacts often lead to voltage drops, misfiring, or complete failure in high-load applications. Routine inspection is necessary to detect and replace worn contacts before they fail entirely.

• Functional sticking or delays: A contactor that sticks open or closed can delay the startup or shutdown of equipment. This may be due to debris, rust, or worn springs. Such delays can affect synchronization in automated processes or safety shutdowns, increasing the risk of mechanical failure or system overloads during operation.

• Equipment buzzing or chattering during operation: A buzzing or chattering noise is often caused by inconsistent voltage to the coil or a failing coil altogether. This vibration indicates that the contactor is struggling to maintain a stable magnetic field. It can lead to overheating, damage to other components, and premature failure of the entire contactor unit.

If any combination of the issues above are experienced, then immediate attention should be given in order to avoid exacerbating problems.

Proper Selection of Contactors

Last but not least, one of the most crucial things to look at when buying AC contactor is its specifications which are:

• Current rating – Must meet the required amp rating of the machine. Ensure the contactor’s ampere (A) rating matches or exceeds the current demand of your load. Underrated contactors may overheat. On the other hand, oversized ones may be unnecessarily bulky and expensive. Always account for startup surge currents, especially for motor loads.

• Voltage rating – Must suit the control circuit as well as power supply. The contactor should be rated appropriately for both the control voltage (used to energize the coil) and the load voltage (supplied to the equipment). It must safely handle the voltage levels of your system without breakdown or arcing.

• Pole configuration – Select single, double, or more depending upon the electrical configuration. Choose the number of poles based on your system’s phase and switching needs. A single-pole contactor is suitable for simple circuits, while 3-pole or 4-pole contactors are used in three-phase industrial systems. More poles allow for greater versatility and redundancy.

• Coil voltage – Triggers like 24V, 110V, and 220V AC are common. Coil voltage refers to the voltage needed to energize the contactor’s electromagnetic coil. Common values include 24V, 110V, and 220V AC or DC. Select one that matches your control circuit to ensure reliable operation and compatibility with your system's design.

Remember to revise the information that is received, and at any case of confusion or dizziness regarding the subject, seeking a professional electrician or technician is advisable.

Safety First: A Few Things to Remember

Electricity can pose significant danger if mishandled. Use these guidelines for safe practices when working with contactors and electrical control equipment:

• Always switch off the electricity before working on equipment.

• Do not assume any ratings—confirm from the nameplate or user guide.

• Ensure all connections are clean and properly tightened.

• Keep electrical enclosures dry.

• Conduct routine inspections for signs of wear or corrosion.

With proper upkeep, the risk of electrical failure is mitigated, and system lifespans are enhanced.

The Role of AC Contactors in Automation

As building automation and smart systems gain traction, AC contactors are increasingly being used in modern control panels. They integrate easily with sensors, timers, and programmable controllers, allowing for load switching without constant manual operation.

Take, for instance, the smart HVAC systems. A thermostat can command the contactor to enable or disable the compressor, which is done automatically—enhancing comfort while optimizing energy consumption. In industrial environments, contactors are command controlled by programmable logic controllers PLCs to expertly manage conveyor belts, motors, and even robotic systems.

Thus, even with advancements in technology, contactors are still a fundamental component in automated electrical control systems.

Also Read: Magnetic Contactor: Types, Uses & Working Principle

Closing Remarks

An AC contactor may appear like a thick box with wires protruding from it, but it conceals a vital device responsible for the smooth functioning of numerous systems, including air conditioning units at homes and motors used in industrial factories.

Everyone can appreciate the work an AC contactor does, whether you are a homeowner, a curious learner, or an engineer seeking an upgrade. Understanding the inner workings of electrical systems aids in better decision making for upgrades and maintenance.

It's one of those small products that work behind the scenes to accomplish significant tasks. Only in the off chance that something goes wrong do we notice it. Regardless of its size, the impact it has is significant.

FAQ's

Q1. Can AC contactors be used for DC applications?

Ans: No, AC contactors are made with special consideration to alternating current (AC) systems and it only works under these systems not in direct current (DC). DC circuits do not naturally have a current zero point and arc extinguishing is therefore harder.

Q2. What is the average life of an AC contactor?

Ans: The operating age of an AC contactor is dictated by the number of operations and ambience. Averagely it has a lifespan of 500,000 to a few million cycles. Decent operation, care to avoid exceeding ratings and clean contacts can greatly increase the life of a contactor.

Q3. Can an AC contactor be overridden manually?

Ans: There are AC contacts with a manual override or test button. This enables the technicians to test or run the system on a temporary basis using no automation. Nevertheless, the manual override is to be intended with caution and by qualified staff mainly when applied to a high power system.
