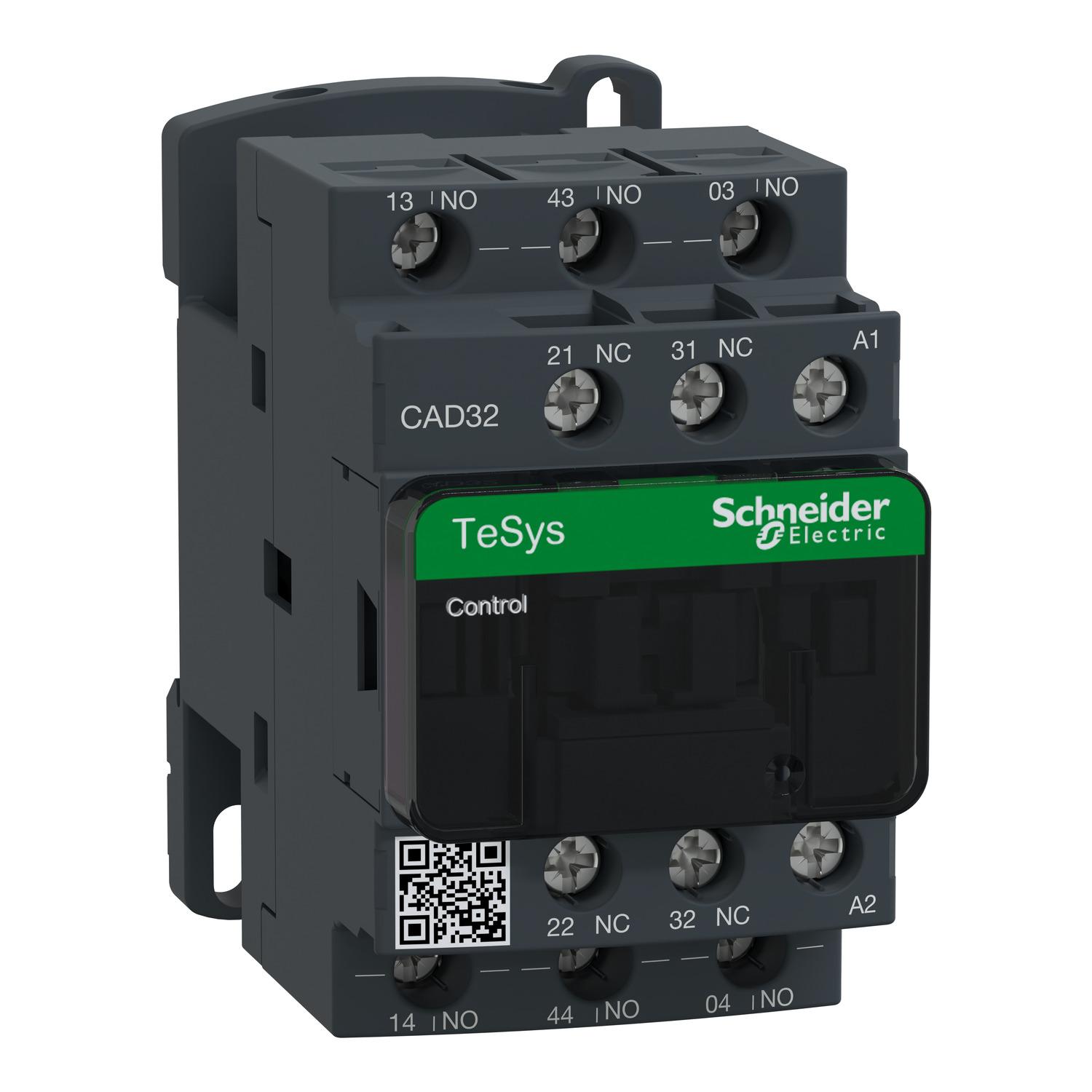

CAD32N7 Contactor 32A 3P 24VDC | Schneider Electric
Images:
Image 360:
How to video:
Further offers for this product
Excl. GST Tax
In Stock
No sellers found for this product.
Excl. GST Tax
CAD32N7 Contactor 32A 3P 24VDC | Schneider Electric
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
TeSys Deca Control Relays
TeSys Deca Control Relays for AC or DC control circuits (AC15, DC13) is a global market leader's innovative motor control and management solution. TeSys offers connected, efficient products and solutions for switching and protection of motors and electrical loads in compliance with all major global electrical standards.
Efficiency
These relays offer versatile configurations with up to five contacts, including various combinations of normally open (NO) and normally closed (NC) contacts, ensuring simultaneous action between them.
Worldwide Compliance
TeSys Deca control relays are designed for AC or DC control circuits, conforming to international standards such as IEC60947 5 1, NFC63 140, VDE0660, BS4794, EN60947 5, UL, and CSA.
Ensuring Safety
By integrating advanced automation solutions with optimized power distribution frameworks, these systems ensure smoother operation, reduced energy consumption, and improved reliability across industrial applications.

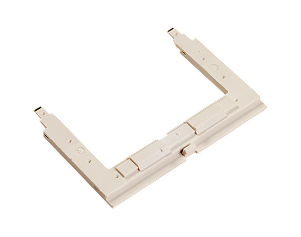

Enhance your power solutions with our extensive range of accessories

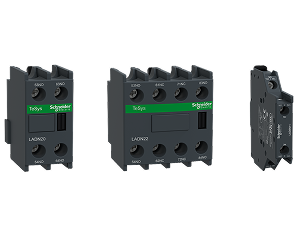

Auxiliary Contact Blocks

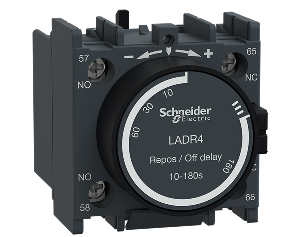

Time delay auxiliary contact block
Line transient suppressor
Gain peace of mind, quality, and value for your installations
High-Performance relays with Global Standards
They support a wide range of coil voltages AC, DC, and low consumption options, making them adaptable to different control requirements. The relays feature instantaneous contacts and can be complemented with auxiliary contact blocks that offer both instantaneous and time delay functions.
Operating reliably across a broad temperature range from 40°C to 70°C, TeSys Deca relays also come with a variety of accessories and spare parts, such as replacement coils, to support maintenance and customization needs.
High performance
Lorem Ipsum is simply dummy text of the printing and
Compact Dimensions
Lorem Ipsum is simply dummy text of the printing and
Continuity of service
Lorem Ipsum is simply dummy text of the printing and
Overview
| Product Name | CAD32N7 Contactor 32A 3P 24VDC | Schneider Electric |
|---|---|
| Tax Class | GST-18 |
| Coil Voltage | 24V DC |
| Country of Origin | India |
| Manufacturer | Schneider Electric |
| Range | TESYSTESYS DECA |
| Product name | TESYS CAD |
| Product or component type | CONTROL RELAY |
| Device short name | CAD |
| Contactor application | CONTROL CIRCUIT |
| Utilisation category | AC-14DC-13AC-15 |
| Pole contact composition | 3 NO + 2 NC |
| Control circuit type | AC AT 50/60 HZ |
| [Uc] control circuit voltage | 415 V AC 50/60 HZ |
| [Uimp] rated impulse withstand voltage | 6 KV CONFORMING TO IEC 60947 |
| [Ith] conventional free air thermal current | 10 A (AT 60 °C) |
| Irms rated making capacity | 140 A AC CONFORMING TO IEC 60947-5-1250 A DC CONFORMING TO IEC 60947-5-1 |
| [Icw] rated short-time withstand current | 100 A - 1 S120 A - 500 MS140 A - 100 MS |
| Associated fuse rating | 10 A GG CONFORMING TO IEC 60947-5-1 |
| [Ui] rated insulation voltage | 600 V UL CERTIFIED600 V CSA CERTIFIED690 V CONFORMING TO IEC 60947-5-1 |
| Mounting support | RAILPLATE |
| Connections - terminals | SCREW CLAMP TERMINALS 1 CABLE(S) 1…4 MM²FLEXIBLE WITHOUT CABLE ENDSCREW CLAMP TERMINALS 2 CABLE(S) 1…4 MM²FLEXIBLE WITHOUT CABLE ENDSCREW CLAMP TERMINALS 1 CABLE(S) 1…4 MM²FLEXIBLE WITH CABLE ENDSCREW CLAMP TERMINALS 2 CABLE(S) 1…2.5 MM²FLEXIBLE WITH CABLE ENDSCREW CLAMP TERMINALS 1 CABLE(S) 1…4 MM²SOLID WITHOUT CABLE ENDSCREW CLAMP TERMINALS 2 CABLE(S) 1…4 MM²SOLID WITHOUT CABLE END |
| Tightening torque | 1.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER PHILIPS NO 21.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER FLAT Ø 6 MM1.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER POZIDRIV NO 2 |
| Control circuit voltage limits | 0.3...0.6 UC (-40…70 °C):DROP-OUT AC 50/60 HZ0.8...1.1 UC (-40…60 °C):OPERATIONAL AC 50 HZ0.85...1.1 UC (-40…60 °C):OPERATIONAL AC 60 HZ1...1.1 UC (60…70 °C):OPERATIONAL AC 50/60 HZ |
| Operating time | 12...22 MS COIL ENERGISATION AND NO CLOSING4...12 MS COIL DE-ENERGISATION AND NO OPENING4...19 MS COIL ENERGISATION AND NC OPENING6...17 MS COIL DE-ENERGISATION AND NC CLOSING |
| Mechanical durability | 30 MCYCLES |
| Maximum operating rate | 180 CYC/MN |
| Inrush power in VA | 70 VA 50 HZ (AT 20 °C) |
| Hold-in power consumption in VA | 8 VA 50 HZ (AT 20 °C) |
| Minimum switching voltage | 17 V |
| Minimum switching current | 5 MA |
| Non-overlap time | 1.5 MS ON ENERGISATION BETWEEN NC AND NO CONTACT1.5 MS ON DE-ENERGISATION BETWEEN NC AND NO CONTACT |
| Insulation resistance | > 10 MOHM |
| Mechanical robustness | SHOCKS CONTROL RELAY OPEN: 10 GN FOR 11 MS CONFORMING TO IEC 60068-2-27SHOCKS CONTROL RELAY CLOSED: 15 GN FOR 11 MS CONFORMING TO IEC 60068-2-27VIBRATIONS CONTROL RELAY OPEN: 2 GN, 5...300 HZ CONFORMING TO IEC 60068-2-6VIBRATIONS CONTROL RELAY CLOSED: 4 GN, 5...300 HZ CONFORMING TO IEC 60068-2-6 |
| Height | 77 MM |
| Width | 45 MM |
| Depth | 84 MM |
| Net weight | 0.58 KG |
| Standards | EN/IEC 60947-5-1GB/T 14048.5UL 60947-5-1CSA C22.2 NO 60947-5-1JIS C8201-5-1 |
| Product certifications | CBCCCULCSAEACCEUKCA |
| IP degree of protection | IP2X FRONT FACE CONFORMING TO VDE 0106 |
| Protective treatment | TH CONFORMING TO IEC 60068 |
| Ambient air temperature for operation | -40…60 °C60…70 °C WITH DERATING |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 0...3000 M |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.4 CM |
| Package 1 Width | 9.4 CM |
| Package 1 Length | 11.18 CM |
| Package 1 Weight | 358.5 G |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 15.0 CM |
| Package 2 Width | 30.0 CM |
| Package 2 Length | 40.0 CM |
| Package 2 Weight | 7.695 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Recyclability potential, in % | 66 |
| Total lifecycle Carbon footprint | 18 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2.4052974453589133 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.2688271654154445 |
| Carbon footprint of the distribution phase [A4] | 0.3 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.09473546449819852 |
| Carbon footprint of the installation phase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 15.364183683872902 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 15 kg CO2 eq. |
| SCIP Number | B67ac941-f42f-4afd-894a-0b6f9cefde62 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
