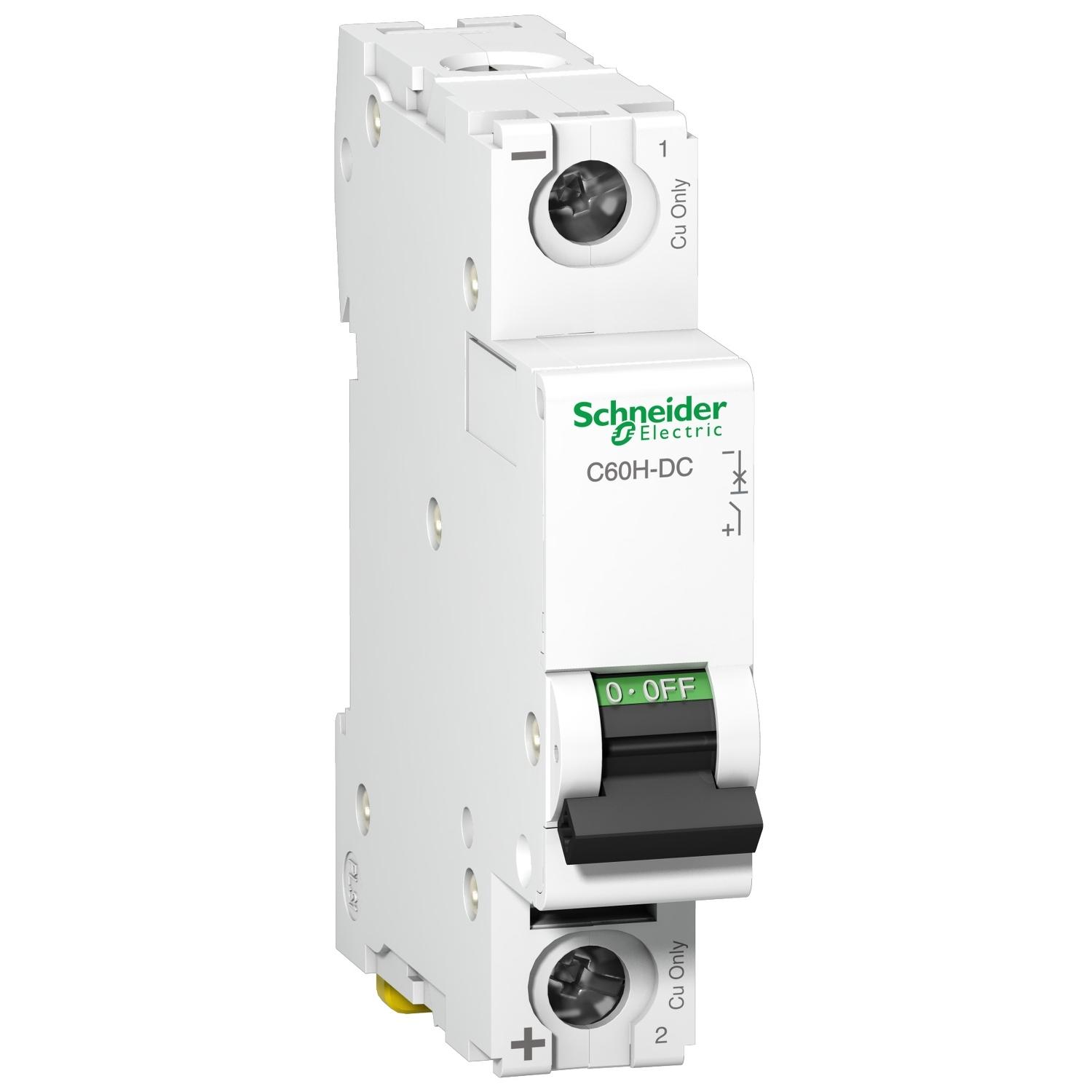

CIRCUIT BREAKER C60H-DC 250VDC 4A 1P C
Images:
Image 360:
How to video:
Further offers for this product
Excl. GST Tax
In Stock
No sellers found for this product.
Excl. GST Tax
CIRCUIT BREAKER C60H-DC 250VDC 4A 1P C
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
This Acti9 C60H-DC is a low voltage direct current miniature circuit breaker (MCB). It has 1P, rated current 4A and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN 60947-2 standard and 10kA at 220VDC conforming to EN 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. It offers VisiTrip for safety during maintenance and VisiSafe to reduce intervention time. The Acti9 C60H-DC is used in direct current circuit (industrial control and automation, transport, renewable energy). This device is dedicated to industrial control, automations, transport and renewable energy applications. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The weight is 0.128kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
Overview
| Product Name | CIRCUIT BREAKER C60H-DC 250VDC 4A 1P C |
|---|---|
| Tax Class | GST-18 |
| Country of Origin | China |
| Manufacturer | Schneider Electric |
| Short Description | Estimated delivery: Timelines may vary based on availability |
| Range | ACTI9 |
| Product name | ACTI9 C60H-DC |
| Product or component type | MINIATURE CIRCUIT-BREAKER |
| Device short name | C60H-DC |
| Device application | DISTRIBUTION |
| Poles description | 1P |
| Number of protected poles | 1 |
| [In] rated current | 4 A AT 25 °C |
| Network type | DC |
| Trip unit technology | THERMAL-MAGNETIC |
| Curve code | C |
| Breaking capacity | 10 KA ICU AT 220 V DC CONFORMING TO EN 60947-210 KA ICU AT 220 V DC CONFORMING TO IEC 60947-26 KA ICU AT 250 V DC CONFORMING TO EN 60947-26 KA ICU AT 250 V DC CONFORMING TO IEC 60947-220 KA ICU AT 110 V DC CONFORMING TO EN 60947-220 KA ICU AT 110 V DC CONFORMING TO IEC 60947-2 |
| Utilisation category | CATEGORY A CONFORMING TO EN 60947-2CATEGORY A CONFORMING TO IEC 60947-2 |
| Suitability for isolation | YES CONFORMING TO IEC 60947-2YES CONFORMING TO EN 60947-2 |
| Standards | EN 60947-2IEC 60947-2 |
| Network frequency | 50/60 HZ |
| [Ue] rated operational voltage | 250 V DC |
| [Ics] rated service breaking capacity | 15 KA 75 % CONFORMING TO EN 60947-2 - 110 V DC15 KA 75 % CONFORMING TO IEC 60947-2 - 110 V DC4.5 KA 75 % CONFORMING TO EN 60947-2 - 250 V DC4.5 KA 75 % CONFORMING TO IEC 60947-2 - 250 V DC7.5 KA 75 % CONFORMING TO EN 60947-2 - 220 V DC7.5 KA 75 % CONFORMING TO IEC 60947-2 - 220 V DC |
| [Ui] rated insulation voltage | 500 V DC CONFORMING TO IEC 60947-2500 V DC CONFORMING TO EN 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 KV CONFORMING TO EN 60947-26 KV CONFORMING TO IEC 60947-2 |
| Contact position indicator | YES |
| Control type | TOGGLE |
| Local signalling | ON/OFF INDICATION |
| mounting mode | FIXED |
| Mounting support | 35 MM SYMMETRICAL DIN RAIL |
| Comb busbar and distribution block compatibility | TOP OR BOTTOM: STANDARD |
| 9 mm pitches | 2 |
| Net weight | 0.128 KG |
| Colour | WHITE |
| Mechanical durability | 20000 CYCLES |
| Electrical durability | 3000 CYCLES L/R = 2 MS |
| Provision for padlocking | PADLOCKABLE |
| Locking options description | IN POSITION O |
| Tightening torque | POWER CIRCUIT: 2.5 N.M TOP OR BOTTOM |
| Earth-leakage protection | WITHOUT |
| Pollution degree | 3 CONFORMING TO EN 60947-23 CONFORMING TO IEC 60947-2 |
| Overvoltage category | IV |
| Tropicalisation | 2 CONFORMING TO IEC 60068-2 |
| Operating altitude | 2000 M |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.700 CM |
| Package 1 Width | 7.000 CM |
| Package 1 Length | 8.400 CM |
| Package 1 Weight | 114.000 G |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.300 CM |
| Package 2 Width | 9.200 CM |
| Package 2 Length | 22.800 CM |
| Package 2 Weight | 1.410 KG |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 144 |
| Package 3 Height | 30.000 CM |
| Package 3 Width | 30.000 CM |
| Package 3 Length | 40.000 CM |
| Package 3 Weight | 17.680 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Toxic heavy metal free | ✓ |
| Mercury free | ✓ |
| Halogen-free status | Product contains halogen above thresholds |
| Silicone-free | No |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | No need of specific recycling operations |
| Recyclability potential, in % | 53 |
| Total lifecycle Carbon footprint | 14 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.8123064360889533 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.8 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.015740330934402726 |
| Carbon footprint of the distribution phase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.008639993287610892 |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 12.925599999999998 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 13 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.3117818157997617 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.3 kg CO2 eq. |
| SCIP Number | A5974528-db7a-4dab-baff-e3d40953a6f2 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
