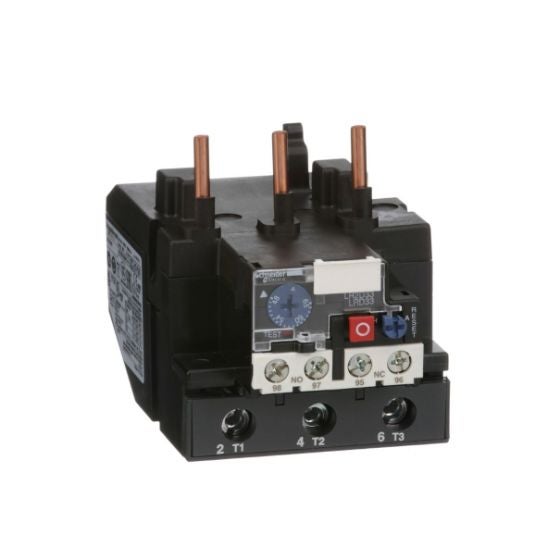

TeSys Thermal OVerload Relay - 48-65A

In stock
SKU
LRD3359
Regular Price ₹ 9,460 Special Price ₹ 4,919
48% Off ( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY

Main
range
TeSys

product name
TeSys LRD

product or component type
Differential thermal overload relay

device short name
LRD

relay application
Motor protection

product compatibility
LC1D80
LC1D95

network type
AC
DC

thermal protection adjustment range
48…65 A

[Ui] rated insulation voltage
Power circuit: 1000 V conforming to IEC 60947-4-1
Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL

Complementary
network frequency
0...400 Hz

mounting support
Plate, with specific accessories
Rail, with specific accessories
Under contactor

tripping threshold
1.14 +/- 0.06 Ir conforming to IEC 60947-4-1

[Ith] conventional free air thermal current
5 A for signalling circuit

permissible current
0.72 A at 500 V AC-15 for signalling circuit
0.06 A at 440 V DC-13 for signalling circuit

[Ue] rated operational voltage
690 V AC 0...400 Hz

[Uimp] rated impulse withstand voltage
6 kV

phase failure sensitivity
Tripping current 130 % of Ir on two phase, the last one at 0

control type
Red push-button: stop
Blue push-button: reset

temperature compensation
-20…60 °C

connections - terminals
Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end

tightening torque
Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 9 N.m - on screw clamp terminals

height
123 mm

width
75 mm

depth
121 mm

net weight
0.51 kg

Environment
protective treatment
TH conforming to IEC 60068

IP degree of protection
IP20 conforming to IEC 60529

ambient air temperature for operation
-20…60 °C without derating conforming to IEC 60947-4-1

ambient air temperature for storage
-60…70 °C

flame retardance
V1 conforming to UL 94

mechanical robustness
Vibrations: 6 Gn conforming to IEC 60068-2-6
Shocks: 15 Gn for 11 ms conforming to IEC 60068-2-7

dielectric strength
6 kV at 50 Hz conforming to IEC 60255-5

standards
CSA C22.2 No 14
UL 508
IEC 60947-5-1
EN 60947-5-1
ATEX D 94/9/CE
EN 60947-4-1
IEC 60947-4-1

product certifications
CCC
UL
ATEX INERIS
GL
LROS (Lloyds register of shipping)
BV
DNV
RINA
GOST
CSA
More Information
Product Name TeSys Thermal OVerload Relay - 48-65A
Range Name TeSys
Tax Class GST-18
