Panel socket angled PK PratiKa screw 32A
PKF32F735
₹ 1,968.00
₹ 1,141.44
Excl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
PKF32F735
Panel socket angled PK PratiKa screw 32A
| Seller | Price | Shipment | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free shipping on orders above ₹499
|
No sellers found for this product.
Out of stock
Panel socket angled PK PratiKa screw 32A
₹ 1,968.00
₹ 1,141.44
Description

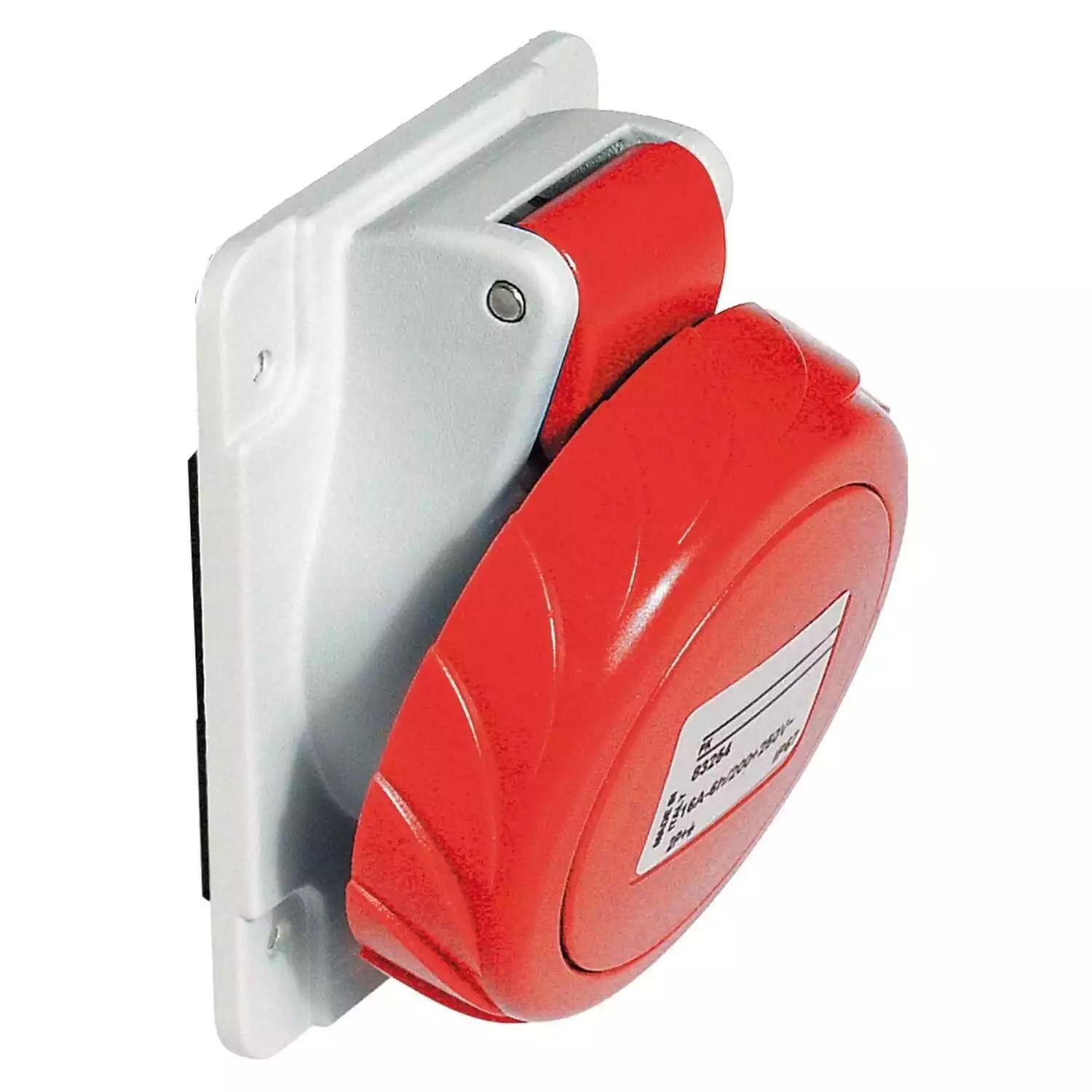

This Pratika industrial socket with captive screws connection is angled panel mounted. It has 3P+N+E poles, rated current is 32A and the operating voltage is 400VAC. The dimensions of the base plate are (W) 102mm x (H) 100mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm². The color of the socket is light grey (RAL 7035) with red easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Product Details
| Product Name | Panel socket angled PK PratiKa screw 32A |
|---|---|
| Range Name | Pratika |
| Tax Class | GST-18 |
