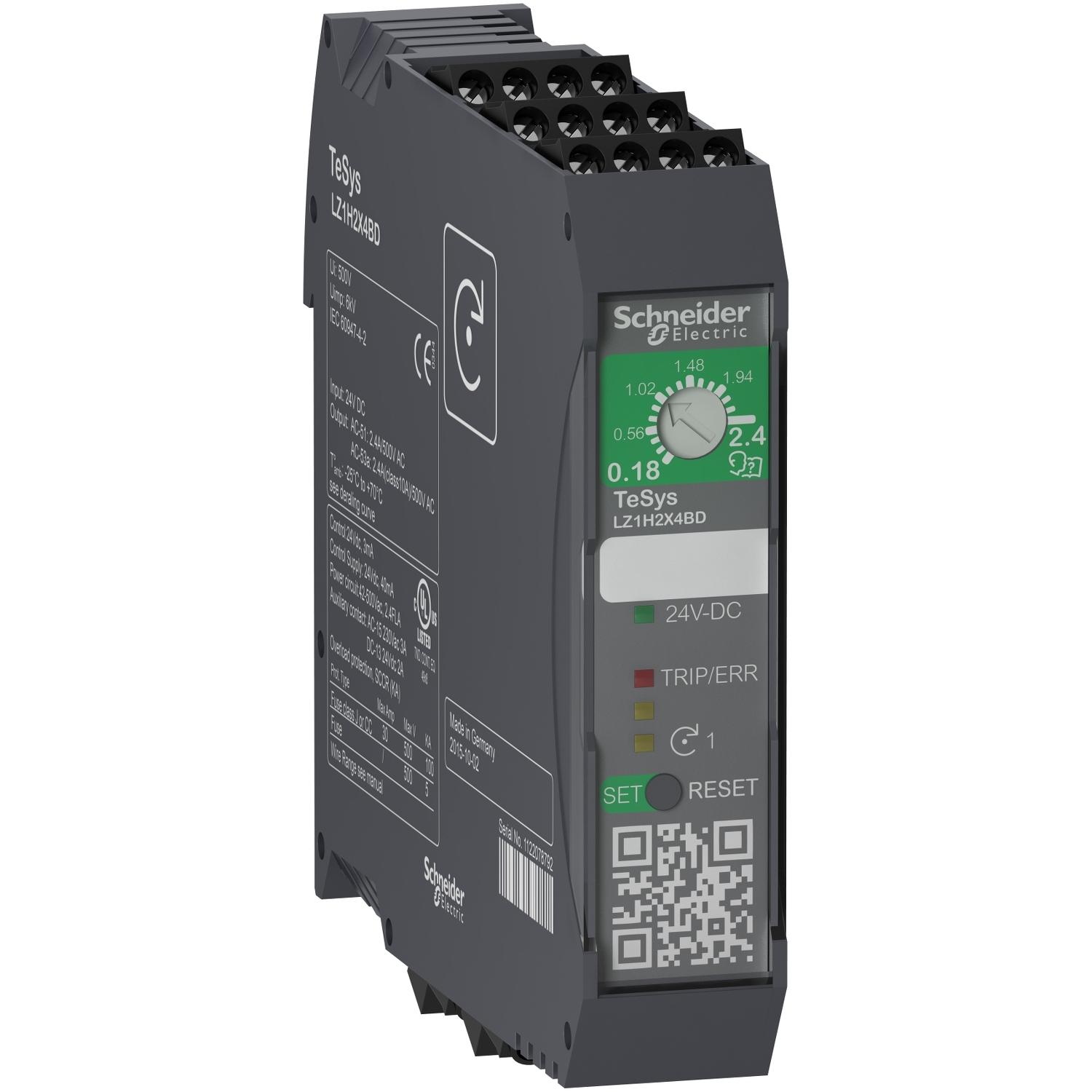

Starter Tesysh 0,75Kw-400V Control 24Vdc
SKU :
LZ1H2X4BD
Starter Tesysh 0,75Kw-400V Control 24Vdc
SKU: LZ1H2X4BD
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is in stock
Loading...
Further offers for this product
LZ1H2X4BD
Starter Tesysh 0,75Kw-400V Control 24Vdc
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Excl. Tax
Free shipping on orders above ₹499
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹ 50,475.00
₹ 21,199.50
Excl. Tax
To View the best prices please Sign in / Register.
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Starter Tesysh 0,75Kw-400V Control 24Vdc
₹ 50,475.00
₹ 21,199.50
- Specifications
- Environmental Data
- Documents
- Reviews
Overview
| Product Name | Starter Tesysh 0,75Kw-400V Control 24Vdc |
|---|---|
| Tax Class | GST-18 |
| Range | TESYS |
| Product name | TESYS HYBRID |
| Device short name | LZ1H |
| Product or component type | ULTRA-COMPACT STARTER |
| Motor starter type | DIRECT ON LINE |
| Poles description | 3P |
| [Ue] rated operational voltage | 500 V AC |
| [Ie] rated operational current | 2.4 A AT 500 V AC-512.4 A AT 500 V AC-53A2.4 A AT 500 V AC-51 MOUNTING SIDE BY SIDE2.4 A AT 500 V AC-53A MOUNTING SIDE BY SIDE |
| Thermal protection adjustment range | 0.18…2.4 A |
| Motor power kW | 0.37 KW AT 220 V AC 0.650.37 KW AT 230 V AC 0.650.75 KW AT 380 V AC 0.650.75 KW AT 400 V AC 0.650.75 KW AT 415 V AC 0.650.75 KW AT 440 V AC 0.651.1 KW AT 500 V AC 0.65 |
| Motor power hp | 0.5 HP AT 200 V AC0.5 HP AT 230 V AC1 HP AT 460 V AC |
| [Uc] control circuit voltage | 24 V DC |
| Thermal overload class | CLASS 10A CONFORMING TO IEC 60947-4-2 |
| Auxiliary contact composition | 1 C/O FAULT SIGNALLING |
| Control circuit voltage limits | 19.2...30 V DC |
| Reset | MANUALAUTOMATIC RESETELECTRICAL RESET |
| Electrical durability | 30 MCYCLES |
| Maximum operating rate | 120 CYC/MN AC-51 50 % ON6 CYC/MN AC-53A 50 % ON |
| Mounting mode | BY CLIPS |
| Mounting support | DIN RAIL |
| Connections - terminals | SCREW CLAMP TERMINALS 1 CABLE(S) 0.2…2.5 MM² - RIGIDSCREW CLAMP TERMINALS 1 CABLE(S) 0.25…2.5 MM² - FLEXIBLE - WITH CABLE ENDSCREW CLAMP TERMINALS 1 CABLE(S) 0.2…2.5 MM² - FLEXIBLE - WITHOUT CABLE END |
| Tightening torque | 0.5…0.6 N.M FLAT Ø 2.5 MM SCREWDRIVER 3 MM |
| Certifications | CECULUS |
| Standards | IEC 60947-4-2UL 60947-4-1 |
| [Ui] rated insulation voltage | 500 V AC 50/60 HZ |
| [Uimp] rated impulse withstand voltage | 6 KV |
| Pollution degree | 2 |
| Width | 22.5 MM |
| Height | 99 MM |
| Depth | 114.5 MM |
| Product weight | 212 G |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…70 °C WITHOUT DERATING |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.500 CM |
| Package 1 Width | 11.700 CM |
| Package 1 Length | 12.000 CM |
| Package 1 Weight | 237.000 G |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15.000 CM |
| Package 2 Width | 15.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 2.580 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Toxic heavy metal free | ✓ |
| Mercury free | ✓ |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| SCIP Number | 7bbe12ea-c2b0-4258-881b-998147fc2e25 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
