Thermal overload relay LR9G 225A push-in
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
TeSys Giga Electronic Relays
TeSys Giga electronic relays to protect motors up to 630A, has been reimagined with the latest smart digital innovations to deliver a simpler, more sustainable, safe and secure customer experience for panel builders, consulting engineers, system integrators, facility managers and original equipment manufacturers.
Precision You Trust
TeSys Giga Protection Relay delivers highly accurate current settings. Visual indicators for motor status, overload alarms, and internal faults simplify diagnostics, helping you detect issues early and reduce unplanned downtime.
Advanced Fault Protection
Comprehensive motor safeguarding with built-in overload, ground fault, and phase imbalance protection, and reliable performance even in hazardous conditions, keeping your operations safe and compliant.
Efficient Design
From direct integration with TeSys Giga Contactors to flexible reset and protection options, configuration is fast and intuitive. Its eco-friendly design features recyclable packaging and laser-etched labeling, combining sustainability with smart engineering.
Enhance your power solutions with our extensive range of accessories

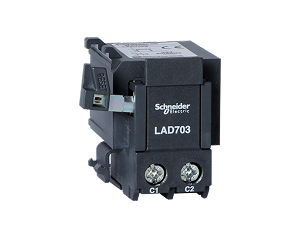

Remote electrical stop

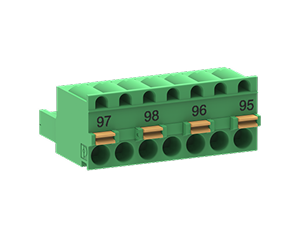

Terminal block

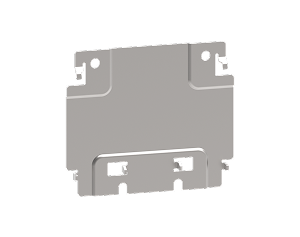

Mounting base
Gain peace of mind, quality, and value for your installations
Powerfully Smart. Perfectly Compact.
TeSys Giga is a next-generation motor control solution designed for high performance, compactness, and smart functionality. It enhances reliability by up to 90%, reduces downtime, and simplifies installation and maintenance with modular design and fewer product references.
Equipped with advanced diagnostics, wide control options, and EcoStruxure readiness, it supports a wide range of industrial and infrastructure applications, making it a future-ready choice for efficient and resilient motor management.
Easy configuration
Lorem Ipsum is simply dummy text of the printing and
Direct mount
Lorem Ipsum is simply dummy text of the printing and
Dial adjustment
Lorem Ipsum is simply dummy text of the printing and
Overview
| Product Name | Thermal overload relay LR9G 225A push-in |
|---|---|
| Tax Class | GST-18 |
| Country of Origin | China |
| Manufacturer | Schneider Electric |
| Short Description | Estimated delivery: Shipped within 5 to 7 Days |
| Range | TESYS |
| Product name | TESYS LRG |
| Product or component type | ELECTRONIC THERMAL OVERLOAD RELAY |
| Device short name | LR9G |
| Relay application | MOTOR PROTECTION |
| Network type | AC |
| Thermal overload class | CLASS 5E...30E CONFORMING TO IEC 60947-4-1 |
| Thermal protection adjustment range | 57…225 A |
| Network frequency | 30...60 HZ100 HZ |
| Overvoltage category | III |
| Tripping threshold | 1.125 +/- 0.07 IN CONFORMING TO IEC 60947-4-1 |
| Protection type | GROUND FAULT PROTECTION - TRIPPING TIME ADJUSTMENT: 0…1 S - FOR ALARM CIRCUIT CONFORMING TO IEC 60947-4-1GROUND FAULT PROTECTION - TRIPPING TIME ADJUSTMENT: 0…1 S - FOR ALARM CIRCUIT CONFORMING TO UL 60947-4-1PHASE LOSS - TRIPPING TIME ADJUSTMENT: 0…4 S - FOR ALARM CIRCUITPHASE IMBALANCE - TRIPPING TIME ADJUSTMENT: 0…5 S - FOR ALARM CIRCUIT CONFORMING TO IEC 60947-4-1PHASE IMBALANCE - TRIPPING TIME ADJUSTMENT: 0…5 S - FOR ALARM CIRCUIT CONFORMING TO UL 60947-4-1 |
| Local signalling | LEDTRIP INDICATOR |
| Contacts type and composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A |
| [Uc] control circuit voltage | 24...500 V AC 50/60 HZ24...250 V DC |
| [Ue] rated operational voltage | 1000 V AC 50/60 HZ |
| [Uimp] rated impulse withstand voltage | 8 KV |
| Reset | AUTOMATIC RESETMANUAL |
| Mechanical durability | 7000 CYCLES |
| Surge withstand | 4 KV |
| Electromagnetic compatibility | EMC IMMUNITY CONFORMING TO IEC 60947-4-1EMISSION TESTS CRITERIA A CONFORMING TO IEC 60947-4-1IMMUNITY TO RADIATED RADIO-ELECTRICAL INTERFERENCE - TEST LEVEL: 20 V/M CONFORMING TO EN/IEC 61000-4-3VOLTAGE DIPS AND INTERRUPTIONS IMMUNITY TEST CONFORMING TO SEMI F47 |
| Connections - terminals | POWER CIRCUIT: BAR - BUSBAR CROSS SECTION: 25 X 6 MMPOWER CIRCUIT: LUGS-RING TERMINALS 1 185 MM²CONTROL CIRCUIT: PUSH-IN 1 0.2…2.5 MM² - CABLE STIFFNESS: SOLID STRANDED WITHOUT CABLE ENDCONTROL CIRCUIT: PUSH-IN 1 0.25…2.5 MM² - CABLE STIFFNESS: FLEXIBLE WITH CABLE ENDCONTROL CIRCUIT: PUSH-IN 2 0.5…1.0 MM² WITH CABLE END |
| Tightening torque | 18 N.M |
| Mounting support | DIRECT ON CONTACTORPLATE |
| Standards | EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1CSA C22.2 NO 60947-4-1JIS C8201-4-1JIS C8201-5-1IEC 60335-1:CLAUSE 30.2IEC 60335-2-40:ANNEX JJUL 60335-2-40:ANNEX JJUL 60335-1 |
| Product certifications | CB SchemeCCCcULusUKCAATEXEU-RO-MR by DNV-GLEAC |
| IP degree of protection | IP2X FRONT FACE WITH SHROUDS CONFORMING TO IEC 60529IP2X FRONT FACE WITH SHROUDS CONFORMING TO VDE 0106 |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Permissible ambient air temperature around the device | -40…60 °C AT UC |
| Adjustment of dial setting | -25…60 °C |
| Mechanical robustness | VIBRATIONS 5…300 HZ 6 GN CONTACTOR OPENSHOCKS 15 GN 11 MS CONTACTOR CLOSED |
| Height | 107 MM |
| Width | 105 MM |
| Depth | 126 MM |
| Product weight | 0.8 KG |
| Colour | DARK GREY |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.000 CM |
| Package 1 Width | 20.000 CM |
| Package 1 Length | 21.000 CM |
| Package 1 Weight | 1.425 KG |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.000 CM |
| Package 2 Width | 30.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 3.383 KG |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 16 |
| Package 3 Height | 75.000 CM |
| Package 3 Width | 60.000 CM |
| Package 3 Length | 80.000 CM |
| Package 3 Weight | 35.624 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| Halogen-free status | Halogen free plastic parts product |
| PVC free | Yes |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Recyclability potential, in % | 42 |
| Total lifecycle Carbon footprint | 223 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 14.8607648604244 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 15 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.2420705189143047 |
| Carbon footprint of the distribution phase [A4] | 0.2 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.050884093084178 |
| Carbon footprint of the installation phase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 205.7033000544477 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 206 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 2.380924036454045 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 2 kg CO2 eq. |
| SCIP Number | 958748fb-37b2-4e37-985e-0763521c22ab |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
