HeatTag Smart Sensor Cable Overheating
SKU :
SMT10020
HeatTag Smart Sensor Cable Overheating
SKU:
SMT10020
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is in stock
Loading...
Further offers for this product
SMT10020
HeatTag Smart Sensor Cable Overheating
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Excl. Tax
Free shipping on orders above ₹499
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹ 64,390.00
₹ 57,951.00
Excl. Tax
To View the best prices please Sign in / Register.
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
No of Modules
Color
HeatTag Smart Sensor Cable Overheating
₹ 64,390.00
₹ 57,951.00
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description

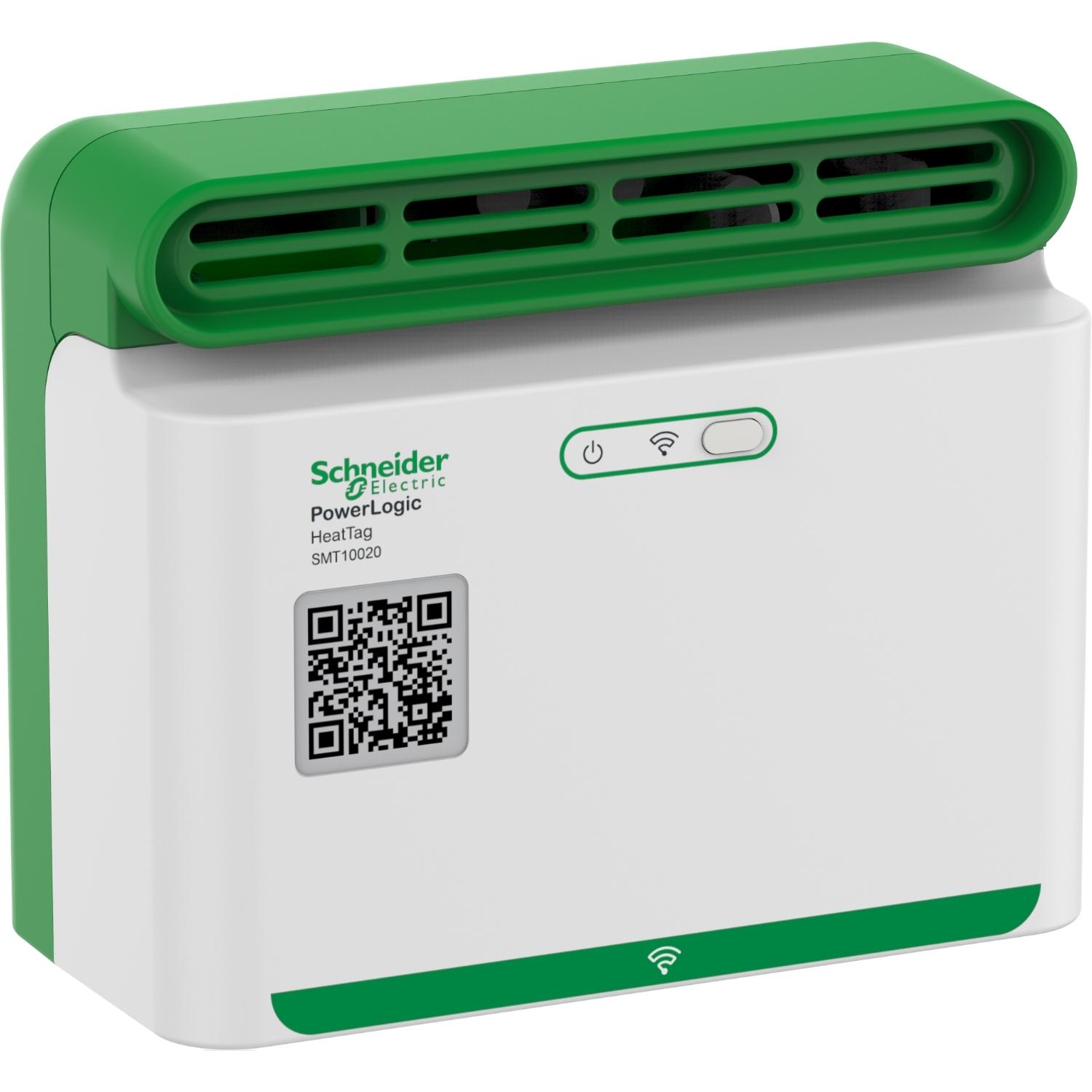

PowerLogic HeatTag, smart sensor for cable overheating detection
Overview
| Product Name | HeatTag Smart Sensor Cable Overheating |
|---|---|
| Tax Class | GST-18 |
| Range | POWERLOGIC |
| Range of product | POWERLOGIC HEATTAG |
| Product or component type | HEAT DETECTOR |
| Range compatibility | PRISMASET WIRELESS PANEL SERVERECOSTRUXURE DATA CONCENTRATORPOWERLOGIC POWERTAG |
| Device application | ELECTRICAL SWITCHBOARD |
| Function available | OVERHEATING DETECTION OF CABLES AND WIRE CONNECTIONSOVERHEATING DETECTION BASED ON THE ANALYSE OF GAS AND PARTICLES IN THE AIR3 LEVELS OF ALERT ACCORDING TO THE SEVERITY OF THE SITUATIONENVIRONMENT AUTO-LEARNING TO AVOID FALSE ALERTSWIRELESS COMMUNICATION WITH ALL ECOSTRUXURE DATA CONCENTRATORS |
| sensor technology | ELECTRONIC |
| Type of measurement | TEMPERATURE, RANGE: - 15...70 °C, ACCURACY: +/- 1.1 °CHUMIDITY, RANGE: 15...90 % RH, ACCURACY: +/- 9 %AIR QUALITY INDEX, RANGE: 0...10 AQI |
| transmission period | 30 S (BY DEFAULT)> 30 S (HIGH DATA TRAFFIC) |
| alarm level | AIR QUALITY INDEX >= 10 |
| Communication network type | WIRELESS - 2.4 GHZ |
| Standards | IEC 61010-1IEC 61010-2-201IEC 61326-1ETSI EN 300 328ETSI EN 301 489-1ETSI EN 301 489-17IEEE 802.15.4FCC PART 15 SUBPART BFCC PART 15 SUBPART CUL 61010-1CSA C22.2 NO 61010-1 |
| [Us] rated supply voltage | 110...277 V AC AT 50/60 HZ, SINGLE PHASE |
| Supply voltage limits | 110…277 V (+/- 15 %) |
| Maximum supply current | 0.1 A |
| Overvoltage category | III |
| Control type | 1 PUSH-BUTTON (SENSOR PAIRING/ALERT ACKNOWLEDGEMENT) |
| Local signalling | NETWORK STATUS: 1 LED (GREEN, ORANGE AND RED)OPERATING: 1 LED (GREEN, ORANGE AND RED) |
| Device location in system | TOP OF THE SWITCHBOARDNON FORCED AIR VENTILATED SWITCHBOARD |
| Mounting support | DIN RAIL |
| Protection type | CIRCUIT BREAKER 2 A CURVE C |
| Electrical connection | 2 PIN(S)REMOVABLE SPRING TERMINAL BLOCK 2.5 MM² RIGID OR FLEXIBLE |
| Quantity per set | 1 |
| Height | 107 MM |
| Width | 108 MM |
| Depth | 55 MM |
| Product weight | 0.27 KG |
| Ambient air temperature for storage | -20…85 °C |
| Ambient air temperature for operation | -15…70 °C |
| Operating altitude | 0...2000 M |
| Relative humidity | 15…90 % |
| IP degree of protection | IP20 |
| IK degree of protection | IK06 |
| Pollution degree | 3 |
| Electromagnetic compatibility | EMC IMMUNITY CONFORMING TO IEC 61326-1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.300 CM |
| Package 1 Width | 9.500 CM |
| Package 1 Length | 11.600 CM |
| Package 1 Weight | 292.800 G |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 14 |
| Package 2 Height | 15.000 CM |
| Package 2 Width | 30.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 4.399 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| Halogen-free status | Halogen free plastic parts product |
| PVC free | Yes |
| Silicone-free | Yes |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Recyclability potential, in % | 1 |
| Total lifecycle Carbon footprint | 1 090 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 94.659 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 95 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.083019 |
| Carbon footprint of the distribution phase [A4] | 0.1 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.054997 |
| Carbon footprint of the installation phase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 994.55 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 995 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.55878 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.6 kg CO2 eq. |
| SCIP Number | 4981ed74-eedf-4d4d-920e-f7100d9c76e4 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
