EasyPact 400A,36kA,4PoleMCCB

Share
In stock
SKU
LV540309
Regular Price ₹ 45,880 Special Price ₹ 21,793
53% Off ( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY

Main
range of product
Easypact CVS400...630

product or component type
Circuit breaker

device short name
CVS400F

device application
Distribution

poles description
4P

protected poles description
3d

neutral position
Left

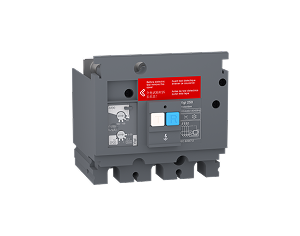

Earth leakage protection (Vigi add on)
Without

[In] rated current
400 A at 40 °C

breaking capacity code
F

network type
AC

[Icu] Breaking capacity
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2

utilisation category
Category A

trip unit name
TM-D

trip unit technology
Thermal-magnetic

trip unit rating
400 A at 40 °C

protection type
Short-circuit protection (magnetic)
Overload protection (thermal)

Complementary
network frequency
50/60 Hz

control type
Toggle

mounting mode
Fixed

mounting support
Backplate

upside connection
Front

downside connection
Front

connections - terminals
Screw connection

[Uimp] rated impulse withstand voltage
8 kV conforming to EN/IEC 60947-2

thermal protection adjustment range
280…400 A

[Ics] rated service breaking capacity
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
23 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2

mechanical durability
15000 cycles

electrical durability
6000 cycles 415 V In conforming to IEC 60947-2

connection pitch
45 mm

contact position indicator
Yes

neutral protection setting
No protection (3d)

long time pick-up adjustment type Ir
Adjustable

long time pick-up adjustment range
0.7...1 x In

long time delay adjustment type
Fixed

instantaneous pick-up adjustment type Ii
Adjustable

instantaneous pick-up adjustment range
5...10 x In

height
255 mm

width
185 mm

depth
110 mm

net weight
6.3 kg

Environment
electrical shock protection class
Class II

standards
EN 60947-2
IEC 60947-2

product certifications
GOST
IEC

IP degree of protection
IP40

pollution degree
3 conforming to IEC 60664-1

ambient air temperature for operation
-25…70 °C

ambient air temperature for storage
-50…85 °C

Country of Origin: India

More Information
Product Name EasyPact 400A,36kA,4PoleMCCB
Range Name EasyPact CVS
Tax Class GST-18
Current Rating 400A
Number of Poles 4P
Breaking Capacity 36kA
Color White
