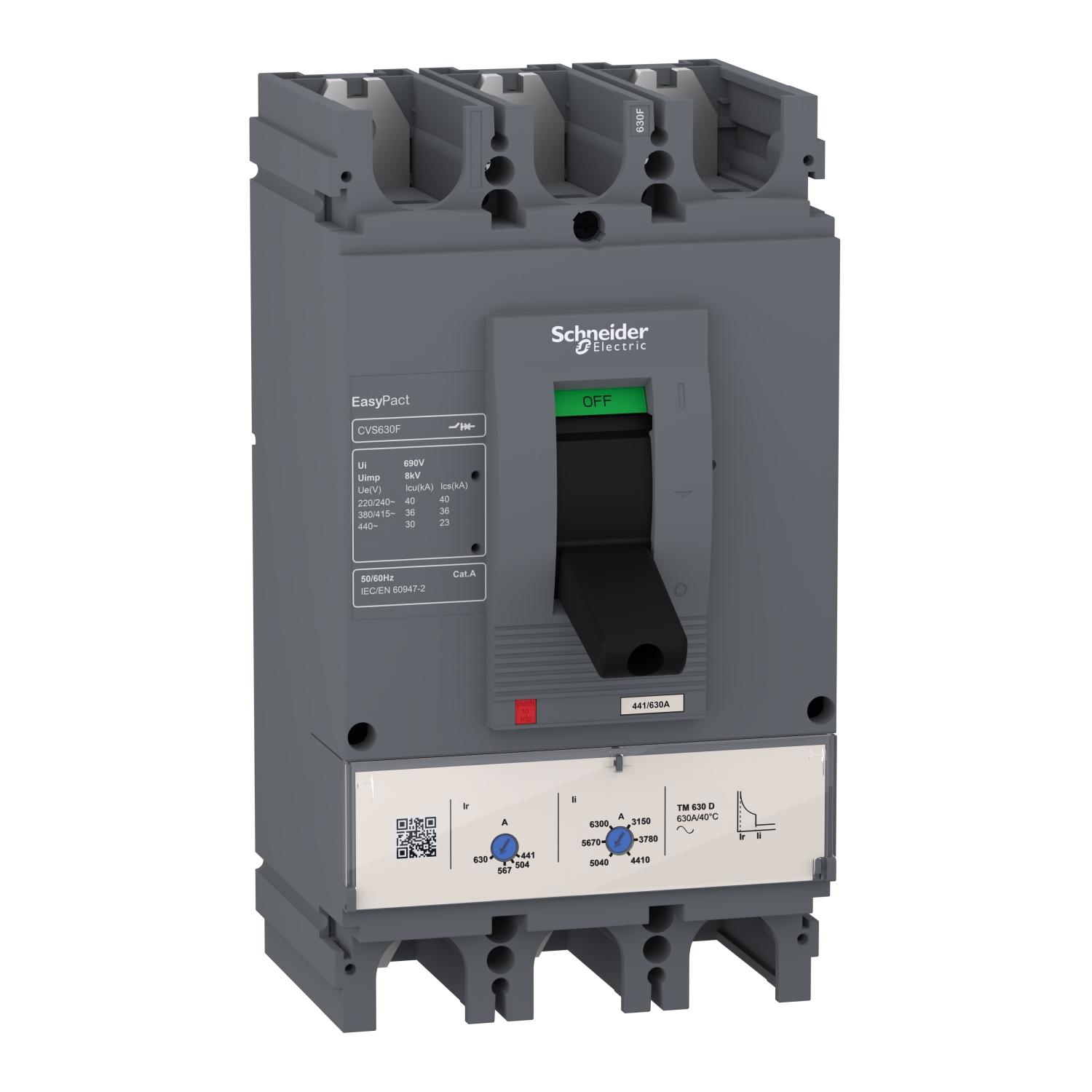

Easypact 400A, 36Ka, 3Pole Mccb
Images:
Image 360:
How to video:
Further offers for this product
Excl. GST Tax
In Stock
No sellers found for this product.
Excl. GST Tax
Easypact 400A, 36Ka, 3Pole Mccb
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
EasyPact CVS MCCB
EasyPact CVS Molded Case Circuit Breakers with adjustable settings, rated from 100A to 630A is designed to meet the requirements of the majority of common protection applications in small to medium-sized buildings and delivers a high level of performance and cost-saving functionality.
Reliability
The double break mechanism ensures high fault current limitation and robust protection. With high endurance and Vigi module, it offers reliable earth leakage protection for safety.
Simplicity
Only three frame sizes up to 630A, standard snap-fit accessories, and the same footprint as ComPacT MCCBs for easy retrofitting and system upgrades.
Safety
It is suitable for isolation per IEC 60947-2. The Class II front face fits Class II switchboards without insulation downgrade. Key locks ensure safety by locking the breaker in the OFF position.
Enhance your power solutions with our extensive range of accessories
Earth leakage protection
Direct rotary handle
Auxiliary contact
Gain peace of mind, quality, and value for your installations
Gain peace of mind, quality, and value for your installations
Experience unparalleled reliability and efficiency with Schneider Electric's EasyPact CVS circuit breakers. These circuit breakers offer a comprehensive range of benefits that ensure optimal performance and safety.
Their modular design allows for easy installation and scalability, making them ideal for a wide range of applications, from industrial to commercial settings. Additionally, the intuitive interface and robust construction of EasyPact CVS circuit breakers ensure long-lasting durability and user-friendly operation.
Choose EasyPact CVS for a smart, reliable, and cost-effective solution to your electrical protection needs.
High Fault Protection
Lorem Ipsum is simply dummy text of the printing and
Modular Design
Lorem Ipsum is simply dummy text of the printing and
Enhanced Safety
Lorem Ipsum is simply dummy text of the printing and
Overview
| Product Name | Easypact 400A, 36Ka, 3Pole Mccb |
|---|---|
| Tax Class | GST-18 |
| Current Rating | 400A |
| Number of Poles | 3P |
| Short Description | Estimated delivery: Shipped within 5 to 7 Days |
| Range | EASYPACT |
| Range of product | EASYPACT CVS400...630 |
| Product name | EASYPACT CVS |
| Device short name | CVS400F |
| Product or component type | CIRCUIT BREAKER |
| Device application | DISTRIBUTION |
| Poles description | 3P |
| Protected poles description | 3D |
| Earth leakage protection (Vigi add on) | WITHOUT |
| [In] rated current | 400 A AT 40 °C |
| Network type | AC |
| Utilisation category | CATEGORY A |
| [Icu] Breaking capacity | 40 KA ICU AT 220/240 V AC 50/60 HZ CONFORMING TO IEC 60947-236 KA ICU AT 380/415 V AC 50/60 HZ CONFORMING TO IEC 60947-230 KA ICU AT 440 V AC 50/60 HZ CONFORMING TO IEC 60947-2 |
| Trip unit name | TM-D |
| Trip unit technology | THERMAL-MAGNETIC |
| Trip unit rating | 400 A AT 40 °C |
| Protection type | SHORT-CIRCUIT PROTECTION (MAGNETIC)OVERLOAD PROTECTION (THERMAL) |
| [Uimp] rated impulse withstand voltage | 8 KV CONFORMING TO EN/IEC 60947-2 |
| Network frequency | 50/60 HZ |
| Breaking capacity code | F |
| [Ics] rated service breaking capacity | 40 KA AT 220/240 V AC 50/60 HZ CONFORMING TO IEC 60947-236 KA AT 380/415 V AC 50/60 HZ CONFORMING TO IEC 60947-223 KA AT 440 V AC 50/60 HZ CONFORMING TO IEC 60947-2 |
| Mechanical durability | 15000 CYCLES |
| Electrical durability | 6000 CYCLES 415 V IN CONFORMING TO IEC 60947-2 |
| Control type | TOGGLE |
| Thermal protection adjustment range | 280…400 A |
| Long time pick-up adjustment type Ir | ADJUSTABLE |
| Long time pick-up adjustment range | 0.7...1 X IN |
| Long time delay adjustment type | FIXED |
| Instantaneous pick-up adjustment type Ii | ADJUSTABLE |
| Instantaneous pick-up adjustment range | 5...10 X IN |
| Contact position indicator | YES |
| Mounting support | BACKPLATE |
| Mounting mode | FIXED |
| Upside connection | FRONT |
| Downside connection | FRONT |
| Connections - terminals | SCREW CONNECTION |
| Connection pitch | 45 MM |
| Compatibility code | CVS400 |
| Width | 140 MM |
| Depth | 110 MM |
| Height | 255 MM |
| Product weight | 4.7 KG |
| Standards | EN 60947-2IEC 60947-2 |
| Product certifications | GOSTIEC |
| Electrical shock protection class | CLASS II |
| Pollution degree | 3 CONFORMING TO IEC 60664-1 |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.000 CM |
| Package 1 Width | 16.000 CM |
| Package 1 Length | 29.000 CM |
| Package 1 Weight | 4.931 KG |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 30.000 CM |
| Package 2 Width | 40.000 CM |
| Package 2 Length | 60.000 CM |
| Package 2 Weight | 15.443 KG |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 12 |
| Package 3 Height | 45.000 CM |
| Package 3 Width | 80.000 CM |
| Package 3 Length | 120.000 CM |
| Package 3 Weight | 73.772 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| PVC free | Yes |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Recyclability potential, in % | 53 |
| Total lifecycle Carbon footprint | 1 074 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 30.854 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 31 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.61661 |
| Carbon footprint of the distribution phase [A4] | 0.6 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.66106 |
| Carbon footprint of the installation phase [A5] | 0.7 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 1032.3 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 1 032 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 9.7761 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 10 kg CO2 eq. |
| SCIP Number | C622fd85-96e4-4086-85a0-8be61a4b5d6b |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
