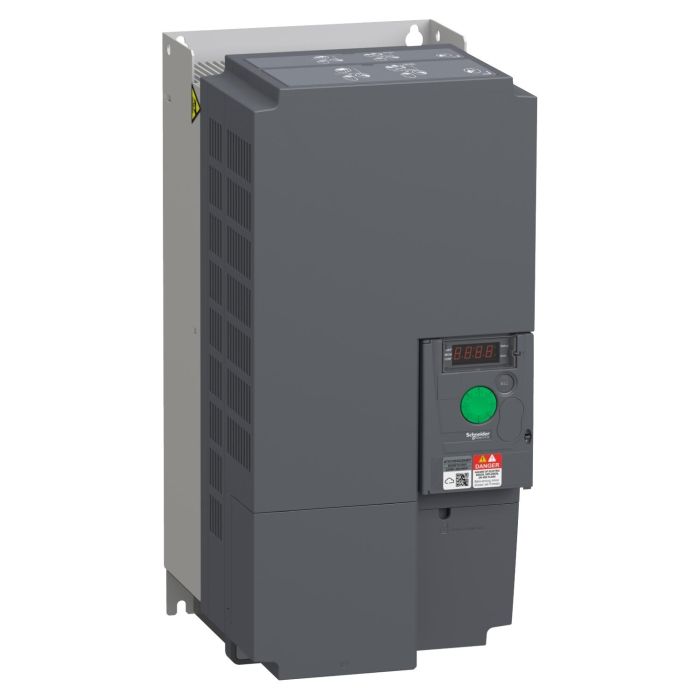

variable speed drive, Easy Altivar 310, heavy duty, 22kW, 30hp, normal duty, 30kW, 40hp, 380 to 460V, C3 EMC embedded

Name: variable speed drive, Easy Altivar 310, heavy duty, 22kW, 30hp, normal duty, 30kW, 40hp, 380 to 460V, C3 EMC embedded
Brand: Schneider Electric
SKU: ATV310HD22N4EF
Price: 73808.00 INR
Availability: InStock
Rating: 4 (25 reviews)

Be the first one to review this.

SKU :

ATV310HD22N4EF

variable speed drive, Easy Altivar 310, heavy duty, 22kW, 30hp, normal duty, 30kW, 40hp, 380 to 460V, C3 EMC embedded SKU: ATV310HD22N4EF

Excl. GST Tax

To View the best prices please Sign in / Register.

Estimated delivery: Timelines may vary based on availability

Minimum quantity allowed :

Product Name	variable speed drive, Easy Altivar 310, heavy duty, 22kW, 30hp, normal duty, 30kW, 40hp, 380 to 460V, C3 EMC embedded
Tax Class	GST-18
Rated Supply voltage	380-460 V
Country of Origin	India
Manufacturer	Schneider Electric
Range of product	EASY ALTIVAR 310
Product or component type	VARIABLE SPEED DRIVE
Product specific application	SIMPLE MACHINE
Assembly style	WITH HEAT SINK
Device short name	ATV310
Network number of phases	THREE PHASE
[Us] rated supply voltage	380...460 V - 15...10 %
Motor power kW	22 KW FOR HEAVY DUTY30 KW FOR NORMAL DUTY
Motor power hp	30 HP FOR HEAVY DUTY40 HP FOR NORMAL DUTY
Noise level	50 DB
Quantity per set	SET OF 1
EMC filter	INTEGRATED
Type of cooling	INTEGRATED FAN
Communication port protocol	MODBUS
Connector type	RJ45 (ON FRONT FACE) FOR MODBUS
Physical interface	2-WIRE RS 485 FOR MODBUS
Transmission frame	RTU FOR MODBUS
Transmission rate	4800 BIT/S9600 BIT/S19200 BIT/S38400 BIT/S
Number of addresses	1…247 FOR MODBUS
Communication service	READ HOLDING REGISTERS (03) 29 WORDSWRITE SINGLE REGISTER (06) 29 WORDSWRITE MULTIPLE REGISTERS (16) 27 WORDSREAD/WRITE MULTIPLE REGISTERS (23) 4/4 WORDSREAD DEVICE IDENTIFICATION (43)
Line current	64.2 A AT 380 V (HEAVY DUTY)71.2 A AT 380 V (NORMAL DUTY)53.2 A AT 460 V (HEAVY DUTY)59.2 A AT 460 V (NORMAL DUTY)
Apparent power	46.2 KVA AT 460 V (HEAVY DUTY)47 KVA AT 460 V (NORMAL DUTY)
Prospective line Isc	22 KA ( HEAVY DUTY )5 KA ( NORMAL DUTY )
Continuous output current	46 A HEAVY DUTY60 A NORMAL DUTY
Maximum transient current	69 A DURING 60 S (HEAVY DUTY)66 A DURING 60 S (NORMAL DUTY)
Power dissipation in W	568.8 W, AT IN (HEAVY DUTY)735.6 W, AT IN (NORMAL DUTY)
Speed drive output frequency	0.5…400 HZ
Nominal switching frequency	4 KHZ
Switching frequency	2...12 KHZ ADJUSTABLE
Speed range	1…20 FOR ASYNCHRONOUS MOTOR
Transient overtorque	170…200 % OF NOMINAL MOTOR TORQUE DEPENDING ON DRIVE RATING AND TYPE OF MOTOR
Braking torque	UP TO 150 % OF NOMINAL MOTOR TORQUE WITH BRAKING RESISTORUP TO 70 % OF NOMINAL MOTOR TORQUE WITHOUT BRAKING RESISTOR
Asynchronous motor control profile	VOLTAGE/FREQUENCY RATIO (V/F)VOLTAGE/FREQUENCY RATIO - ENERGY SAVING, QUADRATIC U/FSENSORLESS VECTOR CONTROL (SVC)
Motor slip compensation	ADJUSTABLE
Output voltage	380...460 V THREE PHASE
Electrical connection	TERMINAL, CLAMPING CAPACITY: 25...35 MM², 3 AWG...2 AWG (L1, L2, L3, PA/+, PB, U, V, W)
Tightening torque	2.2…2.4 N.M
Insulation	ELECTRICAL BETWEEN POWER AND CONTROL
Supply	INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER: 5 V (4.75…5.25 V)DC,
Analogue input number	1
Analogue input type	CONFIGURABLE CURRENT AI1 0...20 MA 250 OHMCONFIGURABLE VOLTAGE AI1 0...10 V 30 KOHMCONFIGURABLE VOLTAGE AI1 0...5 V 30 KOHM
Discrete input number	4
Discrete input type	PROGRAMMABLE LI1...LI4 24 V 18...30 V
Discrete input logic	NEGATIVE LOGIC (SINK), > 16 V (STATE 0), < 10 V (STATE 1), INPUT IMPEDANCE 3.5 KOHMPOSITIVE LOGIC (SOURCE), 0...< 5 V (STATE 0), > 11 V (STATE 1)
Sampling duration	10 MS FOR ANALOGUE INPUT20 MS, TOLERANCE +/- 1 MS FOR LOGIC INPUT
Linearity error	+/- 0.3 % OF MAXIMUM VALUE FOR ANALOGUE INPUT
Analogue output number	1
Analogue output type	AO1 SOFTWARE-CONFIGURABLE VOLTAGE: 0...10 V AC 0...10 V 0…0.02 A, IMPEDANCE: 470 OHM, RESOLUTION 8 BITSAO1 SOFTWARE-CONFIGURABLE CURRENT: 0...20 MA, IMPEDANCE: 800 OHM, RESOLUTION 8 BITS
Discrete output number	2
Discrete output type	LOGIC OUTPUT LO+, LO-PROTECTED RELAY OUTPUT R1A, R1B, R1C 1 C/O
Minimum switching current	5 MA AT 24 V DC FOR LOGIC RELAY
Maximum switching current	2 A AT 250 V AC ON INDUCTIVE LOAD COS PHI = 0.4 L/R = 7 MS FOR LOGIC RELAY2 A AT 30 V DC ON INDUCTIVE LOAD COS PHI = 0.4 L/R = 7 MS FOR LOGIC RELAY3 A AT 250 V AC ON RESISTIVE LOAD COS PHI = 1 L/R = 0 MS FOR LOGIC RELAY4 A AT 30 V DC ON RESISTIVE LOAD COS PHI = 1 L/R = 0 MS FOR LOGIC RELAY
Acceleration and deceleration ramps	LINEAR FROM 0...999.9 SSU
Braking to standstill	BY DC INJECTION,
Protection type	LINE SUPPLY OVERVOLTAGELINE SUPPLY UNDERVOLTAGEOVERCURRENT BETWEEN OUTPUT PHASES AND EARTHOVERHEATING PROTECTIONSHORT-CIRCUIT BETWEEN MOTOR PHASESAGAINST INPUT PHASE LOSS IN THREE-PHASETHERMAL MOTOR PROTECTION VIA THE DRIVE BY CONTINUOUS CALCULATION OF I²T
Frequency resolution	ANALOG INPUT: CONVERTER A/D, 10 BITSDISPLAY UNIT: 0.1 HZ
Time constant	20 MS +/- 1 MS FOR REFERENCE CHANGE
Operating position	VERTICAL +/- 10 DEGREE
Height	390 MM
Width	180 MM
Depth	212 MM
Net weight	9.7 KG
Supply frequency	50/60 HZ +/- 5 %
Product destination	ASYNCHRONOUS MOTORS
Electromagnetic compatibility	ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST - TEST LEVEL: LEVEL 4 CONFORMING TO IEC 61000-4-4ELECTROSTATIC DISCHARGE IMMUNITY TEST - TEST LEVEL: LEVEL 3 CONFORMING TO IEC 61000-4-2IMMUNITY TO CONDUCTED DISTURBANCES - TEST LEVEL: LEVEL 3 CONFORMING TO IEC 61000-4-6RADIATED RADIO-FREQUENCY ELECTROMAGNETIC FIELD IMMUNITY TEST - TEST LEVEL: LEVEL 3 CONFORMING TO IEC 61000-4-3VOLTAGE DIPS AND INTERRUPTIONS IMMUNITY TEST CONFORMING TO IEC 61000-4-11SURGE IMMUNITY TEST - TEST LEVEL: LEVEL 3 CONFORMING TO IEC 61000-4-5
Standards	IEC 61800-5-1IEC 61800-3
Product certifications	CEEACKC
IP degree of protection	IP20 WITHOUT BLANKING PLATE ON UPPER PARTIP4X TOP
Pollution degree	2 CONFORMING TO IEC 61800-5-1
Environmental characteristic	DUST POLLUTION RESISTANCE CLASS 3S2 CONFORMING TO IEC 60721-3-3CHEMICAL POLLUTION RESISTANCE CLASS 3C3 CONFORMING TO IEC 60721-3-3
Shock resistance	15 GN CONFORMING TO IEC 60068-2-27 FOR 11 MS
Relative humidity	5…95 % WITHOUT CONDENSATION CONFORMING TO IEC 60068-2-35…95 % WITHOUT DRIPPING WATER CONFORMING TO IEC 60068-2-3
Ambient air temperature for storage	-25…70 °C
Ambient air temperature for operation	-10…55 °C WITHOUT DERATING55…60 °C PROTECTIVE COVER FROM THE TOP OF THE DRIVE REMOVED WITH CURRENT DERATING 2.2 % PER °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	30.000 CM
Package 1 Width	40.000 CM
Package 1 Length	60.000 CM
Package 1 Weight	10.700 KG
Unit Type of Package 2	P12
Number of Units in Package 2	12
Package 2 Height	105.000 CM
Package 2 Width	80.000 CM
Package 2 Length	120.000 CM
Package 2 Weight	148.212 KG
Warranty (in months)	18

Sustainability	Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations.
Sustainable packaging	✓
Take-back	No
Mercury free	✓
Environmental Disclosure	Product Environmental Profile (Download)
End of life manual availability	End of Life Information (Download)
Recyclability potential, in %	23
Total lifecycle Carbon footprint	22 888 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]	340.2640814372333
Carbon footprint of the manufacturing phase [A1 to A3]	340 kg CO2 eq.
Carbon footprint of the distribution phase [A4]	1.098847287420431
Carbon footprint of the distribution phase [A4]	1 kg CO2 eq.
Carbon footprint of the installation phase [A5]	3.053554671187165
Carbon footprint of the installation phase [A5]	3 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]	22517.76680989159
Carbon footprint of the use phase [B2, B3, B4, B6]	22 518 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4]	25.37200142801813
Carbon footprint of the end-of-life phase [C1 to C4]	25 kg CO2 eq.
SCIP Number	5b939136-3ce6-4efd-8751-a5f6e107c9f2
REACh Regulation	Reference contains Substances of Very High Concern above the threshold (Download)
EU RoHS Directive	Compliant By Exemption (Download)
WEEE Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product Name	variable speed drive, Easy Altivar 310, heavy duty, 22kW, 30hp, normal duty, 30kW, 40hp, 380 to 460V, C3 EMC embedded
Tax Class	GST-18
Rated Supply voltage	380-460 V
Country of Origin	India
Manufacturer	Schneider Electric
Range of product	EASY ALTIVAR 310
Product or component type	VARIABLE SPEED DRIVE
Product specific application	SIMPLE MACHINE
Assembly style	WITH HEAT SINK
Device short name	ATV310
Network number of phases	THREE PHASE
[Us] rated supply voltage	380...460 V - 15...10 %
Motor power kW	22 KW FOR HEAVY DUTY30 KW FOR NORMAL DUTY
Motor power hp	30 HP FOR HEAVY DUTY40 HP FOR NORMAL DUTY
Noise level	50 DB
Quantity per set	SET OF 1
EMC filter	INTEGRATED
Type of cooling	INTEGRATED FAN
Communication port protocol	MODBUS
Connector type	RJ45 (ON FRONT FACE) FOR MODBUS
Physical interface	2-WIRE RS 485 FOR MODBUS
Transmission frame	RTU FOR MODBUS
Transmission rate	4800 BIT/S9600 BIT/S19200 BIT/S38400 BIT/S
Number of addresses	1…247 FOR MODBUS
Communication service	READ HOLDING REGISTERS (03) 29 WORDSWRITE SINGLE REGISTER (06) 29 WORDSWRITE MULTIPLE REGISTERS (16) 27 WORDSREAD/WRITE MULTIPLE REGISTERS (23) 4/4 WORDSREAD DEVICE IDENTIFICATION (43)
Line current	64.2 A AT 380 V (HEAVY DUTY)71.2 A AT 380 V (NORMAL DUTY)53.2 A AT 460 V (HEAVY DUTY)59.2 A AT 460 V (NORMAL DUTY)
Apparent power	46.2 KVA AT 460 V (HEAVY DUTY)47 KVA AT 460 V (NORMAL DUTY)
Prospective line Isc	22 KA ( HEAVY DUTY )5 KA ( NORMAL DUTY )
Continuous output current	46 A HEAVY DUTY60 A NORMAL DUTY
Maximum transient current	69 A DURING 60 S (HEAVY DUTY)66 A DURING 60 S (NORMAL DUTY)
Power dissipation in W	568.8 W, AT IN (HEAVY DUTY)735.6 W, AT IN (NORMAL DUTY)
Speed drive output frequency	0.5…400 HZ
Nominal switching frequency	4 KHZ
Switching frequency	2...12 KHZ ADJUSTABLE
Speed range	1…20 FOR ASYNCHRONOUS MOTOR
Transient overtorque	170…200 % OF NOMINAL MOTOR TORQUE DEPENDING ON DRIVE RATING AND TYPE OF MOTOR
Braking torque	UP TO 150 % OF NOMINAL MOTOR TORQUE WITH BRAKING RESISTORUP TO 70 % OF NOMINAL MOTOR TORQUE WITHOUT BRAKING RESISTOR
Asynchronous motor control profile	VOLTAGE/FREQUENCY RATIO (V/F)VOLTAGE/FREQUENCY RATIO - ENERGY SAVING, QUADRATIC U/FSENSORLESS VECTOR CONTROL (SVC)
Motor slip compensation	ADJUSTABLE
Output voltage	380...460 V THREE PHASE
Electrical connection	TERMINAL, CLAMPING CAPACITY: 25...35 MM², 3 AWG...2 AWG (L1, L2, L3, PA/+, PB, U, V, W)
Tightening torque	2.2…2.4 N.M
Insulation	ELECTRICAL BETWEEN POWER AND CONTROL
Supply	INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER: 5 V (4.75…5.25 V)DC,
Analogue input number	1
Analogue input type	CONFIGURABLE CURRENT AI1 0...20 MA 250 OHMCONFIGURABLE VOLTAGE AI1 0...10 V 30 KOHMCONFIGURABLE VOLTAGE AI1 0...5 V 30 KOHM
Discrete input number	4
Discrete input type	PROGRAMMABLE LI1...LI4 24 V 18...30 V
Discrete input logic	NEGATIVE LOGIC (SINK), > 16 V (STATE 0), < 10 V (STATE 1), INPUT IMPEDANCE 3.5 KOHMPOSITIVE LOGIC (SOURCE), 0...< 5 V (STATE 0), > 11 V (STATE 1)
Sampling duration	10 MS FOR ANALOGUE INPUT20 MS, TOLERANCE +/- 1 MS FOR LOGIC INPUT
Linearity error	+/- 0.3 % OF MAXIMUM VALUE FOR ANALOGUE INPUT
Analogue output number	1
Analogue output type	AO1 SOFTWARE-CONFIGURABLE VOLTAGE: 0...10 V AC 0...10 V 0…0.02 A, IMPEDANCE: 470 OHM, RESOLUTION 8 BITSAO1 SOFTWARE-CONFIGURABLE CURRENT: 0...20 MA, IMPEDANCE: 800 OHM, RESOLUTION 8 BITS
Discrete output number	2
Discrete output type	LOGIC OUTPUT LO+, LO-PROTECTED RELAY OUTPUT R1A, R1B, R1C 1 C/O
Minimum switching current	5 MA AT 24 V DC FOR LOGIC RELAY
Maximum switching current	2 A AT 250 V AC ON INDUCTIVE LOAD COS PHI = 0.4 L/R = 7 MS FOR LOGIC RELAY2 A AT 30 V DC ON INDUCTIVE LOAD COS PHI = 0.4 L/R = 7 MS FOR LOGIC RELAY3 A AT 250 V AC ON RESISTIVE LOAD COS PHI = 1 L/R = 0 MS FOR LOGIC RELAY4 A AT 30 V DC ON RESISTIVE LOAD COS PHI = 1 L/R = 0 MS FOR LOGIC RELAY
Acceleration and deceleration ramps	LINEAR FROM 0...999.9 SSU
Braking to standstill	BY DC INJECTION,
Protection type	LINE SUPPLY OVERVOLTAGELINE SUPPLY UNDERVOLTAGEOVERCURRENT BETWEEN OUTPUT PHASES AND EARTHOVERHEATING PROTECTIONSHORT-CIRCUIT BETWEEN MOTOR PHASESAGAINST INPUT PHASE LOSS IN THREE-PHASETHERMAL MOTOR PROTECTION VIA THE DRIVE BY CONTINUOUS CALCULATION OF I²T
Frequency resolution	ANALOG INPUT: CONVERTER A/D, 10 BITSDISPLAY UNIT: 0.1 HZ
Time constant	20 MS +/- 1 MS FOR REFERENCE CHANGE
Operating position	VERTICAL +/- 10 DEGREE
Height	390 MM
Width	180 MM
Depth	212 MM
Net weight	9.7 KG
Supply frequency	50/60 HZ +/- 5 %
Product destination	ASYNCHRONOUS MOTORS
Electromagnetic compatibility	ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST - TEST LEVEL: LEVEL 4 CONFORMING TO IEC 61000-4-4ELECTROSTATIC DISCHARGE IMMUNITY TEST - TEST LEVEL: LEVEL 3 CONFORMING TO IEC 61000-4-2IMMUNITY TO CONDUCTED DISTURBANCES - TEST LEVEL: LEVEL 3 CONFORMING TO IEC 61000-4-6RADIATED RADIO-FREQUENCY ELECTROMAGNETIC FIELD IMMUNITY TEST - TEST LEVEL: LEVEL 3 CONFORMING TO IEC 61000-4-3VOLTAGE DIPS AND INTERRUPTIONS IMMUNITY TEST CONFORMING TO IEC 61000-4-11SURGE IMMUNITY TEST - TEST LEVEL: LEVEL 3 CONFORMING TO IEC 61000-4-5
Standards	IEC 61800-5-1IEC 61800-3
Product certifications	CEEACKC
IP degree of protection	IP20 WITHOUT BLANKING PLATE ON UPPER PARTIP4X TOP
Pollution degree	2 CONFORMING TO IEC 61800-5-1
Environmental characteristic	DUST POLLUTION RESISTANCE CLASS 3S2 CONFORMING TO IEC 60721-3-3CHEMICAL POLLUTION RESISTANCE CLASS 3C3 CONFORMING TO IEC 60721-3-3
Shock resistance	15 GN CONFORMING TO IEC 60068-2-27 FOR 11 MS
Relative humidity	5…95 % WITHOUT CONDENSATION CONFORMING TO IEC 60068-2-35…95 % WITHOUT DRIPPING WATER CONFORMING TO IEC 60068-2-3
Ambient air temperature for storage	-25…70 °C
Ambient air temperature for operation	-10…55 °C WITHOUT DERATING55…60 °C PROTECTIVE COVER FROM THE TOP OF THE DRIVE REMOVED WITH CURRENT DERATING 2.2 % PER °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	30.000 CM
Package 1 Width	40.000 CM
Package 1 Length	60.000 CM
Package 1 Weight	10.700 KG
Unit Type of Package 2	P12
Number of Units in Package 2	12
Package 2 Height	105.000 CM
Package 2 Width	80.000 CM
Package 2 Length	120.000 CM
Package 2 Weight	148.212 KG
Warranty (in months)	18

Sustainability	Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations.
Sustainable packaging	✓
Take-back	No
Mercury free	✓
Environmental Disclosure	Product Environmental Profile (Download)
End of life manual availability	End of Life Information (Download)
Recyclability potential, in %	23
Total lifecycle Carbon footprint	22 888 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]	340.2640814372333
Carbon footprint of the manufacturing phase [A1 to A3]	340 kg CO2 eq.
Carbon footprint of the distribution phase [A4]	1.098847287420431
Carbon footprint of the distribution phase [A4]	1 kg CO2 eq.
Carbon footprint of the installation phase [A5]	3.053554671187165
Carbon footprint of the installation phase [A5]	3 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]	22517.76680989159
Carbon footprint of the use phase [B2, B3, B4, B6]	22 518 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4]	25.37200142801813
Carbon footprint of the end-of-life phase [C1 to C4]	25 kg CO2 eq.
SCIP Number	5b939136-3ce6-4efd-8751-a5f6e107c9f2
REACh Regulation	Reference contains Substances of Very High Concern above the threshold (Download)
EU RoHS Directive	Compliant By Exemption (Download)
WEEE Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
