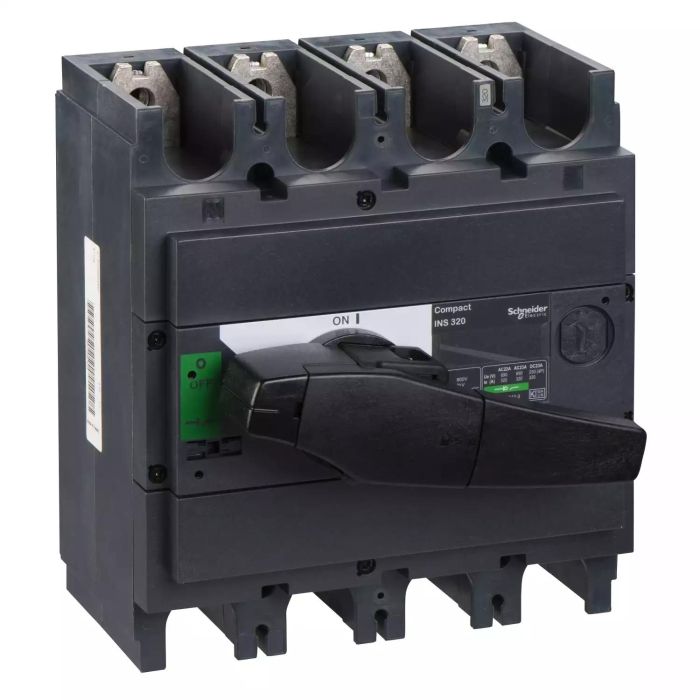

INS320 4P 320 A - SWITCH DISCONNECTOR
SKU :
31109
INS320 4P 320 A - SWITCH DISCONNECTOR
SKU: 31109
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is in stock
Loading...
Further offers for this product
31109
INS320 4P 320 A - SWITCH DISCONNECTOR
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Excl. Tax
Free shipping on orders above ₹499
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹ 55,000.00
₹ 47,300.00
Excl. Tax
To View the best prices please Sign in / Register.
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
INS320 4P 320 A - SWITCH DISCONNECTOR
₹ 55,000.00
₹ 47,300.00
- Specifications
- Environmental Data
- Documents
- Reviews
Overview
| Product Name | INS320 4P 320 A - SWITCH DISCONNECTOR |
|---|---|
| Tax Class | GST-18 |
| Current Rating | 320A |
| Number of Poles | 4P |
| Range | COMPACT |
| Product or component type | SWITCH DISCONNECTOR |
| Product name | COMPACT INS |
| Poles description | 4P |
| Network type | ACDC |
| Network frequency | 50/60 HZ |
| [Ie] rated operational current | AC-22A: 320 A AC 50/60 HZ 220/240 VAC-22A: 320 A AC 50/60 HZ 380/415 VAC-22A: 320 A AC 50/60 HZ 440/480 VAC-22A: 320 A AC 50/60 HZ 480 V NEMAAC-22A: 320 A AC 50/60 HZ 500/525 VAC-22A: 320 A AC 50/60 HZ 660/690 VAC-23A: 320 A AC 50/60 HZ 220/240 VAC-23A: 320 A AC 50/60 HZ 380/415 VAC-23A: 320 A AC 50/60 HZ 440/480 VAC-23A: 320 A AC 50/60 HZ 480 V NEMAAC-23A: 320 A AC 50/60 HZ 500/525 VAC-23A: 320 A AC 50/60 HZ 660/690 VDC-22A: 320 A DC 125 V 2 POLES IN SERIESDC-22A: 320 A DC 250 V 4 POLES IN SERIESDC-23A: 320 A DC 125 V 2 POLES IN SERIESDC-23A: 320 A DC 250 V 4 POLES IN SERIES |
| [Ui] rated insulation voltage | 800 V AC 50/60 HZ |
| [Uimp] rated impulse withstand voltage | 8 KV8 KV CONFORMING TO IEC 60947-3 |
| [Ith] conventional free air thermal current | 320 A AT 60 °C |
| [Icm] rated short-circuit making capacity | 330 KA WITH UPSTREAM PROTECTION CIRCUIT BREAKER 690 V AC AT 50/60 HZ50 KA SWITCH-DISCONNECTOR ALONE 690 V AC AT 50/60 HZ |
| [Ue] rated operational voltage | 250 V DC690 V AC 50/60 HZ |
| Suitability for isolation | YES |
| Contact position indicator | YES |
| Visible break | NO |
| Pollution degree | 3 |
| Control type | DIRECT FRONT ROTARY HANDLE |
| Handle colour | BLACK |
| Mounting mode | FIXED |
| Mounting support | PLATERAIL |
| Upside connection | FRONT |
| Downside connection | FRONT |
| Maximum power | AC-23: 160 KW AT 380/415 V AC 50/60 HZAC-23: 185 KW AT 440 V AC 50/60 HZAC-23: 185 KW AT 480 V AC 50/60 HZ (NEMA)AC-23: 220 KW AT 500/525 V AC 50/60 HZAC-23: 250 KW AT 660/690 V AC 50/60 HZAC-23: 90 KW AT 220/240 V AC 50/60 HZAC-23: 90 KW AT 230 V AC 50/60 HZ (NEMA) |
| Rated duty | UNINTERRUPTED |
| [Icw] rated short-time withstand current | 11.5 KA DURING 3 S CONFORMING TO IEC 60947-320 KA DURING 1 S CONFORMING TO IEC 60947-34 KA DURING 30 S CONFORMING TO IEC 60947-34.9 KA DURING 20 S CONFORMING TO IEC 60947-3 |
| Mechanical durability | 10000 CYCLES |
| Electrical durability | AC-22A: 1500 CYCLES 440 V AC 50/60 HZAC-22A: 1500 CYCLES 500 V AC 50/60 HZAC-22A: 1500 CYCLES 690 V AC 50/60 HZAC-23A: 1500 CYCLES 440 V AC 50/60 HZAC-23A: 1500 CYCLES 500 V AC 50/60 HZAC-23A: 1500 CYCLES 690 V AC 50/60 HZDC-23A: 1000 CYCLES 250 V DC |
| Connection pitch | 45 MM |
| Height | 205 MM |
| Width | 185 MM |
| Depth | 120 MM |
| Product weight | 4.9 KG |
| Standards | IEC 60947-3IEC 60947-1 |
| Product certifications | CCCKEMA-KEUR |
| IP degree of protection | IP40 CONFORMING TO IEC 60529 |
| IK degree of protection | IK07 CONFORMING TO EN 50102 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -50…85 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.800 CM |
| Package 1 Width | 19.400 CM |
| Package 1 Length | 22.400 CM |
| Package 1 Weight | 6.000 KG |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.000 CM |
| Package 2 Width | 30.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 12.441 KG |
| Warranty (in months) | 18 |
