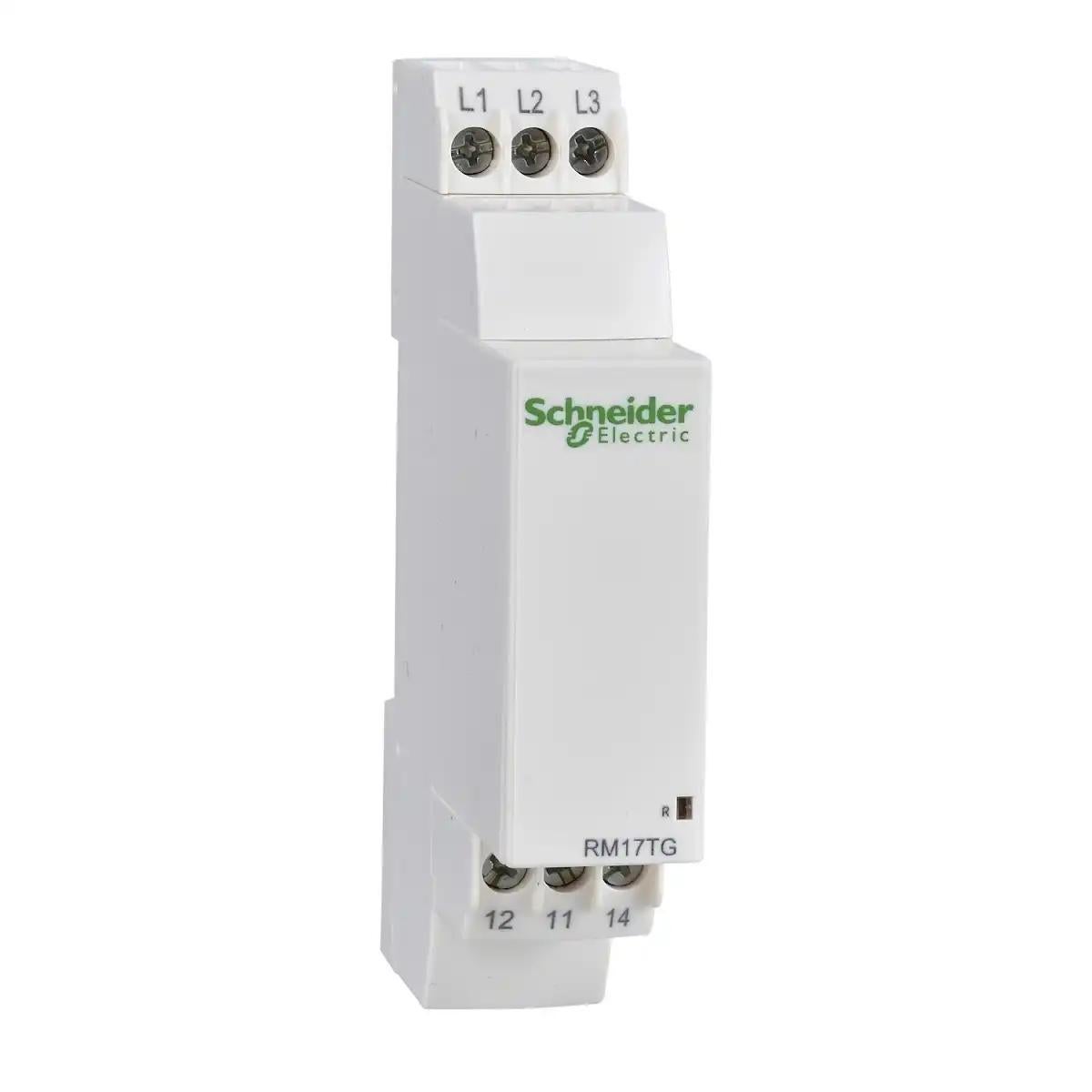

Modular measurement and relay, Harmony relay, for 3-phase supply, without time delay, 183...528V AC, 1 C/O
SKU :
RM10TG00
Modular measurement and relay, Harmony relay, for 3-phase supply, without time delay, 183...528V AC, 1 C/O
SKU:
RM10TG00
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is in stock
Loading...
Further offers for this product
RM10TG00
Modular measurement and relay, Harmony relay, for 3-phase supply, without time delay, 183...528V AC, 1 C/O
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Excl. Tax
Free shipping on orders above ₹499
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹ 3,559.00
₹ 1,886.27
Excl. Tax
To View the best prices please Sign in / Register.
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
No of Modules
Color
Modular measurement and relay, Harmony relay, for 3-phase supply, without time delay, 183...528V AC, 1 C/O
₹ 3,559.00
₹ 1,886.27
- Description
- Specifications
- Environmental Data
- Reviews
Description
17.5MM PHASE LOSE/SEQUENCE
Overview
| Product Name | Modular measurement and relay, Harmony relay, for 3-phase supply, without time delay, 183...528V AC, 1 C/O |
|---|---|
| Tax Class | GST-18 |
| Current Rating | 5A |
| Range of product | HARMONY RELAY |
| Relay type | CONTROL RELAY |
| Product or component type | MODULAR MEASUREMENT AND CONTROL RELAYS |
| Relay name | RM10TG |
| Relay monitored parameters | PHASE SEQUENCEPHASE FAILURE DETECTION |
| Time delay type | WITHOUT |
| Output contacts | 1 C/O |
| nominal output current | 5 A |
| Product specific application | FOR 3-PHASE SUPPLY |
| Supply voltage limits | 183…528 V AC |
| Maximum switching voltage | 250 V AC250 V DC |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 MA AT 5 V DC |
| Control circuit voltage limits | - 12 % + 10 % UN |
| Power consumption in VA | 0…22 VA AT 400 V AC 50 HZ |
| Voltage detection threshold | < 100 V AC |
| Control circuit frequency | 50...60 HZ +/- 10 % |
| delay at power up | 650 MS |
| Voltage range | 183...528 V |
| Insulation resistance | > 500 MOHM AT 500 V DC CONFORMING TO IEC 60255-5> 500 MOHM AT 500 V DC CONFORMING TO IEC 60664-1 |
| [Ui] rated insulation voltage | 400 V CONFORMING TO IEC 60664-1 |
| Supply frequency | 50/60 HZ +/- 10 % |
| Operating position | ANY POSITION WITHOUT DERATING |
| Connections - terminals | SCREW TERMINALS, 1 X 0.5...1 X 4 MM² (AWG 20...AWG 11) SOLID WITHOUT CABLE ENDSCREW TERMINALS, 2 X 0.5...2 X 2.5 MM² (AWG 20...AWG 14) SOLID WITHOUT CABLE ENDSCREW TERMINALS, 1 X 0.2...1 X 2.5 MM² (AWG 24...AWG 12) FLEXIBLE WITH CABLE ENDSCREW TERMINALS, 2 X 0.2...2 X 1.5 MM² (AWG 24...AWG 16) FLEXIBLE WITH CABLE END |
| Tightening torque | 0.6…1 N.M CONFORMING TO IEC 60947-1 |
| Housing material | POLYCARBONATE |
| Local signalling | LED (YELLOW) FOR RELAY ON |
| Mounting support | 35 MM SYMMETRICAL DIN RAIL CONFORMING TO EN/IEC 60715 |
| Electrical durability | 100000 CYCLES |
| Mechanical durability | 30000000 CYCLES |
| Utilisation category | AC-12 CONFORMING TO IEC 60947-5-1AC-13 CONFORMING TO IEC 60947-5-1AC-14 CONFORMING TO IEC 60947-5-1AC-15 CONFORMING TO IEC 60947-5-1DC-12 CONFORMING TO IEC 60947-5-1DC-13 CONFORMING TO IEC 60947-5-1 |
| Safety reliability data | B10D = 850000MTTFD = 924.6 YEARS |
| Width | 17.5 MM |
| Product weight | 0.13 KG |
| Electromagnetic compatibility | EMISSION STANDARD FOR INDUSTRIAL ENVIRONMENTS CONFORMING TO EN/IEC 61000-6-4EMISSION STANDARD FOR RESIDENTIAL, COMMERCIAL AND LIGHT-INDUSTRIAL ENVIRONMENTS CONFORMING TO EN/IEC 61000-6-3IMMUNITY FOR INDUSTRIAL ENVIRONMENTS CONFORMING TO EN/IEC 61000-6-2 |
| Standards | EN/IEC 60255-1 |
| Product certifications | C-TickGOSTULCSAGL |
| Marking | CE |
| Directives | 89/336/EEC - ELECTROMAGNETIC COMPATIBILITY73/23/EEC - LOW VOLTAGE DIRECTIVE |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % AT 55 °C CONFORMING TO IEC 60068-2-30 |
| Vibration resistance | 0.35 MM (F= 5…57.6 HZ) CONFORMING TO IEC 60068-2-61 GN (F= 57.6…150 HZ) CONFORMING TO IEC 60255-21-1 |
| Shock resistance | 15 GN FOR 11 MS CONFORMING TO IEC 60255-21-1 |
| IP degree of protection | IP20 (TERMINALS) CONFORMING TO IEC 60529IP30 (CASING) CONFORMING TO IEC 60529 |
| Pollution degree | 3 CONFORMING TO IEC 60664-1 |
| Overvoltage category | III CONFORMING TO IEC 60664-1 |
| Dielectric test voltage | 2 KV, 1 MIN AC 50 HZ |
| Non-dissipating shock wave | 4 KV |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27 CM |
| Package 1 Width | 78 CM |
| Package 1 Length | 97 CM |
| Package 1 Weight | 92 G |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 15 CM |
| Package 2 Width | 30 CM |
| Package 2 Length | 40 CM |
| Package 2 Weight | 4830 G |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 768 |
| Package 3 Height | 70 CM |
| Package 3 Width | 60 CM |
| Package 3 Length | 80 CM |
| Package 3 Weight | 82280 G |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| Total lifecycle Carbon footprint | 73 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2.3087051793 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0321266932 |
| Carbon footprint of the distribution phase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.0164665339 |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 70.6814814815 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 71 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.1986728088 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.2 kg CO2 eq. |
| SCIP Number | 9f31f7ce-d4c6-4c73-bbc7-5028e12603b6 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
