Almost everyone has heard the term “short circuit” at some point. Sometimes people use it casually- like when something stops working and they blame it on “a short.” But very few people actually understand what it means in everyday life.

The truth is, short circuits are not complicated to understand. They happen often, and they can be dangerous when ignored. In this blog, we are going to explain what a short circuit is, why it happens, the effects it can cause, and most importantly, how you can stop it from happening at home.

Let’s start with the basics.

What is a Short Circuit?

So, what is a short circuit? If you imagine electricity flowing like water through pipes, a short circuit is like when that water suddenly bursts through a hole and starts flowing somewhere it wasn’t meant to go.

In electrical terms, a short circuit happens when electricity finds a shortcut through a path of very low resistance. This path wasn’t part of the plan. Normally, electricity flows through things like light bulbs, heaters, and appliances- these slow it down and use the power safely. But with a short circuit, it skips the load and flows straight through an easier path. This creates too much current too quickly.

That sudden flow of uncontrolled power causes heat, sometimes sparks and sometimes even fires. That’s why electricians take short circuits seriously.

Why Short Circuit Happens

People often ask why short circuit happens when their home is wired correctly. The thing is, wires don’t stay perfect forever. Over time, they wear down, insulation breaks, and appliances go faulty. All of these create opportunities for electricity to find a shortcut.

It can be as simple as a loose connection behind a socket or as serious as water getting into places it shouldn’t be. Electricity always looks for the easiest way back to earth. If it finds it through damaged wires or broken equipment, an electrical short circuit happens.

Causes of Short Circuit

There are a few reasons why short circuit happens, and it’s good to know them so you can spot risks early. These are the most common ones you’ll come across in homes.

1. Worn-Out Wiring

Over time, the plastic insulation that covers wires can wear out. Once wires are exposed, they can touch where they shouldn’t. When exposed wires come into contact with each other or with conductive surfaces like metal fixtures or boxes, it causes an electrical short circuit. Regular inspection of old wiring is crucial.

2. Damaged Appliances

Old toasters, fridges, or washing machines can develop faults inside. Loose connections or broken components can cause wires to touch where they shouldn’t. These hidden faults can easily trigger an electrical short circuit when the appliance is plugged in. Always unplug and replace malfunctioning appliances promptly.

3. Overloading

Plugging too many things into one outlet is a common mistake. The wires can overheat as they carry more current than they’re designed to handle. Eventually, insulation may melt, causing wires to come into contact and short. Avoid overloading outlets, especially in older homes.

4. Water Leaks

Electricity and water don’t mix well. Water from leaking pipes, roofs, or seepage can enter sockets, switchboards, or wiring conduits. This creates a conductive path between wires or terminals that aren’t supposed to touch. Waterproofing and prompt plumbing repairs are key to preventing such electrical hazards.

5. Rodents

Believe it or not, mice and rats cause a lot of short circuits. They chew through wires. Once the insulation is gone, the exposed copper wires can easily touch each other or other conductors. This is a common and dangerous cause of short circuits. Use rodent-proof materials and regular pest control.

It’s helpful to understand when short circuit occurs. The simple answer is: whenever electricity finds a path it shouldn’t take. This might happen the moment you switch on a faulty appliance, or it might happen when insulation fails silently behind a wall.

So, when does an electric short circuit occur? It happens at the point where electricity leaves its proper path- sometimes inside a socket, sometimes deep inside an appliance.

Types of Short Circuit

You might not know this, but there’s more than one kind of electrical short circuit. Here are the main types of short circuit people should know about.

1. Normal Short Circuit

This is the classic one. A live wire touches a neutral wire. Electricity flows fast where it shouldn’t. This sudden surge in current can trip circuit breakers or blow fuses instantly. It’s often caused by damaged insulation or faulty wiring. Also, it needs immediate attention to avoid overheating or fires.

2. Ground Fault

Here, a live wire touches something grounded like a metal pipe or the metal casing of an appliance. This can cause dangerous shocks. It’s especially risky in wet areas like bathrooms or kitchens. Ground faults can lead to electric shocks and are a common reason why Ground Fault Circuit Interrupters (GFCIs) are essential for home safety.

3. Arc Fault

This one is tricky. It’s when electricity jumps through the air between connections. Loose or broken wires cause this. It creates sparks, and sparks can start fires. Arc faults are often hidden behind walls or outlets. They’re a leading cause of electrical fires in homes. That’s why modern homes use Arc Fault Circuit Interrupters (AFCIs) to detect and stop them.

4. Series Fault

Not so common at home. It happens when part of a circuit breaks and causes unexpected flows of current, which can also lead to problems. Since current continues through the broken path, it generates excessive heat. Series faults can damage sensitive electronics and pose a fire risk over time if not detected and corrected early.

Effects of Short Circuit

The effects of short circuits can range from annoying to extremely dangerous.

• Power Cuts- Short circuits often cause circuit breakers to trip or fuses to blow. This results in sudden power outages. It can shut down lights, appliances, and systems unexpectedly. This is a safety response that prevents further damage or overheating in the electrical system.

• Damaged Devices- Too much current flow can burn out internal components instantly. TVs, chargers, computers, and even refrigerators can be permanently damaged. Sensitive electronics are particularly vulnerable and may never recover after a short circuit event.

• Fires- Short circuits can generate intense heat, causing sparks or even flames. This can ignite nearby materials like curtains, plastic covers, or wooden panels. It leads to full-blown electrical fires. Faulty wiring is a major cause of residential fires worldwide.

• Electric Shocks- Exposed wires or malfunctioning devices caused by short circuits can deliver electric shocks to anyone who comes into contact. Even mild shocks can be hazardous, especially in wet areas like kitchens and bathrooms. In severe cases, it can result in injury or be fatal.

• Repair Costs- The aftermath of a short circuit often includes replacing appliances, rewiring circuits, or upgrading fuse boards. Repairs can run into thousands of rupees, especially if structural or fire damage is involved.

Power Short Circuit

Sometimes people hear the term power short circuit. It usually means a fault in the main electrical system, not just one appliance. This can knock out bigger areas or trip your whole fuse board. In factories or large buildings, a power short circuit can cause serious disruption.

Impact on Homes and Buildings

When a power short occurs, it often trips the main breaker or fuse board, cutting electricity to multiple rooms or the whole property. It can damage electrical panels, melt wires, or cause sparks and fire hazards if not addressed quickly by a professional.

Risks in Industrial or Commercial Settings

In factories, malls, or office complexes, power short circuits can halt operations, damage expensive equipment, and pose serious safety risks. Heavy-duty machinery draws high current. So, faults here can trigger massive disruptions. They may require immediate emergency shutdowns.

What to Do if One Happens

If you suspect a power short circuit, turn off the main power supply and avoid touching any affected outlets or panels. Call a certified electrician to inspect the issue. Don’t try to fix it yourself. This is because it could be dangerous without the right tools and expertise.

Short Circuit Protection

Luckily, there’s plenty of short circuit protection out there. These tools help catch the problem early so it doesn’t cause more damage.

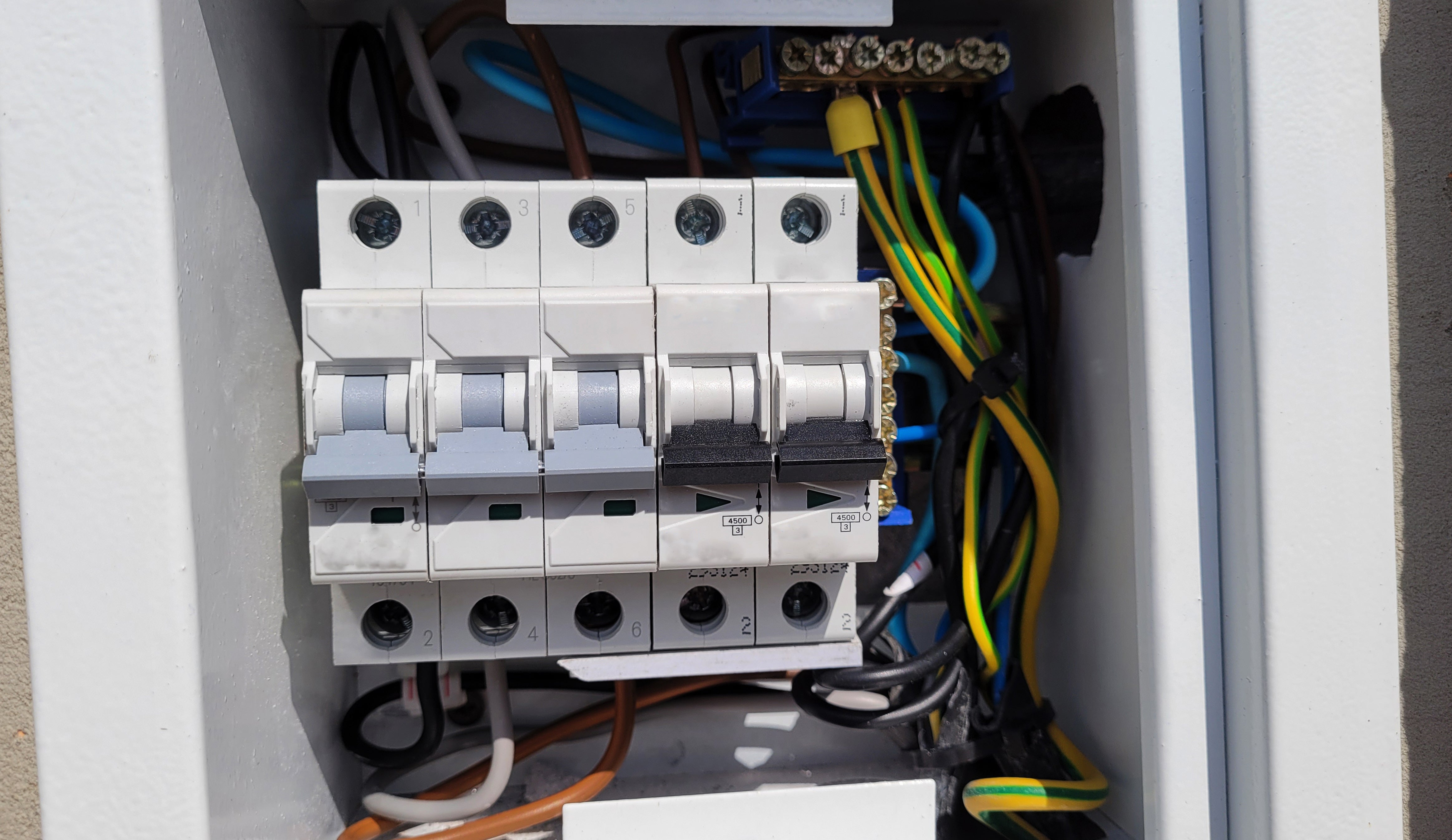

• Circuit Breakers- Circuit breakers automatically cut off the power when they detect excessive current flow. They prevent overheating and fire risks by shutting down affected circuits instantly. Every modern electrical panel should include these protective devices.

• Fuses- Fuses serve a similar function to breakers. But once blown, they need to be replaced. They contain a metal strip that melts when too much current flows through. This breaks the circuit. Fuses are reliable and cost-effective for small devices and older systems.

• GFCIs- These outlets are designed for areas with water exposure. Such areas include bathrooms, kitchens, and outdoor zones. GFCIs shut off power the moment they detect a ground fault or imbalance in current. They’re essential for preventing electrical shocks and short circuits caused by wet or damp conditions.

• AFCIs- AFCIs detect arc faults which are unintended electrical discharges that can lead to fires. These are common in homes with aging wiring or damaged cords. AFCIs offer a higher level of protection than traditional breakers. They are increasingly mandated in new residential construction.

• Good Wiring- Properly installed and insulated wiring is foundational to electrical safety. Using the right gauge, ensuring tight connections, and avoiding sharp bends or excessive heat exposure greatly reduces the risk of short circuits. Always use quality materials and certified installation methods.

• Inspections- Periodic inspections by licensed electricians help identify potential hazards before they cause harm. Hidden faults, aging systems, or overloaded panels can all be caught early. An annual inspection is a smart preventive measure for long-term electrical safety.

How to Prevent Short Circuit?

You don’t have to be an electrician to practice good habits. Here’s how to prevent short circuit trouble.

• Don’t Overload Sockets- Avoid plugging too many devices into one outlet or power strip. Overloading can cause wires to heat up, melt insulation, and trigger a short. Use surge protectors and spread your appliances across multiple circuits whenever possible.

• Inspect Cords- Frayed, pinched, or exposed wires are common causes of shorts. Regularly inspect appliance cords and extension leads for damage. Replace worn-out cables immediately. Never use electrical tape as a long-term fix.

• Keep Things Dry- Water and electricity don’t mix. Always ensure your hands are dry when handling plugs. Also, avoid using appliances near sinks or in wet conditions. Install GFCIs in moisture-prone areas to add a layer of protection.

• Use Reliable Products- Cheap or counterfeit electrical devices may not meet safety standards. Always buy from reputable brands and look for certifications like ISI, CE, or UL. High-quality products are less likely to malfunction or cause electrical hazards.

• Hire Professionals- DIY fixes might save money upfront but can lead to unsafe wiring and hidden issues. For installations, repairs, or upgrades, always hire a certified electrician. They ensure everything is up to code and prevent future short circuit problems.

• Watch for Rodents- Rodents often chew on wires. This exposes them and creates short circuit risks. Check attics, basements, and behind walls for signs of nesting or gnawing. Use rodent deterrents or call pest control to prevent electrical damage caused by pests.

Why Short Circuit Happens Again and Again?

If your home keeps having shorts, ask why. Is the wiring old? Are you overloading circuits? Is there hidden water damage? Appliances breaking down? There’s always a cause. Repeated faults aren’t normal.Knowing why short circuit happens repeatedly helps solve the bigger problem before it gets worse.

1. Old or Damaged Wiring

Aging electrical systems often have frayed or brittle insulation, loose connections, or corroded wires. These conditions increase the risk of short circuits. Worn-out wiring could be the root cause of repeated faults if your home is more than 20 years old and hasn’t had an electrical upgrade.

2. Overloaded Circuits

Plugging too many devices into a single outlet or power strip can overwhelm the circuit. When electrical demand exceeds what the wiring can handle, it causes overheating and potential shorts. Repeated overloads weaken insulation over time. This increases the chances of recurring electrical failures.

3. Water or Moisture Exposure

Moisture is a major trigger for short circuits. Leaks in ceilings, walls, or basements can seep into electrical wiring. It creates a conductive path for electricity. Bathrooms, kitchens, and outdoor areas are especially vulnerable. Water exposure might be the culprit if faults coincide with humidity or rain.

4. Faulty Appliances or Devices

An old or defective appliance can have internal wiring problems that cause repeated short circuits when plugged in. This might affect one outlet or trip the main breaker. It's best to unplug it and get it checked if shorts happen only when using a specific appliance.

5. Improper Electrical Work or DIY Fixes

Poor installations, loose connections, or non-standard repairs can cause ongoing short circuit issues. It may not meet safety codes if previous work was not done by a certified electrician. Revisiting the electrical layout and ensuring proper installation can prevent future problems and improve home safety.

Also Read: What is the Difference between Overloading and Short-Circuiting?

Conclusion

Short circuits might seem small- a fuse trips, lights go out. But behind that are real dangers: fires, shocks, damaged appliances. Understanding what is a short circuit, the causes of short circuit, and the effects of short circuit helps keep you safe.

Electricity is useful, but it needs respect. With good habits, regular checks, and proper protection, you can avoid most short circuit risks before they even start.

FAQ's

Q1. Are short circuits destructive to home equipment?

Ans: Yes, in fact when there is a short circuit, the impact could affect the home appliances permanently, especially when an electrical surge hits sensitive electronic parts. Surge damaged appliances can include burnt circuits on appliances, disabled motor or appliance complete failure. Reduction of the risk can be done through the use of surge protectors and circuit breakers.

Q2. Are short circuits more frequent in certain seasons or weather conditions?

Ans: In the rainy season or in a humid environment, there is a bigger chance of short circuiting due to dampness reaching sockets and wire. Water improves conductivity and electricity has an easy way to reach unexpected paths. During these times proper insulation and waterproofs are very important.

Q3. What are the things to do when there is a short circuit at home?

Ans: Switch off the main supply of power to prevent any other damage or danger. Never handle any burned out appliances or have open wires. Next, call an electrician to check the origin of the fault and fix it.
