What is DOL Starter?

Starting from the basics, what is DOL starter? DOL stands for Direct-On-Line. A DOL starter is a type of motor starter used to start electric motors directly at full line voltage. It is one of the simplest and oldest forms of motor starting methods.

A DOL motor starter connects the motor directly to the power supply. This means the motor gets full voltage right from the start. There are no gradual increases or fancy electronics in this method. It is straightforward, which is why many people trust it for certain applications.

DOL Starter Working Principle

Understanding the DOL starter working principle isn’t complicated. When a motor starts through a DOL starter, the starter simply connects the motor terminals to the supply line. There is no reduction in voltage. The full line voltage is applied to the motor directly.

The motor draws a high starting current due to this. This current can be six to eight times higher than the motor’s normal running current. The high current produces the necessary torque to start the motor immediately. Below is a detailed explanation of the DOL starter working principle.

1. Direct Connection to Power Supply

A Direct-On-Line (DOL) starter connects the motor terminals directly to the full line voltage as soon as it is switched on. There is no intermediate step like voltage reduction. This simple mechanism ensures an immediate and direct flow of power to the motor.

2. High Starting Current Drawn

The motor draws a large starting current instantly as it receives full voltage, typically 6 to 8 times its rated running current. This surge is normal for DOL operation and is required to overcome initial inertia and start the motor shaft spinning.

3. Instant Generation of Starting Torque

The high inrush current produces strong starting torque. This is critical for loads that need to start under full mechanical load, such as pumps, compressors, and conveyors. The motor reaches its full speed quickly. This makes DOL starters ideal for simple and robust applications.

4. Basic Protection and Simplicity

DOL starters often include basic protective elements like contactors, overload relays, and start/stop push buttons. While simple in design, they offer adequate protection for smaller motors (typically under 5 HP) and are widely used due to their low cost, ease of use, and minimal maintenance.

The DOL starter principle relies on three main parts:

1. 1. The contactor connects and disconnects the motor from the supply.

2. 2. Overload Relay protects the motor from drawing too much current over a long time.

3. 3. Start and Stop Buttons are simple push buttons to control the motor manually.

That’s really the foundation of how DOL starter works.

Types of DOL Starter

DOL starters are available in varying types for different applications. Below are the types of DOL starters.

1. Manual DOL Starter

This type requires manual operation using push buttons or a rotary switch. It's simple and commonly used for small motors. Operators manually start and stop the motor. It offers limited protection and is best suited for low-duty, standalone applications.

2. Automatic DOL Starter

Automatic DOL starters use timers, sensors, or programmable logic to start and stop motors without human intervention. These are useful in automated systems or processes that require precise control. They enhance efficiency and reduce human error.

3. Star-Delta DOL Starter Hybrid

Some systems begin with DOL operation and then shift to a star-delta configuration. This helps reduce the high inrush current while still providing the DOL’s simplicity. It's useful for medium motors where a balance between torque and current control is needed.

4. DOL Starter with Protection Features

These DOL starters come integrated with overload relays, short circuit protection, and phase failure detection. They are ideal for industrial use. In such applications, motor safety and uninterrupted operations are critical. These enhanced starters prevent motor damage and ensure quick disconnect during electrical faults.

DOL Starter Connection

Looking at the DOL starter connection, the setup is fairly simple. Here’s how it usually looks in practice:

• The power supply connects to the contactor.

• The contactor connects to the motor.

• An overload relay sits between the contactor and the motor.

• Control buttons are wired to operate the contactor coil.

When the start button is pressed, the contactor closes, power flows to the motor, and the motor starts running. When the stop button is pressed or if there’s an overload, the contactor opens, cutting the power.

The DOL starter connection doesn’t involve complicated wiring. The simplicity is one reason it’s still widely used.

DOL Starter Use

Now, onto DOL starter use. Where is it found? It is commonly used in small motors where the starting current surge does not cause issues. It’s popular in workshops, small industries, and even some agricultural setups. Some common uses of these devices are as follows.

1. Used in Small Motors (Below 5 HP)

The main application of DOL starter is with motors below 5 horsepower. Above this, the high starting current can cause voltage drops that affect other devices. For small pumps, fans, compressors, and conveyors, DOL starters are ideal because they get the job done with minimal fuss.

2. Workshop and Garage Equipment

DOL starters are commonly used for machines like grinders, drills, and small lathes. These machines require quick starting and stopping, and the DOL starter’s manual control makes it easy. The starting surge does not create electrical disturbances as workshops use low- rated motors.

3. Agricultural Applications

DOL starters are popular in farms and rural areas to run irrigation pumps, threshers, and small harvesters. These applications need high starting torque and immediate power. DOL starters work well here because of their affordability. Also, they offer ease of repair and minimal need for advanced motor control.

4. Fans, Blowers, and Compressors

Fans and air blowers with small motors can easily be started using DOL starters. Similarly, air compressors that require high torque at startup benefit from the strong surge current. These systems don’t need complex control logic. This makes the DOL starter a cost-effective and reliable solution.

5. Conveyor Belts and Material Handling

Small conveyor systems in packaging, manufacturing, and food processing units often use DOL starters. They provide instant torque to move the load and are easy to restart after short stops. Their simple design helps reduce downtime and makes maintenance straightforward in busy production environments.

Advantages of DOL Starter

There are several advantages of DOL starter that make it a popular choice:

• Simple Design: Fewer parts mean less chance of things going wrong.

• Low Cost: It is cheaper than other types of starters like star-delta or soft starters.

• Ease of Maintenance: Repairs and replacements are usually easy and affordable.

• Quick Start: Full voltage means the motor starts immediately with high torque.

• Reliable: Well-suited for small motors and simple applications.

These benefits explain why DOL motor starter devices are still widely used despite newer technologies being available.

Disadvantages of DOL Starter

No system is perfect. There are disadvantages of DOL starter to keep in mind as well:

• High Starting Current: This can affect other devices connected to the same supply.

• Sudden Start: Motors start abruptly, which can cause mechanical stress.

• Limited Application: Not suitable for large motors or systems with sensitive electronics.

• Voltage Drops: High current at startup may cause dips in voltage across the supply network.

Understanding both sides- the pros and the cons- helps in deciding when a DOL motor starter is the right choice.

How DOL Starter Works in Everyday Use

In everyday scenarios, how DOL starter works is clear. You can understand its use with the following example.

Example: Water Pump in a Small Workshop

Imagine a workshop where a small water pump needs to be turned on. The operator presses the start button. This energizes the contactor inside the DOL starter. It instantly connects the motor to the full line voltage. This causes it to run at full speed from the get-go- no soft start or speed ramping.

Protection Kicks In Automatically

If the pump gets blocked or overloaded, for instance, due to debris in the water, the motor starts drawing excessive current. The thermal overload relay inside the DOL starter senses this rise and trips the circuit. This automatically shuts down the motor to prevent overheating or damage.

Why It’s So Effective?

This simple sequence makes DOL starters perfect for everyday use: they’re quick, reliable, and protective. No complex programming, no delay- just direct power and built-in safety. That’s why industries and farms still rely on them, especially for low-rated motors.

Tips for Safely Using and Maintaining a DOL Starter

Ensuring the safe operation and long life of a Direct-On-Line (DOL) starter requires regular checks and proper usage. Here are some key tips:

1. Regular Inspection

Inspect the DOL starter frequently for signs of wear, loose connections, or overheating. Check the contactors, overload relay, and wiring insulation. Any visible damage or unusual smell should be addressed immediately. Periodic inspection helps prevent faults that may lead to equipment failure or accidents.

2. Test the Overload Relay

The overload relay is your main line of defense against motor burnout. Periodically test it by simulating overload conditions to ensure it trips correctly. It may be faulty or incorrectly calibrated if it does not respond as expected. This can result in serious motor damage during real faults.

3. Keep It Clean and Dry

Moisture, dust, and grease can affect electrical components. Make sure the starter enclosure is sealed properly. Wipe away any buildup and ensure that ventilation isn’t blocked. For installations in humid or dusty environments, consider weatherproof or dustproof enclosures.

4. Use Correct Ratings

Always match the DOL starter’s voltage and current ratings with your motor’s specifications. Underrated components can overheat or fail under load. Oversized components may not trip when needed. Ensure compatibility to maintain efficiency and safety.

5. Train Personnel

Operators should know the correct start/stop procedures and how to reset the starter after a trip. They must also know when to call for maintenance. Lack of awareness can lead to unsafe practices or accidental damage. Basic training can go a long way in ensuring safe operation.

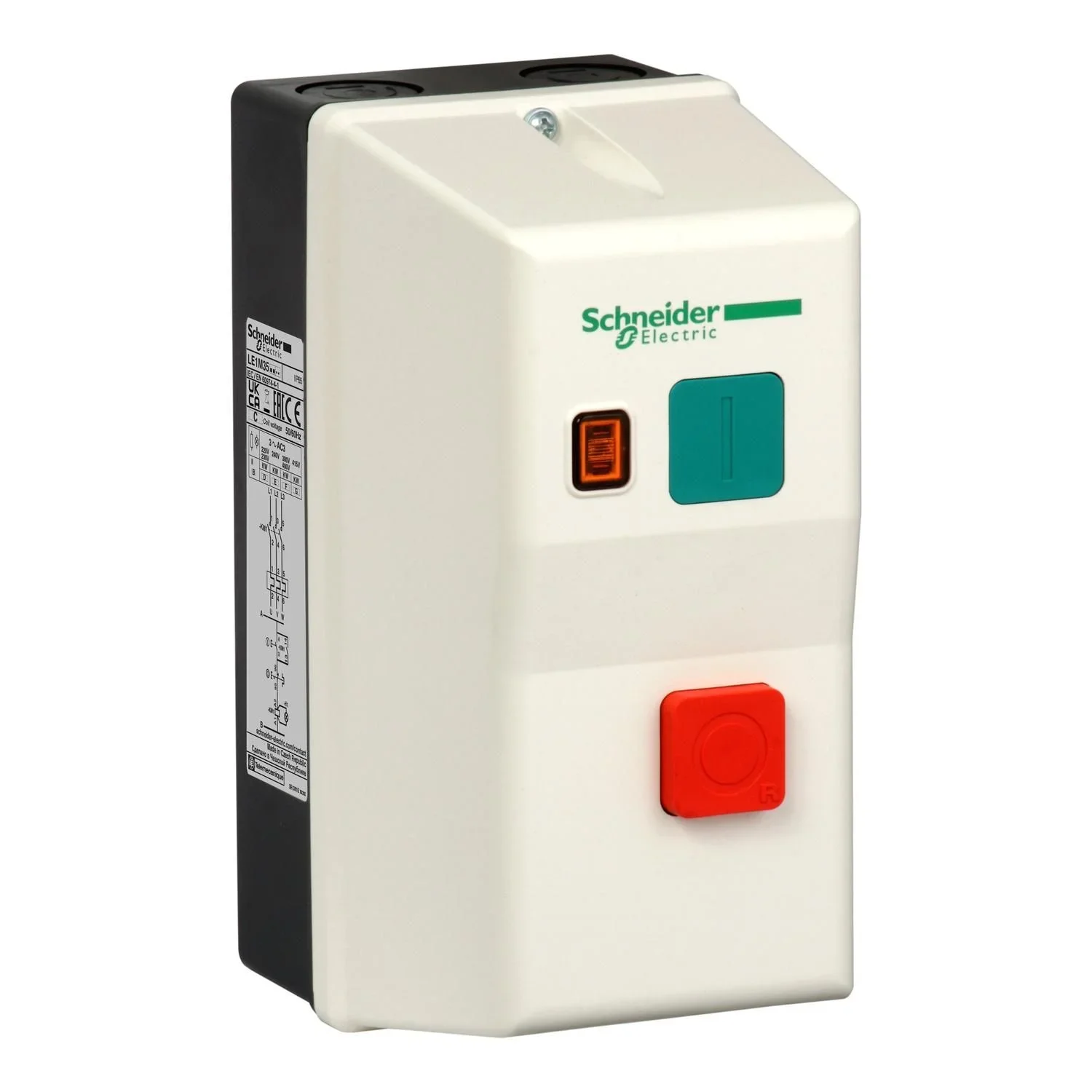

Schneider DOL Starter

Many brands manufacture DOL starters, but Schneider DOL starter products are well-known in the market. Schneider Electric is recognised for producing reliable and durable starters suitable for a wide range of industries. These starters often come with added safety features, good-quality components, and clear instructions, making them a trusted choice for electricians and industries alike.

Choosing a Schneider DOL starter gives peace of mind because of the brand’s reputation and the quality of its components.

Also Read: Different Types of Motor Starters Explained

Conclusion

The DOL starter remains a solid choice in many industries where simplicity, cost, and reliability are important. Knowing how DOL starter works, understanding the advantages of DOL starter, and being aware of the disadvantages of DOL starter allows for better decisions when selecting motor starting equipment.

Whether it’s a small workshop, a farm, or a light industrial setting, the DOL motor starter continues to play an important role. For those looking for quality, Schneider DOL starter options are often recommended for their durability and trusted performance. So, shop today from the eShop of Schneider Electric and get the best quality.

FAQ's

Q1. Can a DOL starter be used with single-phase motors?

Ans: No, DOL starters are specifically designed for three-phase motors. Single-phase motors require different types of starters, such as capacitor start or manual starters, tailored to their unique wiring and operational needs.

Q2. What safety precautions should be taken when installing a DOL starter?

Ans: Always disconnect the power supply before installation. Ensure proper earthing, check for correct voltage rating, and follow manufacturer wiring diagrams. It's also crucial to test the overload relay settings based on motor specifications to avoid nuisance tripping or motor damage.

Q3. Can a DOL starter be used with variable frequency drives (VFDs)?

Ans: No, DOL starters and VFDs serve different purposes. While a DOL starter provides a simple on/off function at full voltage, a VFD controls motor speed and torque. Using them together is unnecessary and could interfere with VFD performance.
