Differences between MCB and MCCB
When working with electric circuits, it is essential to follow protocol and install appropriate safety measures. One such safety measure is using self-operating electrical switches. They are quite effective in protecting appliances from sudden electrical surges, thus preventing accidents.
Miniature Circuit Breakers (MCBs) and Molded Case Circuit Breakers (MCCBs) are such switches that are widely used across the globe. While their workings are very similar, they do have several differences.
What is MCB
An MCB, or Miniature Circuit Breaker, is a compact, automatic electrical switch that protects electrical circuits from overload or short circuits in homes and small commercial setups. It’s commonly used in domestic wiring where load current is relatively low.
Key Features of MCB
MCB stands for Miniature Circuit Breaker, designed to handle lower currents typically below 100 amps. It automatically trips when detecting faults, preventing electrical hazards. An MCB exhibits the following features.
Trip Mechanism
MCBs use a bimetallic strip and solenoid-based electromagnetic mechanism to trip when excessive current flows. This mechanism allows quick disconnection of the faulty circuit. The thermal element responds to prolonged overload. On the other hand, the magnetic coil reacts instantly to short circuits. This ensures dual protection. The dual-trip mechanism adds efficiency and reliability to modern electrical systems.
Rating Range
MCBs are usually available in current ratings ranging from 0.5A to 100A with breaking capacities between 3kA and 10kA. They are ideal for low-voltage applications. Different types such as B, C, and D curves are available to suit various load types. This wide range ensures that MCBs can be effectively used in diverse electrical environments.
Compact and Maintenance-Free
MCBs are compact in size, easy to install, and typically require little to no maintenance. This makes them highly suitable for household installations. They occupy minimal space in distribution boards and have a longer service life. Their enclosed construction prevents dust accumulation and ensures consistent performance with minimal intervention.
Resettable and Reusable
Unlike fuses, which must be replaced after each fault, MCBs can simply be reset by toggling the switch. This makes them cost-effective and convenient. They eliminate the need for spare parts and reduce downtime. This makes them ideal for frequent or unpredictable faults.
What is MCCB
MCCB full form is for Molded Case Circuit Breaker. It offers protection for higher current applications. The device is designed for use in industrial and commercial systems with current ratings exceeding 100 amps. MCCBs also allow adjustable trip settings.
Key Features of MCCB
Molded Case Circuit Breakers (MCCBs) are crucial components in industrial and commercial power systems. They provide reliable protection against electrical faults in high-load environments. Their flexibility, high breaking capacity, and ability to handle extreme conditions make them indispensable in safeguarding equipment. They also help maintain system integrity and ensure operational continuity.
Adjustable Trip Settings
MCCBs come with thermal-magnetic trip mechanisms that can be adjusted to match the system’s load requirements. This offers greater flexibility. It ensures tailored protection and minimizes unnecessary tripping. This makes them perfect for varied load conditions in dynamic industrial operations.
Application in High-Power Systems
MCCBs are used in industrial setups, factories, and high-rise buildings where high electrical load management and safety are crucial. Their adaptability and rugged design make them suitable for large motor control centers and distribution panels in mission-critical systems.
High Breaking Capacity
The breaking capacity of MCCBs ranges from 10kA to 100kA. This allows them to interrupt high fault currents effectively without damage. The capability ensures the electrical system remains protected even during severe fault conditions. This minimizes the risk of fire or equipment failure.
Protection Beyond Overload
Besides overload and short circuits, MCCBs offer ground fault and phase failure protection in complex installations. These advanced features enhance system safety, particularly in three-phase networks and sensitive industrial automation systems where consistent power is vital.

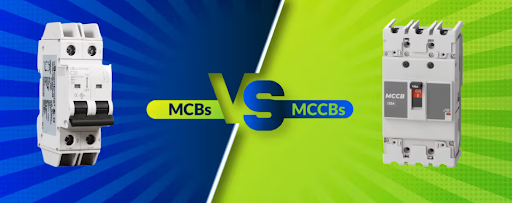

Difference Between MCB and MCCB
| Point of Difference | MCB | MCCB |
|---|---|---|
| Full Form | Miniature Circuit Breaker | Moulded Case Circuit Breaker |
| Definition | An automatic electrical switch designed to protect low-voltage circuits and appliances from overcurrent and short circuits | A circuit breaker that protects higher current circuits from electrical overloads and short circuits |
| Current Rating | Usually up to 125A | Typically ranges from 16A to 1600A |
| Short Circuit Time | Faster turn-around time (milliseconds) | Slower turn-around time (milliseconds to seconds) |
| Short Circuit Current Rating | Lower short circuit current ratings, up to 15kA | Higher short circuit current ratings, often up to 100kA |
| Remote Operation | Usually not equipped with remote operation capabilities | May have remote operation options for opening and closing the circuit breaker |
| Interrupting Current Rating | Lower interrupting capacity compared to MCCBs, often up to 1800A. | Higher interrupting capacity, suitable for more demanding applications, often going up to 200kA. |
| Number of Poles | Usually 1, 2, or 3-poles | Typically 3-poles (some models may have 4-poles) |
| Trip Circuit | Fixed tripping circuits | Movable tripping circuits |
| Trip Characteristics | Fixed, non-adjustable trip characteristics, generally suitable for general-purpose applications | Adjustable or fixed trip characteristics, suitable for various applications and coordination needs |
| Applications | Residential, commercial, and light industrial applications that require lower current requirements. | Industrial, commercial, and heavy-duty applications that require higher current ratings and better protection capabilities. |
- The maximum current that the MCB and the MCCB can draw without facing a disruption also differs. The current rating of an MCB is 100 amperes, while an MCCB has a current rating of between 10 to 200 amperes.
- They have a major difference when it comes to their interrupt rating - the maximum current that a self-operating electrical switch can block without malfunctioning.
- An MCCB comes with an interrupt rating between 10k to 200k amperes, whereas the interrupt rating of an MCB is up to 1800 amperes. Therefore, the MCCB is commonly used for industrial purposes like heavy-duty appliances and machinery, while the MCB is best for lower electrical loads and smaller appliances.
- If you want to know a 100a MCCB price Schneider Electric is the place to look.
- The tripping circuit is one of the most vital components of self-operating switches. It causes the circuit to break during abnormal operating conditions. An MCB contains a fixed tripping circuit, whereas an MCCB has a movable tripping circuit.
- The pole in circuit breakers refers to the number of switching and safety phases it contains to maximize protection. An MCB usually has 1, 2, or 3 poles, while the MCCB can have up to 4 poles. Schneider Electric offers attractive deals on MCCB 100 amp 3 pole price and MCCB 63 amp 4 pole price.
- MCB automatically turns off during abnormal conditions, like electrical surges and extremely high voltage conditions. When the amount of electricity flowing through the live circuit is high, it disconnects the circuit to stop the flow of electricity. It can also detect short circuits and breaks the circuit, thereby stopping an electrical surge to appliances and prevents electrocutions.
- MCCBs, on the other hand, prevent overloading and overheating of the electrical circuit. It contains bimetallic components which expand and contract as a response to overloading within a circuit. Under normal conditions, the MCCB allows an open flow of electricity, but an overload in the circuit heats the MCCB. This causes the bimetallic components to prevent the flow of electricity until the overload subsides, allowing the MCCB to cool down.
- Unlike MCBs, MCCBs can be remotely operated by shunt wires.
MCB or MCCB: Which is Better for Your Application?
It’s essential to understand what is MCB and what is MCCB. The MCB full form is Miniature Circuit Breaker, and the MCCB full form is Molded Case Circuit Breaker. These breakers differ significantly in functionality, making it crucial to compare MCB and MCCB for your electrical needs. Let’s explore what is the difference between MCB and MCCB, their features, and where each fits best.
Nature of Load
Choose an MCB for standard home or office loads like lighting and small appliances. An MCCB circuit breaker is more suitable due to higher current tolerance for large motors or industrial equipment. Miniature circuit breaker vs molded case circuit breaker becomes evident when managing high power requirements or heavy machinery under continuous operation.
Trip Settings
If you need adjustable trip settings for different load profiles, MCCB offers flexibility. On the other hand, MCBs do not. MCCBs come with thermal and magnetic trip units that allow precise calibration. This makes them ideal for industrial environments where customized protection is critical. It reinforces the features of MCCB over standard features of MCB.
Installation Scale
MCBs suit small installations like homes and small offices. On the other hand, MCCBs are designed for large-scale systems such as factories and commercial buildings. What is the difference between MCB and MCCB is clearly seen in scale- MCCBs can handle high load capacities with ease and safety.
Budget Considerations
MCBs are cost-effective and provide adequate protection for low-load applications. MCCBs, though more expensive, are essential for ensuring safety in high-load conditions. This cost difference is justified by the advanced features of MCCB, such as higher breaking capacity and customizable settings, especially in high-risk power systems.
Maintenance Needs
MCBs are largely maintenance-free. This makes them convenient for residential users. In contrast, MCCBs used in industrial setups need periodic testing and inspection due to their complex trip mechanisms. This highlights another of the key features of MCCB- it offers more reliability but demands professional maintenance for long-term performance and safety.
Conclusion
Both MCB and MCCB are great when it comes to protecting your electrical appliances and you from accidents. Hopefully, the differences listed above will help you to understand which one is best for your requirements. But make sure you always buy from authentic places like Schneider Electric. Browse through our Schneider Electric eShop for the complete range of products.
FAQs
Q. Can MCB and MCCB be used interchangeably?
Ans: MCB and MCCB serve different purposes. MCBs are used for smaller current applications, whereas MCCBs are designed for higher current systems. It’s crucial to compare MCB and MCCB specifications before selecting one.
Q. What is the breaking capacity of MCB vs. MCCB?
Ans: The breaking capacity of an MCB typically ranges from 3kA to 10kA. On the other hand, an MCCB can handle 10kA to 100kA, making it more reliable in large systems. Understanding the difference between MCB and MCCB helps ensure safety.
Q. Does MCCB offer better protection than MCB?
Ans: MCCB circuit breakers offer better protection due to their higher current rating and adjustable trip settings. MCCB provides enhanced safety over an MCB for complex electrical systems.
Q. Which is better for home use: MCB or MCCB?
Ans: MCB is better for home use due to its compact design and suitability for lower current needs. MCCB is unnecessary unless the home system has high-powered devices or industrial machinery installed.
Q. How do you choose between MCB and MCCB for an application?
Ans: You must assess current rating, application size, fault level, and safety requirements. For regular use, an MCB is sufficient. MCCBs are essential for industrial and commercial systems.
