4P CONTACTOR 75A AC1 (4NO) 220V WB

Share
In stock
SKU
LC1E40004M5WBIN
Regular Price ₹ 9,280 Special Price ₹ 7,888
15% Off ( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY

Main
range
EasyPact

product name
EasyPact TVS

product or component type
Contactor

device short name
LC1E

contactor application
Resistive load

utilisation category
AC-1

poles description
4P

power pole contact composition
4 NO

[Ue] rated operational voltage
Power circuit: <= 690 V AC 50/60 Hz

[Ie] rated operational current
75 A (at <40 °C) at <= 415 V AC AC-1 for power circuit

control circuit type
AC at 50 Hz wide range

height
127 mm

width
85 mm

depth
110 mm

net weight
1.3 kg

colour
Grey (RAL 7011)

Complementary
auxiliary contact composition
Without

[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947

[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1

overvoltage category
III

Irms rated making capacity
400 A at 440 V AC for power circuit conforming to IEC 60947-4-1

rated breaking capacity
320 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current
320 A 40 °C - 10 s for power circuit
165 A 40 °C - 60 s for power circuit
72 A 40 °C - 600 s for power circuit

associated fuse rating
80 A gG at <= 690 V coordination type 1 for power circuit

average impedance
1.5 mOhm - Ith 75 A 50 Hz for power circuit

power dissipation per pole
5.4 W AC-1

control circuit voltage limits
Drop-out: 0.3...0.6 Uc at 50 Hz (at <55 °C)
Operational: 0.7...1.25 Uc at 50 Hz (at <55 °C)

operating time
20...26 ms on closing
8...12 ms on opening

mechanical durability
5 Mcycles

maximum operating rate
1200 cyc/h 60 °C

inrush power in VA
160 VA 50 Hz cos phi 0.75 (at 20 °C)

hold-in power consumption in VA
15 VA 50 Hz cos phi 0.3 (at 20 °C)

heat dissipation
6…10 W for control circuit

electrical durability
0.35 Mcycles AC-1

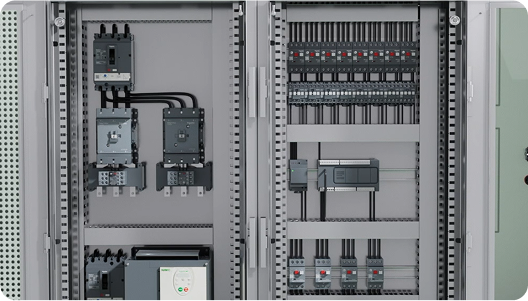

mounting support
DIN rail
Plate

connections - terminals
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: solid

tightening torque
Control circuit: 1.2 N.m
Power circuit: 5 N.m

Environment
standards
IEC 60947-5-1
IEC 60947-4-1

product certifications
EAC

IP degree of protection
IP20 conforming to IEC 60529

protective treatment
TH conforming to IEC 60068

pollution degree
3

ambient air temperature for operation
-5…55 °C

ambient air temperature for storage
-60…80 °C

permissible ambient air temperature around the device
-20…70 °C at Uc

operating altitude
3000 m

fire resistance
850 °C conforming to IEC 60695-2-1

mechanical robustness
Vibrations contactor open: 1.5 Gn, 5...300 Hz
Vibrations contactor closed: 3 Gn, 5...300 Hz
Shocks contactor open: 6 Gn for 11 ms
Shocks contactor closed: 7 Gn for 11 ms
More Information
Product Name 4P CONTACTOR 75A AC1 (4NO) 220V WB
Category Contactors
Tax Class GST-18
Range Name TeSys
Color White
