EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 24 V AC coil
SKU :
LC1E0910B5
Loading...
No sellers found for this product.
AEDÂ 65.37
AEDÂ 46.00
Excl. Tax
Free Shipping
To View the best prices please Sign in / Register.
Shipping:
Out of stock
09A TP AC3 Contactor AC3 24V AC Coil
EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 24 V AC coil
AEDÂ 65.37
AEDÂ 46.00
- Description
- Specifications
- Documents
- Reviews
Description

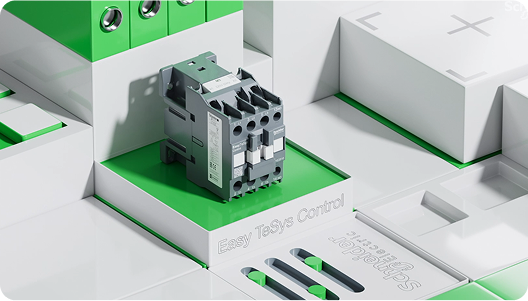

Easy TeSys Control Contactors
The Easy TeSys Control up to 630A for AC3 (335kW/400V) and 1000A for AC1 applications range provides you a perfect balance of the performances you need, with simplicity of selection, purchasing and stocking, and with an extended flexibility.
Direct Mounting
The complete range offers optional direct mounting under contactors, class 10A, Multi standard compliance.
Contactor Ratings
Contactor 3 Pole: Current Rating: 6A to 630A, AC3 Rating. Contactor 4 Pole: Current Rating: 16A to 125A, AC1 duty.
Compact Strength
One size from 0,37 to 15kW. Width = 44,5 mm. Icu breaking capacity up to 100kA.
Enhance your power solutions with our extensive range of accessories
Earth leakage protection
Direct rotary handle
Auxiliary contact
Gain peace of mind, quality, and value for your installations

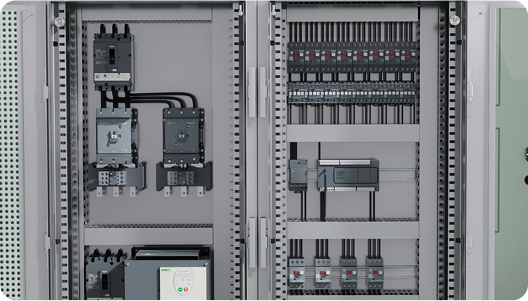

LV motor starters made easy
Easy TeSys delivers the adjusted capabilities to meet most LV motor control needs. Its motor starter components deliver the optimal balance between performance and cost without compromising quality.
Easy TeSys is the exact fit, providing you:
- The performance you need
- For an optimised budget
- With the quality you demand
High Fault Protection
Lorem Ipsum is simply dummy text of the printing and
Modular Design
Lorem Ipsum is simply dummy text of the printing and
Enhanced Safety
Lorem Ipsum is simply dummy text of the printing and
Overview
| Activity | PPCTR |
|---|---|
| Part Number | LC1E0910B5 |
| Weight | 350.0 g |
| Package1 Length*Width*Height | 7.5 cm x 5.2 cm x 8.5 cm |
| Country of Manufacturing | India |
| [Ie] rated operational current | 9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit, 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Ith] conventional free air thermal current | 25 A (at 55 °C) for power circuit |
| [Uc] control circuit voltage | 24 V AC 50 Hz |
| [ue] Rated Operational Voltage | power circuit: <= 690 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| ambient air temperature for operation | -5-55 °C |
| ambient air temperature for storage | -60-80 °C |
| associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1, 20 A gG at <= 690 V coordination type 1 for power circuit |
| auxiliary contact composition | 1 NO |
| average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| colour | grey (RAL 7011) |
| connections - terminals | power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end |
| contactor application | resistive load, motor control |
| control circuit type | AC at 50 Hz |
| control circuit voltage limits | 0.85...1.1 Uc (55-55 °C):operational 50 Hz, 0.3...0.6 Uc (55-55 °C):drop-out 50 Hz |
| Depth | 80 mm |
| device short name | LC1E |
| electrical durability | 1400000 cycles AC-3, 150000 cycles AC-1 |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| heat dissipation | 2-3 W for control circuit |
| Height | 74 mm |
| hold-in power consumption in VA | 8.3-8.3 VA 50 Hz cos phi 0.3 (at 20 °C), 8.5-8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| inrush power in VA | 95-95 VA 50 Hz cos phi 0.75 (at 20 °C), 95-95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| insulation resistance | > 10 MOhm for control circuit |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Irms rated making capacity | 90 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| maximum operating rate | 1800 cyc/h 60 °C |
| mechanical durability | 10000000 cycles |
| mechanical robustness | vibrations contactor open: 1.5 Gn, 5...300 Hz, vibrations contactor closed: 3 Gn, 5...300 Hz, shocks contactor open: 7 Gn for 11 ms, shocks contactor closed: 10 Gn for 11 ms |
| minimum switching current | 5 mA for control circuit |
| minimum switching voltage | 17 V for control circuit |
| motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz (AC-3), 4 kW at 380...400 V AC 50/60 Hz (AC-3), 4 kW at 415 V AC 50/60 Hz (AC-3), 4 kW at 440 V AC 50/60 Hz (AC-3), 5.5 kW at 500 V AC 50/60 Hz (AC-3), 5.5 kW at 660...690 V AC 50/60 Hz (AC-3) |
| mounting support | DIN rail, plate |
| net weight | 0.3 kg |
| non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact, 1.5 ms on de-energisation guaranteed between NC and NO contact |
| operating altitude | 3000 m without derating |
| operating time | 12...22 ms on closing, 4...19 ms on opening |
| overvoltage category | III |
| permissible ambient air temperature around the device | -20-70 °C at Uc, -60-80 °C storage, -5-55 °C operation |
| pole contact composition | 3 NO |
| Poles Description | 3P |
| pollution degree | 3 |
| power dissipation per pole | 0.2 W AC-3, 1.6 W AC-1 |
| product certifications | CE, EAC |
| product or component type | contactor |
| protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 |
| Range | EasyPact |
| rated breaking capacity | 72 A at 440 V for power circuit conforming to IEC 60947 |
| rated operational voltage limits | power circuit: <= 690 V AC 50/60 Hz |
| standards | IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1 |
| tightening torque | power circuit: 1.2 N.m, control circuit: 1.2 N.m |
| utilisation category | AC-3, AC-1 |
| width | 45 mm |
| [Icw] rated short-time withstand current | 105 A 40 °C - 10 s for power circuit, 61 A 40 °C - 60 s for power circuit, 30 A 40 °C - 600 s for power circuit |
| standards | IEC 60947-5-1, IEC 60947-4-1, IEC 60947-1 |
| [Ie] rated operational current | 9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit, 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| insulation resistance | > 10 MOhm for control circuit |
| mechanical robustness | vibrations contactor open (1.5 Gn, 5...300 Hz) , vibrations contactor closed (3 Gn, 5...300 Hz) , shocks contactor open (7 Gn for 11 ms) , shocks contactor closed (10 Gn for 11 ms) |
| Electrical Durability | 1400000 cycles AC-3, 150000 cycles AC-1 |
