TeSys D control relay - 5 NO - <= 690 V - 110 V DC standard coil
Description
TeSys Deca Control Relays
TeSys Deca Control Relays for AC or DC control circuits (AC15, DC13) is a global market leader's innovative motor control and management solution. TeSys offers connected, efficient products and solutions for switching and protection of motors and electrical loads in compliance with all major global electrical standards.
Efficiency
These relays offer versatile configurations with up to five contacts, including various combinations of normally open (NO) and normally closed (NC) contacts, ensuring simultaneous action between them.
Worldwide Compliance
TeSys Deca control relays are designed for AC or DC control circuits, conforming to international standards such as IEC60947 5 1, NFC63 140, VDE0660, BS4794, EN60947 5, UL, and CSA.
Ensuring Safety
By integrating advanced automation solutions with optimized power distribution frameworks, these systems ensure smoother operation, reduced energy consumption, and improved reliability across industrial applications.

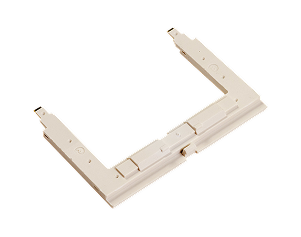

Enhance your power solutions with our extensive range of accessories

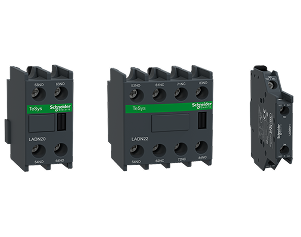

Auxiliary Contact Blocks

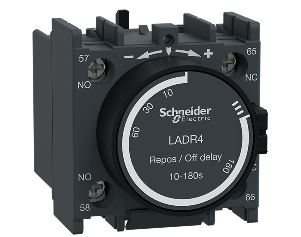

Time delay auxiliary contact block
Line transient suppressor
Gain peace of mind, quality, and value for your installations
High-Performance relays with Global Standards
They support a wide range of coil voltages AC, DC, and low consumption options, making them adaptable to different control requirements. The relays feature instantaneous contacts and can be complemented with auxiliary contact blocks that offer both instantaneous and time delay functions.
Operating reliably across a broad temperature range from 40°C to 70°C, TeSys Deca relays also come with a variety of accessories and spare parts, such as replacement coils, to support maintenance and customization needs.
High performance
Lorem Ipsum is simply dummy text of the printing and
Compact Dimensions
Lorem Ipsum is simply dummy text of the printing and
Continuity of service
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Activity | PPCTR |
|---|---|
| Part Number | CAD50FD |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) |
| [Uc] control circuit voltage | 110 V DC |
| [Ui] rated insulation voltage | 600 V UL certified, 600 V CSA certified, 690 V conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| ambient air temperature for storage | -60-80 °C |
| associated fuse rating | 10 A gG conforming to IEC 60947-5-1 |
| compatibility code | CAD |
| connections - terminals | screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end, screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end |
| contactor application | control circuit |
| control circuit type | DC standard |
| control circuit voltage limits | 0.1...0.25 Uc (-40-70 °C):drop-out DC, 0.7...1.25 Uc (-40-60 °C):operational DC, 1...1.25 Uc (60-70 °C):operational DC |
| Depth | 93 mm |
| device short name | CAD |
| Height | 77 mm |
| IP degree of protection | IP2X front face conforming to VDE 0106 |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
| maximum operating rate | 180 cyc/mn |
| mechanical durability | 30 Mcycles |
| minimum switching current | 5 mA |
| minimum switching voltage | 17 V |
| mounting support | rail, plate |
| net weight | 0.58 kg |
| non-overlap time | 1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact |
| operating altitude | 0...3000 m |
| operating time | 53...72 ms coil energisation and NO closing, 16...24 ms coil de-energisation and NO opening |
| pole contact composition | 5 NO |
| product certifications | CB Scheme, CCC, UL, CSA, EAC, CE, UKCA |
| product or component type | control relay |
| protective treatment | TH conforming to IEC 60068 |
| Range | TeSys, TeSys Deca |
| range of product | TeSys D control relay |
| rated operational voltage limits | <= 690 V AC 25...400 Hz |
| tightening torque | 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm, 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 |
| utilisation category | AC-15, AC-14, DC-13 |
| width | 45 mm |
| [Icw] rated short-time withstand current | 100 A - 1 s, 120 A - 500 ms, 140 A - 100 ms |
| Hold-in power consumption in W | 5.4-5.4 W at 20 °C |
| Inrush power in W | 5.4-5.4 W (at 20 °C) |
| Time constant | 28 ms |
| ambient air temperature for operation | -40-60 °C, 60-70 °C with derating |
| standards | EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-5-1 |
| insulation resistance | > 10 MOhm |
| mechanical robustness | shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27, shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27, vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6, vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
