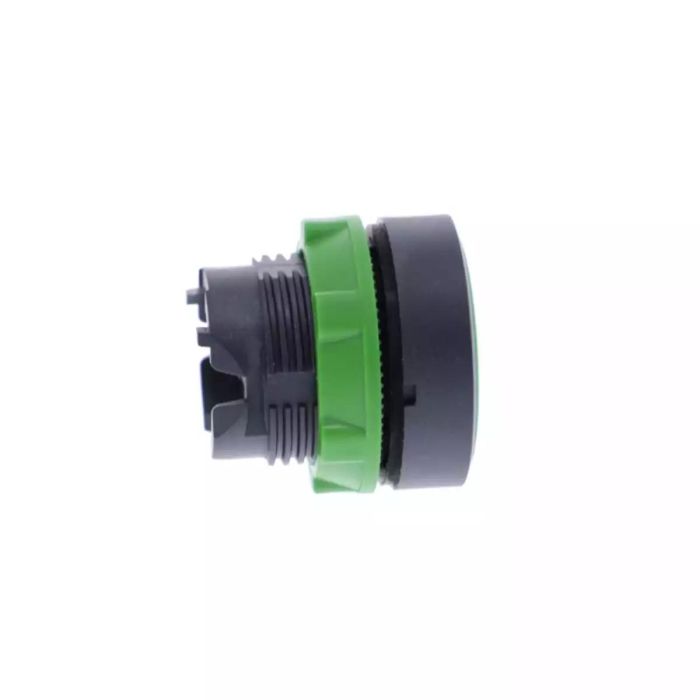

green flush pushbutton head Ã˜22 spring return "I"

green flush pushbutton head Ø22 spring return "I"

green flush pushbutton head Ø22 spring return "I"

Name: green flush pushbutton head Ø22 spring return "I"
Brand: Schneider Electric
SKU: ZB5AA331
Availability: InStock

ZB5AA331

Be the first one to review this.

KWD 0.000

Excl. Tax

To View the best prices please Sign in / Register.

No sellers found for this product.

Description

How to Video

Promotional Video

Product Details

Activity	IDSIG
Part Number	ZB5AA331
ambient air temperature for storage	-40-70 °C
bezel material	dark grey plastic
CAD overall depth	28 mm
CAD overall height	29 mm
CAD overall width	29 mm
cap/operator or lens colour	green
compatibility code	ZB5
device short name	ZB5
IK degree of protection	IK03 conforming to IEC 50102
IP degree of protection	IP66 conforming to IEC 60529, IP67, IP69, IP69K
marking	I
mechanical durability	10000000 cycles
mounting diameter	22 mm
net weight	0.018 kg
operator profile	green flush, I (white)
overvoltage category	class II conforming to IEC 60536
product certifications	DNV, LROS (Lloyds register of shipping), BV, UL listed, GL, CSA
product or component type	head for non-illuminated push-button
protective treatment	TH
range of product	Harmony XB5
sale per indivisible quantity	1
shape of signaling unit head	round
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
type of operator	spring return
NEMA degree of protection	NEMA 13, NEMA 4X
Group of product	flush push with marking
Customizable	0
Head type	standard
Resistance to high pressure washer	7000000 Pa at 55 °C, distance : 0.1 m
Colour of marking	white
Main group	push-button
Electrical composition code	C1 for <9 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, SF1 for <3 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting
Station name	XALD 1...5 cut-outs, XALK 2...5 cut-outs
vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
ambient air temperature for operation	-40-70 °C
standards	CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, JIS C8201-1
Device Presentation	basic element
