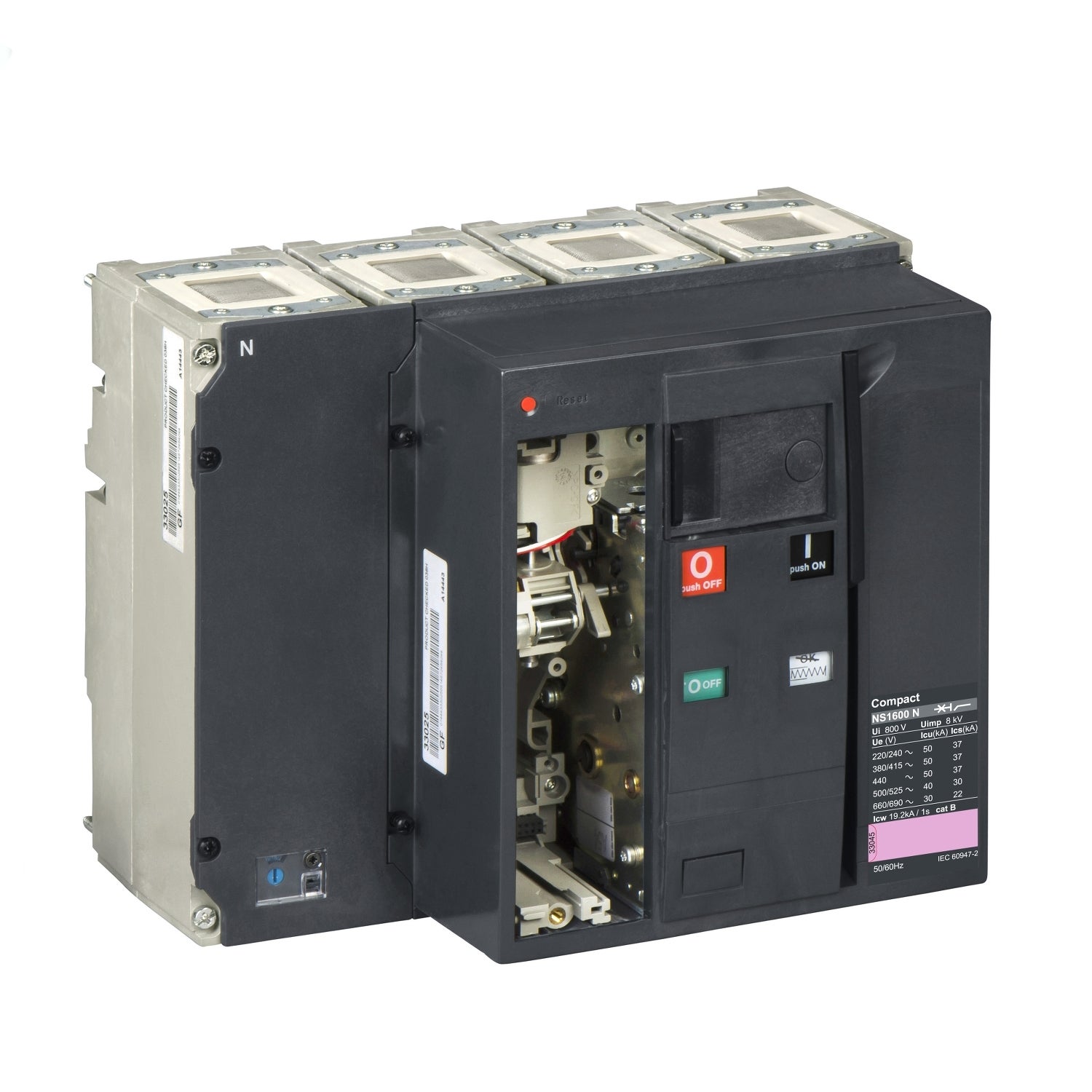

circuit breaker Compact NS1600N - 1600 A - 4 poles - fixed - without trip unit
SKU :
33314
Loading...
No sellers found for this product.
AEDÂ 17,364.86
AEDÂ 11,456.00
Excl. Tax
Free Shipping
To View the best prices please Sign in / Register.
Shipping:
Out of stock
NS1600 N 4P FIXED BASIC BREAKER ELEC. OP
circuit breaker Compact NS1600N - 1600 A - 4 poles - fixed - without trip unit
AEDÂ 17,364.86
AEDÂ 11,456.00
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
Overview
| Activity | PPCCB |
|---|---|
| Range | COMPACT |
| Range of product | COMPACT NS630B...1600 NEW GENERATION |
| Device short name | Compact NS1600N |
| Product or component type | BASIC FRAME |
| Device application | DISTRIBUTION |
| Number of poles | 4P |
| Neutral position | LEFT |
| [In] rated current | 1600 A AT 50 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 HZ |
| Network type | AC |
| Network frequency | 50/60 HZ |
| Suitability for isolation | YES CONFORMING TO EN/IEC 60947-2 |
| Utilisation category | CATEGORY B |
| Breaking capacity | 50 KA ICU AT 220/240 V AC 50/60 HZ CONFORMING TO IEC 60947-250 KA ICU AT 380/415 V AC 50/60 HZ CONFORMING TO IEC 60947-250 KA ICU AT 440 V AC 50/60 HZ CONFORMING TO IEC 60947-240 KA ICU AT 500/525 V AC 50/60 HZ CONFORMING TO IEC 60947-230 KA ICU AT 660/690 V AC 50/60 HZ CONFORMING TO IEC 60947-2 |
| Breaking capacity code | N 50 KA 415 V AC |
| Control type | ELECTRICALLY OPERATED |
| Mounting mode | FIXED |
| [Ui] rated insulation voltage | 1000 V AC 50/60 HZ CONFORMING TO IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 KV CONFORMING TO IEC 60947-2 |
| [Ics] rated service breaking capacity | 37 KA AT 220/240 V AC 50/60 HZ CONFORMING TO IEC 60947-2 (ELECTRICAL OPERATION)37 KA AT 380/415 V AC 50/60 HZ CONFORMING TO IEC 60947-2 (ELECTRICAL OPERATION)37 KA AT 440 V AC 50/60 HZ CONFORMING TO IEC 60947-2 (ELECTRICAL OPERATION)30 KA AT 500/525 V AC 50/60 HZ CONFORMING TO IEC 60947-2 (ELECTRICAL OPERATION)22 KA AT 660/690 V AC 50/60 HZ CONFORMING TO IEC 60947-2 (ELECTRICAL OPERATION) |
| [Icw] rated short-time withstand current | 19.2 KA 1 S CONFORMING TO IEC 60947-2 |
| Integral instant protection | 40 KA |
| Mechanical durability | 10000 CYCLES CONFORMING TO IEC 60947-2 |
| Electrical durability | 5000 CYCLES 440 V AC 50/60 HZ IN/2 CONFORMING TO IEC 60947-21000 CYCLES 690 V AC 50/60 HZ IN CONFORMING TO IEC 60947-22000 CYCLES 440 V AC 50/60 HZ IN CONFORMING TO IEC 60947-22000 CYCLES 690 V AC 50/60 HZ IN/2 CONFORMING TO IEC 60947-2 |
| Power losses | 74 W |
| Mounting support | BACKPLATE |
| Connection pitch | 70 MM |
| Protection type | WITHOUT PROTECTION |
| Height (H) | 327 MM |
| Width (W) | 280 MM |
| Depth (D) | 147 MM |
| Standards | IEC 60947-2 |
| Product certifications | ASTAASEFALCIE |
| Overvoltage category | III |
| Electrical shock protection class | CLASS II ON FRONT FACE |
| Pollution degree | 3 CONFORMING TO IEC 60947 |
| IP degree of protection | IP40 CONFORMING TO IEC 60529 |
| IK degree of protection | IK07 CONFORMING TO EN 50102 |
| Ambient air temperature for storage | -50…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 40.0 CM |
| Package 1 Width | 40.0 CM |
| Package 1 Length | 30.0 CM |
| Package 1 Weight | 15.059 KG |
| Warranty (in months) | 18 |
