High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 500A, standard version, 100…250V wide band AC/DC coil
Description
TeSys Giga Contactors
TeSys Giga series has been reimagined with the latest smart digital innovations to deliver a simpler, more sustainable, safe and secure customer experience for panel builders, consulting engineers, system integrators, facility managers and original equipment manufacturers (OEMs) further building on proven reliability and high electrical durability.
Flexibility
Available in Standard and Advanced versions, the latter offers more flexibility with direct control via traditional coil terminals A1-A2 or via PLC 24VDC input terminals, eliminating the need for an intermediate relay.
High reliability
Improved auxiliary contacts (17V, 1mA) improve reliability in harsh environments and meet high-density PLC input applications.
Diagnostics
Diagnostic functions provide access to predictable maintenance, featuring unique calculations that enable better diagnosis and detection of contact wear, tip wear level, coil under/over voltage, internal failure, and contactor status upon opening and closing.
Enhance your power solutions with our extensive range of accessories

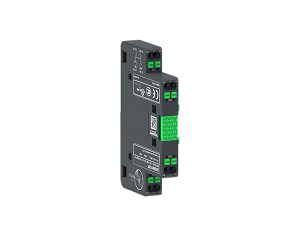

Auxiliary contact block

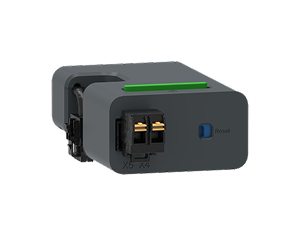

Remote Wear Diagnostic Module

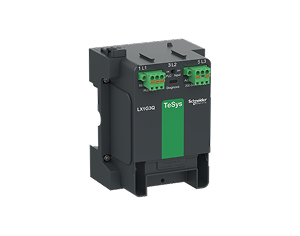

Control module
Gain peace of mind, quality, and value for your installations
Improve the reliability of your operations while simplifying your maintenance
TeSys Giga Contactors are designed to work with components and accessories with advanced performance. The characteristics of robustness and longevity are maintained, both in the connectors and in the switching.
Continuous local and remote monitoring of contact wear optimizes predictive maintenance by allowing you to replace contacts only, when necessary, facilitated by diagnostic visual indicator.
Fault type identification
Lorem Ipsum is simply dummy text of the printing and
Touch protection
Lorem Ipsum is simply dummy text of the printing and
Energy Efficient
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Activity | PPCTR |
|---|---|
| Part Number | LC1G500KUEN |
| [Ith] conventional free air thermal current | 700 A (at 40 °C) |
| [Uc] control circuit voltage | 100...250 V AC 50/60 Hz, 100...250 V DC |
| [Ui] rated insulation voltage | 1000 V |
| [Uimp] rated impulse withstand voltage | 8 kV |
| ambient air temperature for storage | -60-80 °C |
| associated fuse rating | 500 A aM at <= 440 V for motor, 400 A aM at <= 690 V for motor, 800 A gG at <= 690 V |
| auxiliary contact composition | 1 NO + 1 NC |
| average impedance | 0.00008 Ohm |
| coil technology | built-in bidirectional peak limiting |
| colour | dark grey |
| compatibility code | LC1G |
| connections - terminals | power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end |
| contactor application | power switching, motor control |
| control circuit voltage limits | operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C) |
| Depth | 226 mm |
| device short name | LC1G |
| Height | 225 mm |
| hold-in power consumption in VA | 15.5-15.5 VA |
| inrush power in VA | 750-750 VA |
| IP degree of protection | IP2X front face with shrouds conforming to IEC 60529, IP2X front face with shrouds conforming to VDE 0106 |
| Irms rated making capacity | 5090 A at 440 V |
| maximum operating rate | 500 cyc/h 60 °C, 300 cyc/h AC-1, 500 cyc/h AC-3, 500 cyc/h AC-3e, 150 cyc/h AC-4 |
| mechanical durability | 5 Mcycles, 8 Mcycles with sub-assembly substitution |
| motor power hp | 150 hp at 200/208 V 60 Hz, 200 hp at 230/240 V 60 Hz, 400 hp at 460/480 V 60 Hz, 450 hp at 575/600 V 60 Hz |
| motor power kW | 147 kW at 230 V AC 50/60 Hz (AC-3e), 250 kW at 400 V AC 50/60 Hz (AC-3e), 250 kW at 415 V AC 50/60 Hz (AC-3e), 280 kW at 440 V AC 50/60 Hz (AC-3e), 315 kW at 500 V AC 50/60 Hz (AC-3e), 355 kW at 690 V AC 50/60 Hz (AC-3e), 335 kW at 1000 V AC 50/60 Hz (AC-3e), 160 kW at 230 V AC 50/60 Hz (AC-3), 250 kW at 400 V AC 50/60 Hz (AC-3), 250 kW at 415 V AC 50/60 Hz (AC-3), 315 kW at 440 V AC 50/60 Hz (AC-3), 355 kW at 500 V AC 50/60 Hz (AC-3), 355 kW at 690 V AC 50/60 Hz (AC-3), 335 kW at 1000 V AC 50/60 Hz (AC-3), 150 kW at 230 V AC 50/60 Hz (AC-4), 250 kW at 400 V AC 50/60 Hz (AC-4), 250 kW at 415 V AC 50/60 Hz (AC-4), 295 kW at 440 V AC 50/60 Hz (AC-4), 295 kW at 500 V AC 50/60 Hz (AC-4), 355 kW at 690 V AC 50/60 Hz (AC-4), 280 kW at 1000 V AC 50/60 Hz (AC-4) |
| mounting support | plate |
| net weight | 7.5 kg |
| operating time | 40...70 ms closing, 15...50 ms opening |
| overvoltage category | III |
| permissible ambient air temperature around the device | -40-70 °C at Uc |
| pole contact composition | 3 NO |
| Poles Description | 3P |
| power dissipation per pole | 40 W AC-1 - Ith 700 A, 20 W AC-3 - Ith 500 A |
| product certifications | CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL |
| product or component type | contactor |
| protective treatment | TH |
| Range | TeSys |
| range of product | TeSys Giga |
| rated breaking capacity | 4600 A at 440 V |
| rated operational voltage limits | <= 1000 V AC 50/60 Hz, <= 460 V DC |
| tightening torque | 35 N.m |
| utilisation category | AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8a, AC-8b, DC-1, DC-3, DC-5 |
| width | 140 mm |
| [Icw] rated short-time withstand current | 4.0 kA - 10 s, 2.8 kA - 30 s, 2.2 kA - 1 min, 1.5 kA - 3 min, 1.2 kA - 10 min |
| Hold-in power consumption in W | 9.3-9.3 W |
| Inrush power in W | 660 W |
| Number of modules per PLC per PC | 0 |
| ambient air temperature for operation | -25-60 °C |
| standards | EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1 |
| [Ie] rated operational current | 700 A (at <40 °C) at <= 1000 V AC-1, 500 A (at <60 °C) at <= 400 V AC-3 |
| mechanical robustness | vibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed |
| Connection Pitch | 45 mm |
| Electrical Durability | 300 cycles AC-1 at Ue 400 V, 500 cycles AC-3 at Ue 400 V, 500 cycles AC-3e at Ue 400 V, 150 cycles AC-4 at Ue 400 V |
