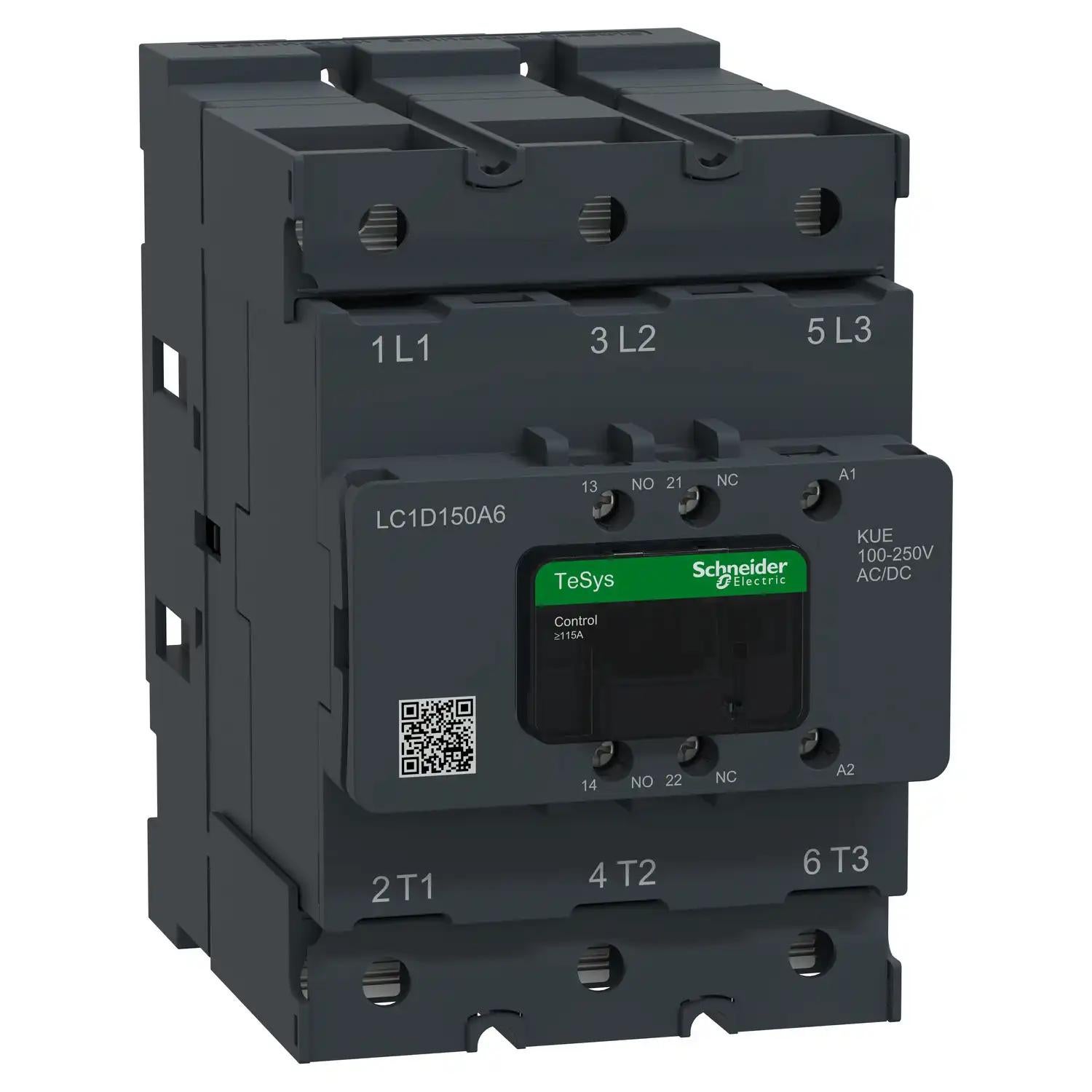

Name: Contactor Deca 150A 3P 100-250V ACDC Lug
Brand: Schneider Electric
SKU: LC1D150A6KUE
Price: 1593.602883 AED
Availability: InStock

Contactor Deca 150A 3P 100-250V ACDC Lug

Be the first one to review this.

SKU :

LC1D150A6KUE

Excl. Tax

To View the best prices please Sign in / Register.

Efficient solution combining robustness with ease of use, ensuring customers experience reliability without complexity Electronic wide-band coil withstands voltage fluctuations allows quick coil operating frequency and ensures long uptime Sustainability is advanced with 50% coil inrush savings. Compact size with robust EverLink power connection improves operational efficiency and eliminates future maintenance Unique QR code supports quick access to product data, anti-counterfeit checking and digital assets

Activity	PPCTR
Weight	2.39 Kg
Current (A)	150 (AC3e)
Voltage	100-250V AC/DC
Range	TESYS DECA
Range of product	TESYS DECA ADVANCED
Product or component type	CONTACTOR
Device short name	LC1D
Contactor application	MOTOR CONTROLRESISTIVE LOAD
Utilisation category	AC-3AC-3EAC-1AC-4DC-1DC-3DC-5
Poles description	3P
[Ue] rated operational voltage	POWER CIRCUIT:
[Ie] rated operational current	150 A (AT
[Uc] control circuit voltage	100...250 V AC 50/60 HZ100...250 V DC
Motor power kW	40 KW AT 230 V AC 50/60 HZ (AC-3)75 KW AT 400 V AC 50/60 HZ (AC-3)80 KW AT 415 V AC 50/60 HZ (AC-3)90 KW AT 440 V AC 50/60 HZ (AC-3)90 KW AT 500 V AC 50/60 HZ (AC-3)100 KW AT 690 V AC 50/60 HZ (AC-3)75 KW AT 1000 V AC 50/60 HZ (AC-3)40 KW AT 230 V AC 50/60 HZ (AC-3E)75 KW AT 400 V AC 50/60 HZ (AC-3E)80 KW AT 415 V AC 50/60 HZ (AC-3E)90 KW AT 440 V AC 50/60 HZ (AC-3E)90 KW AT 500 V AC 50/60 HZ (AC-3E)100 KW AT 690 V AC 50/60 HZ (AC-3E)75 KW AT 1000 V AC 50/60 HZ (AC-3E)37 KW AT 230 V AC 50/60 HZ (AC-4)75 KW AT 400 V AC 50/60 HZ (AC-4)75 KW AT 440 V AC 50/60 HZ (AC-4)75 KW AT 500 V AC 50/60 HZ (AC-4)80 KW AT 690 V AC 50/60 HZ (AC-4)65 KW AT 1000 V AC 50/60 HZ (AC-4)
Motor power hp	40 HP AT 200/208 V 60 HZ50 HP AT 230/240 V 60 HZ100 HP AT 460/480 V 60 HZ125 HP AT 575/600 V 60 HZ
Compatibility code	LC1D
Pole contact composition	3 NO
Protective cover	WITH
[Ith] conventional free air thermal current	200 A (AT 60 °C) FOR POWER CIRCUIT
Irms rated making capacity	1885 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947140 A AC FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1250 A DC FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1
Rated breaking capacity	1440 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current	350 A 40 °C - 10 MIN FOR POWER CIRCUIT600 A 40 °C - 1 MIN FOR POWER CIRCUIT1280 A 40 °C - 10 S FOR POWER CIRCUIT1800 A 40 °C - 1 S FOR POWER CIRCUIT100 A - 1 S FOR SIGNALLING CIRCUIT120 A - 500 MS FOR SIGNALLING CIRCUIT140 A - 100 MS FOR SIGNALLING CIRCUIT
Associated fuse rating	160 A AM AT
Average impedance	0.45 MOHM - ITH 200 A 50 HZ FOR POWER CIRCUIT
Power dissipation per pole	8 W AC-38 W AC-3E22 W AC-1
[Ui] rated insulation voltage	POWER CIRCUIT: 600 V CSA CERTIFIEDPOWER CIRCUIT: 600 V UL CERTIFIEDPOWER CIRCUIT: 1000 V CONFORMING TO IEC 60947-4-1SIGNALLING CIRCUIT: 690 V CONFORMING TO IEC 60947-1SIGNALLING CIRCUIT: 600 V CSA CERTIFIEDSIGNALLING CIRCUIT: 600 V UL CERTIFIED
Overvoltage category	III
Pollution degree	3
[Uimp] rated impulse withstand voltage	8 KV CONFORMING TO IEC 60947
Safety reliability level	B10D = 684932 CYCLES CONTACTOR WITH NOMINAL LOAD CONFORMING TO EN/ISO 13849-1B10D = 10000000 CYCLES CONTACTOR WITH MECHANICAL LOAD CONFORMING TO EN/ISO 13849-1
Mechanical durability	8 MCYCLES
Electrical durability	0.85 MCYCLES 150 A AC-3 AT UE
Control circuit type	AC AT 50/60 HZDC
Coil technology	BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR
Control circuit voltage limits	0.8 UC MIN...1.1 UC MAX (-40…60 °C):OPERATIONAL AC/DC0.1 UC MAX (-40…60 °C):DROP-OUT AC/DC
Inrush power in VA	170 VA (AT 20 °C)
Inrush power in W	105 W (AT 20 °C)
Hold-in power consumption in VA	8 VA (AT 20 °C)
Hold-in power consumption in W	4.5 W AT 20 °C
Heat dissipation	1.1 W AT 20 °C
Operating time	25...90 MS OPENING20...90 MS CLOSING
Maximum operating rate	2400 CYC/H AT 60 °C3600 CYC/H AT UC AT 20 ºC
Connections - terminals	POWER CIRCUIT: LUGS-RING TERMINALS - EXTERNAL DIAMETER: 25 MMPOWER CIRCUIT: BARS 1 - BUSBAR CROSS SECTION: 5 X 25 MMPOWER CIRCUIT: BARS 2 - BUSBAR CROSS SECTION: 5 X 25 MMCONTROL CIRCUIT: SCREW CLAMP TERMINALS 1 1…4 MM² - CABLE STIFFNESS: FLEXIBLE WITH CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 2 1…2.5 MM² - CABLE STIFFNESS: FLEXIBLE WITH CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 1 1…4 MM² - CABLE STIFFNESS: FLEXIBLE WITHOUT CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 2 1…4 MM² - CABLE STIFFNESS: FLEXIBLE WITHOUT CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 1 1…4 MM² - CABLE STIFFNESS: SOLID WITHOUT CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 2 1…4 MM² - CABLE STIFFNESS: SOLID WITHOUT CABLE END
Tightening torque	POWER CIRCUIT: 12 N.M - ON BARS HEXAGONAL SCREW HEAD 13 MM M8CONTROL CIRCUIT: 1.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER FLAT Ø 6 MMCONTROL CIRCUIT: 1.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER PHILIPS NO 2CONTROL CIRCUIT: 1.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER POZIDRIV NO 2
Auxiliary contact composition	1 NO + 1 NC
Auxiliary contacts type	TYPE MECHANICALLY LINKED 1 NO + 1 NC CONFORMING TO IEC 60947-5-1 TYPE MIRROR CONTACT 1 NC CONFORMING TO IEC 60947-4-1
Signalling circuit frequency	16.67...400 HZ
Minimum switching voltage	17 V FOR SIGNALLING CIRCUIT
Minimum switching current	5 MA FOR SIGNALLING CIRCUIT
Insulation resistance	> 10 MOHM FOR SIGNALLING CIRCUIT
Non-overlap time	1.5 MS ON DE-ENERGISATION BETWEEN NC AND NO CONTACT1.5 MS ON ENERGISATION BETWEEN NC AND NO CONTACT
Mounting support	PLATE
Standards	EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1UL 60947-5-1CSA C22.2 NO 60947-4-1CSA C22.2 NO 60947-5-1JIS C8201-4-1JIS C8201-5-1GB/T 14048.4GB/T 14048.5
Product certifications	CB SchemeCCCcULusCEUKCAEU-RO-MR by DNV-GL
IP degree of protection	IP20 FRONT FACE CONFORMING TO IEC 60529
Protective treatment	NONE CONFORMING TO IEC 60068-2-30
Climatic withstand	CONFORMING TO IACS E10 EXPOSURE TO DAMP HEAT CONFORMING TO IEC 60947-1 ANNEX Q CATEGORY D EXPOSURE TO DAMP HEAT
Permissible ambient air temperature around the device	-40…60 °C OPERATION60…70 °C WITH DERATING-60…80 °C STORAGE
Operating altitude	0...3000 M WITHOUT DERATING
Fire resistance	850 °C CONFORMING TO IEC 60695-2-11
Mechanical robustness	VIBRATIONS CONTACTOR OPEN (2 GN, 5...300 HZ) CONFORMING TO IEC 60068-2-6VIBRATIONS CONTACTOR CLOSED (4 GN, 5...300 HZ) CONFORMING TO IEC 60068-2-6SHOCKS CONTACTOR OPEN (10 GN FOR 11 MS) CONFORMING TO IEC 60068-2-27SHOCKS CONTACTOR CLOSED (15 GN FOR 11 MS) CONFORMING TO IEC 60068-2-27
Height	152 MM
Width	99 MM
Depth	155 MM
Net weight	2.2 KG
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	13.500 CM
Package 1 Width	18.500 CM
Package 1 Length	19.300 CM
Package 1 Weight	2.410 KG
Unit Type of Package 2	S03
Number of Units in Package 2	4
Package 2 Height	30.000 CM
Package 2 Width	30.000 CM
Package 2 Length	40.000 CM
Package 2 Weight	10.095 KG
Unit Type of Package 3	P06
Number of Units in Package 3	24
Package 3 Height	73.500 CM
Package 3 Width	60.000 CM
Package 3 Length	80.000 CM
Package 3 Weight	70.930 KG
Warranty (in months)	18

Sustainability	Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations.
Sustainable packaging	✓
Take-back	No
Mercury free	✓
RoHS exemption information	Yes (Download)
Halogen-free status	Halogen free plastic parts product
REACh Regulation	REACh Declaration (Download)
EU RoHS Directive	EU RoHS Declaration (Download)
End of life manual availability	End of Life Information (Download)
Total lifecycle Carbon footprint	363 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]	23.625762873530803
Carbon footprint of the manufacturing phase [A1 to A3]	24 kg CO2 eq.
Carbon footprint of the distribution phase [A4]	0.3648456602261538
Carbon footprint of the distribution phase [A4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [A5]	0.26500121783967584
Carbon footprint of the installation phase [A5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]	333.9103176655554
Carbon footprint of the use phase [B2, B3, B4, B6]	334 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4]	4.979688988919771
Carbon footprint of the end-of-life phase [C1 to C4]	5 kg CO2 eq.
SCIP Number	608af421-265e-4dfd-b0b3-1192c9364536
EU RoHS Directive	Compliant By Exemption
WEEE Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Activity	PPCTR
Weight	2.39 Kg
Current (A)	150 (AC3e)
Voltage	100-250V AC/DC
Range	TESYS DECA
Range of product	TESYS DECA ADVANCED
Product or component type	CONTACTOR
Device short name	LC1D
Contactor application	MOTOR CONTROLRESISTIVE LOAD
Utilisation category	AC-3AC-3EAC-1AC-4DC-1DC-3DC-5
Poles description	3P
[Ue] rated operational voltage	POWER CIRCUIT:
[Ie] rated operational current	150 A (AT
[Uc] control circuit voltage	100...250 V AC 50/60 HZ100...250 V DC
Motor power kW	40 KW AT 230 V AC 50/60 HZ (AC-3)75 KW AT 400 V AC 50/60 HZ (AC-3)80 KW AT 415 V AC 50/60 HZ (AC-3)90 KW AT 440 V AC 50/60 HZ (AC-3)90 KW AT 500 V AC 50/60 HZ (AC-3)100 KW AT 690 V AC 50/60 HZ (AC-3)75 KW AT 1000 V AC 50/60 HZ (AC-3)40 KW AT 230 V AC 50/60 HZ (AC-3E)75 KW AT 400 V AC 50/60 HZ (AC-3E)80 KW AT 415 V AC 50/60 HZ (AC-3E)90 KW AT 440 V AC 50/60 HZ (AC-3E)90 KW AT 500 V AC 50/60 HZ (AC-3E)100 KW AT 690 V AC 50/60 HZ (AC-3E)75 KW AT 1000 V AC 50/60 HZ (AC-3E)37 KW AT 230 V AC 50/60 HZ (AC-4)75 KW AT 400 V AC 50/60 HZ (AC-4)75 KW AT 440 V AC 50/60 HZ (AC-4)75 KW AT 500 V AC 50/60 HZ (AC-4)80 KW AT 690 V AC 50/60 HZ (AC-4)65 KW AT 1000 V AC 50/60 HZ (AC-4)
Motor power hp	40 HP AT 200/208 V 60 HZ50 HP AT 230/240 V 60 HZ100 HP AT 460/480 V 60 HZ125 HP AT 575/600 V 60 HZ
Compatibility code	LC1D
Pole contact composition	3 NO
Protective cover	WITH
[Ith] conventional free air thermal current	200 A (AT 60 °C) FOR POWER CIRCUIT
Irms rated making capacity	1885 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947140 A AC FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1250 A DC FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1
Rated breaking capacity	1440 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current	350 A 40 °C - 10 MIN FOR POWER CIRCUIT600 A 40 °C - 1 MIN FOR POWER CIRCUIT1280 A 40 °C - 10 S FOR POWER CIRCUIT1800 A 40 °C - 1 S FOR POWER CIRCUIT100 A - 1 S FOR SIGNALLING CIRCUIT120 A - 500 MS FOR SIGNALLING CIRCUIT140 A - 100 MS FOR SIGNALLING CIRCUIT
Associated fuse rating	160 A AM AT
Average impedance	0.45 MOHM - ITH 200 A 50 HZ FOR POWER CIRCUIT
Power dissipation per pole	8 W AC-38 W AC-3E22 W AC-1
[Ui] rated insulation voltage	POWER CIRCUIT: 600 V CSA CERTIFIEDPOWER CIRCUIT: 600 V UL CERTIFIEDPOWER CIRCUIT: 1000 V CONFORMING TO IEC 60947-4-1SIGNALLING CIRCUIT: 690 V CONFORMING TO IEC 60947-1SIGNALLING CIRCUIT: 600 V CSA CERTIFIEDSIGNALLING CIRCUIT: 600 V UL CERTIFIED
Overvoltage category	III
Pollution degree	3
[Uimp] rated impulse withstand voltage	8 KV CONFORMING TO IEC 60947
Safety reliability level	B10D = 684932 CYCLES CONTACTOR WITH NOMINAL LOAD CONFORMING TO EN/ISO 13849-1B10D = 10000000 CYCLES CONTACTOR WITH MECHANICAL LOAD CONFORMING TO EN/ISO 13849-1
Mechanical durability	8 MCYCLES
Electrical durability	0.85 MCYCLES 150 A AC-3 AT UE
Control circuit type	AC AT 50/60 HZDC
Coil technology	BUILT-IN BIDIRECTIONAL PEAK LIMITING DIODE SUPPRESSOR
Control circuit voltage limits	0.8 UC MIN...1.1 UC MAX (-40…60 °C):OPERATIONAL AC/DC0.1 UC MAX (-40…60 °C):DROP-OUT AC/DC
Inrush power in VA	170 VA (AT 20 °C)
Inrush power in W	105 W (AT 20 °C)
Hold-in power consumption in VA	8 VA (AT 20 °C)
Hold-in power consumption in W	4.5 W AT 20 °C
Heat dissipation	1.1 W AT 20 °C
Operating time	25...90 MS OPENING20...90 MS CLOSING
Maximum operating rate	2400 CYC/H AT 60 °C3600 CYC/H AT UC AT 20 ºC
Connections - terminals	POWER CIRCUIT: LUGS-RING TERMINALS - EXTERNAL DIAMETER: 25 MMPOWER CIRCUIT: BARS 1 - BUSBAR CROSS SECTION: 5 X 25 MMPOWER CIRCUIT: BARS 2 - BUSBAR CROSS SECTION: 5 X 25 MMCONTROL CIRCUIT: SCREW CLAMP TERMINALS 1 1…4 MM² - CABLE STIFFNESS: FLEXIBLE WITH CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 2 1…2.5 MM² - CABLE STIFFNESS: FLEXIBLE WITH CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 1 1…4 MM² - CABLE STIFFNESS: FLEXIBLE WITHOUT CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 2 1…4 MM² - CABLE STIFFNESS: FLEXIBLE WITHOUT CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 1 1…4 MM² - CABLE STIFFNESS: SOLID WITHOUT CABLE ENDCONTROL CIRCUIT: SCREW CLAMP TERMINALS 2 1…4 MM² - CABLE STIFFNESS: SOLID WITHOUT CABLE END
Tightening torque	POWER CIRCUIT: 12 N.M - ON BARS HEXAGONAL SCREW HEAD 13 MM M8CONTROL CIRCUIT: 1.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER FLAT Ø 6 MMCONTROL CIRCUIT: 1.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER PHILIPS NO 2CONTROL CIRCUIT: 1.7 N.M - ON SCREW CLAMP TERMINALS - WITH SCREWDRIVER POZIDRIV NO 2
Auxiliary contact composition	1 NO + 1 NC
Auxiliary contacts type	TYPE MECHANICALLY LINKED 1 NO + 1 NC CONFORMING TO IEC 60947-5-1 TYPE MIRROR CONTACT 1 NC CONFORMING TO IEC 60947-4-1
Signalling circuit frequency	16.67...400 HZ
Minimum switching voltage	17 V FOR SIGNALLING CIRCUIT
Minimum switching current	5 MA FOR SIGNALLING CIRCUIT
Insulation resistance	> 10 MOHM FOR SIGNALLING CIRCUIT
Non-overlap time	1.5 MS ON DE-ENERGISATION BETWEEN NC AND NO CONTACT1.5 MS ON ENERGISATION BETWEEN NC AND NO CONTACT
Mounting support	PLATE
Standards	EN/IEC 60947-4-1EN/IEC 60947-5-1UL 60947-4-1UL 60947-5-1CSA C22.2 NO 60947-4-1CSA C22.2 NO 60947-5-1JIS C8201-4-1JIS C8201-5-1GB/T 14048.4GB/T 14048.5
Product certifications	CB SchemeCCCcULusCEUKCAEU-RO-MR by DNV-GL
IP degree of protection	IP20 FRONT FACE CONFORMING TO IEC 60529
Protective treatment	NONE CONFORMING TO IEC 60068-2-30
Climatic withstand	CONFORMING TO IACS E10 EXPOSURE TO DAMP HEAT CONFORMING TO IEC 60947-1 ANNEX Q CATEGORY D EXPOSURE TO DAMP HEAT
Permissible ambient air temperature around the device	-40…60 °C OPERATION60…70 °C WITH DERATING-60…80 °C STORAGE
Operating altitude	0...3000 M WITHOUT DERATING
Fire resistance	850 °C CONFORMING TO IEC 60695-2-11
Mechanical robustness	VIBRATIONS CONTACTOR OPEN (2 GN, 5...300 HZ) CONFORMING TO IEC 60068-2-6VIBRATIONS CONTACTOR CLOSED (4 GN, 5...300 HZ) CONFORMING TO IEC 60068-2-6SHOCKS CONTACTOR OPEN (10 GN FOR 11 MS) CONFORMING TO IEC 60068-2-27SHOCKS CONTACTOR CLOSED (15 GN FOR 11 MS) CONFORMING TO IEC 60068-2-27
Height	152 MM
Width	99 MM
Depth	155 MM
Net weight	2.2 KG
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	13.500 CM
Package 1 Width	18.500 CM
Package 1 Length	19.300 CM
Package 1 Weight	2.410 KG
Unit Type of Package 2	S03
Number of Units in Package 2	4
Package 2 Height	30.000 CM
Package 2 Width	30.000 CM
Package 2 Length	40.000 CM
Package 2 Weight	10.095 KG
Unit Type of Package 3	P06
Number of Units in Package 3	24
Package 3 Height	73.500 CM
Package 3 Width	60.000 CM
Package 3 Length	80.000 CM
Package 3 Weight	70.930 KG
Warranty (in months)	18

Sustainability	Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations.
Sustainable packaging	✓
Take-back	No
Mercury free	✓
RoHS exemption information	Yes (Download)
Halogen-free status	Halogen free plastic parts product
REACh Regulation	REACh Declaration (Download)
EU RoHS Directive	EU RoHS Declaration (Download)
End of life manual availability	End of Life Information (Download)
Total lifecycle Carbon footprint	363 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]	23.625762873530803
Carbon footprint of the manufacturing phase [A1 to A3]	24 kg CO2 eq.
Carbon footprint of the distribution phase [A4]	0.3648456602261538
Carbon footprint of the distribution phase [A4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [A5]	0.26500121783967584
Carbon footprint of the installation phase [A5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]	333.9103176655554
Carbon footprint of the use phase [B2, B3, B4, B6]	334 kg CO2 eq.
Carbon footprint of the end-of-life phase [C1 to C4]	4.979688988919771
Carbon footprint of the end-of-life phase [C1 to C4]	5 kg CO2 eq.
SCIP Number	608af421-265e-4dfd-b0b3-1192c9364536
EU RoHS Directive	Compliant By Exemption
WEEE Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
