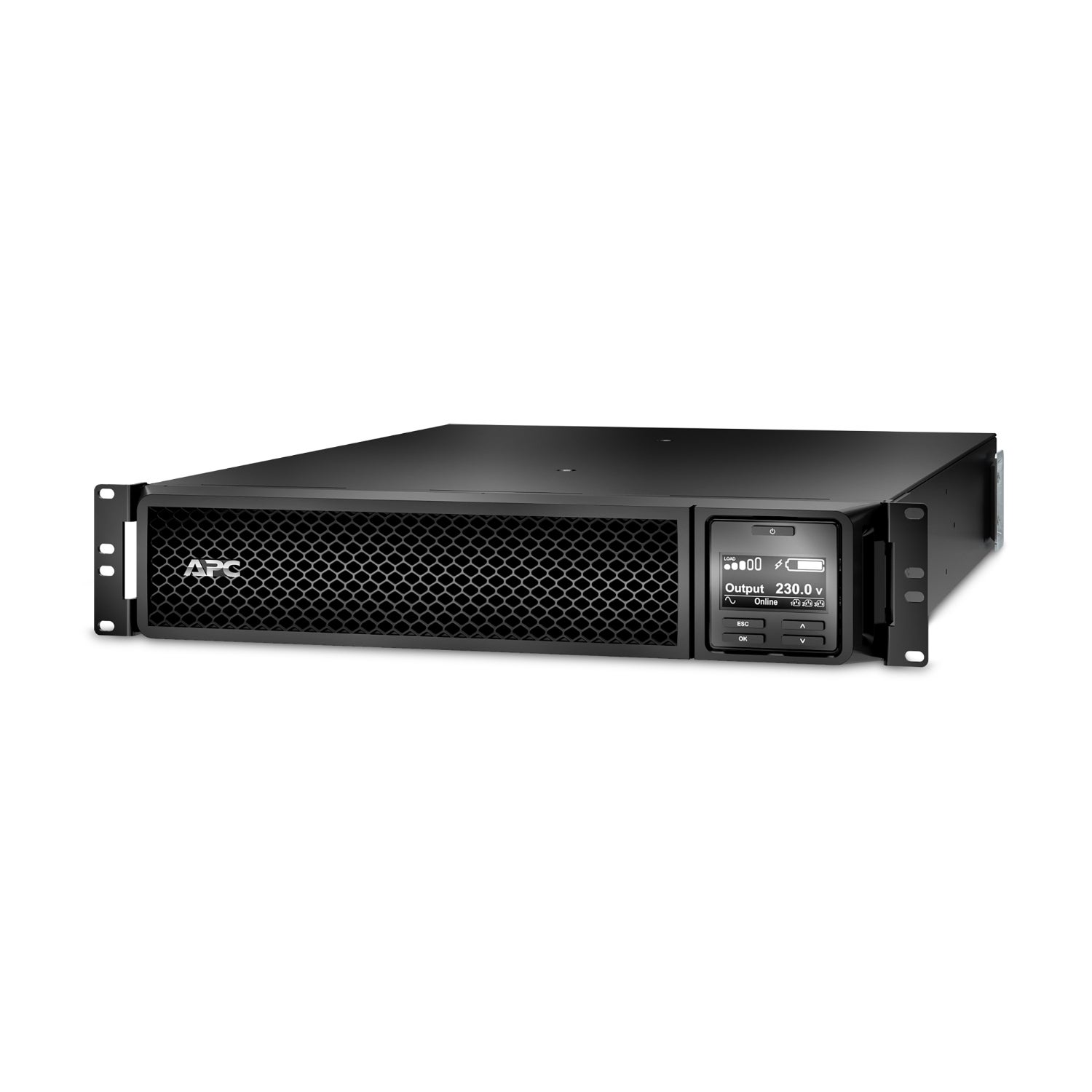

APC Smart-UPS SRT 2200VA RM 230V
SKU :
SRT2200RMXLI
Loading...
No sellers found for this product.
AEDÂ 0.00
Excl. Tax
Free Shipping
To View the best prices please Sign in / Register.
Shipping:
Out of stock
- 1. 2200VA/1980W double-conversion on-line pure sine wave 2U rackmount UPS
- 2. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- 3. Rack/Tower convertible (rail kit included)
- 4. Delivers clean power with zero transfer time for critical or sensitive devices
- 5. Add up to 10 external battery packs (SRT72RMBP) for extended runtime
- 6. Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
APC Smart-UPS SRT 2200VA RM 230V
AEDÂ 0.00
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
Overview
| Activity | SPBPP |
|---|---|
| Presentation | HIGH DENSITY, DOUBLE-CONVERSION ON-LINE POWER PROTECTION WITH SCALABLE RUNTIME. |
| Lead time | USUALLY IN STOCK |
| Main Input Voltage | 230 V AC 1 PHASE |
| Input voltage | 220 V240 V |
| Input Connection Type | BS1363A BRITISHIEC 60320 C20SCHUKO CEE 7 / EU1-16P |
| Input voltage limits | 100...275 V ADJUSTABLE (HALF LOAD) |
| Network frequency | 40...70 HZ AUTO-SENSING |
| Output voltage | 230 V AC 1 PHASE |
| Output voltage | 220 V240 V |
| Rated power in W | 1980 W |
| rated power in VA | 2200 VA |
| Output connection type | 8 IEC 60320 C132 IEC JUMPERS2 IEC 60320 C19 |
| Bypass type | BUILT-IN BYPASS |
| Crest factor | 3 : 1 |
| Harmonic distortion | LESS THAN 2 % |
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| UPS type | ON-LINE |
| Wave type | SINE WAVE |
| Output frequency | 50/60 HZ +/- 3 HZ SYNC TO MAINS |
| Battery type | LEAD-ACID INTERNAL INCLUDED |
| Emergency power off | YES |
| Free slots | 1 |
| Alarm | AUDIBLE AND VISIBLE ALARMS : PRIORITIZED BY SEVERITY |
| UPS connectivity | SERIAL PORTUSB PORT |
| Surge energy rate | 340 J |
| Number of rack unit | 2U |
| Cable length | 2.4 M |
| Number of cables | 1 |
| Colour | BLACK |
| Height | 85 MM |
| Width | 432 MM |
| Depth | 584 MM |
| Net weight | 25 KG |
| Mounting location | FRONT |
| Mounting preference | LOWER |
| Mounting mode | RACK-MOUNTED |
| USB compatible | YES |
| Mounting position | HORIZONTAL |
| Mounting mode | RACK-MOUNTED WITH KIT SOLD SEPARATELY |
| Provided equipment | CD WITH SOFTWARECOUNTRY-SPECIFIC DETACHABLE POWER CORDDOCUMENTATION CDINSTALLATION GUIDERACK MOUNTING HARDWARERACK MOUNTING BRACKETSRACK MOUNTING SUPPORT RAILSUSB CABLEWARRANTY CARD |
| Number of power module | 1400 |
| Additional specification | HIGH DENSITY |
| Redundant | NO |
| Range of product | SMART-UPS ON-LINE |
| Product or component type | UNINTERRUPTIBLE POWER SUPPLY (UPS) |
| Product certifications | CEEACRCMVDEUK PSTI |
| Marking | CE MARK |
| Standards | EN/IEC 62040-1:2019/A11:2021EN/IEC 62040-2:2006/AC:2006EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -20…50 °C |
| Storage altitude | 0…15240 M |
| IP degree of protection | IP20 |
| Relative humidity | 0…95 % NON-CONDENSING |
| Storage Relative Humidity | 0…95 % NON-CONDENSING |
| Acoustic level | 55 DBA |
| Heat dissipation | 535 BTU/H |
| Operating altitude | 0...10000 FT |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | LEAD-ACID BATTERY |
| Battery voltage | 72 V |
| Extended runtime | 1 |
| Number of battery filled slots | 1 |
| Battery recharge time | 3 H |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 YEAR(S) |
| Replacement battery | APCRBC141 |
| Battery charger power | 122 W RATED |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 24.6 CM |
| Package 1 Width | 59.9 CM |
| Package 1 Length | 81 CM |
| Package 1 Weight | 34.019 KG |
| Warranty (in months) | 24 BATTERY|36 UPS |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| RoHS exemption information | Yes (Download) |
| REACh Regulation | REACh Declaration (Download) |
| EU RoHS Directive | EU RoHS Declaration (Download) |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Total lifecycle Carbon footprint | 6 773 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 399.4587516923 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 399 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 4.4219304762 |
| Carbon footprint of the distribution phase [A4] | 4 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 6365.6701433279 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 6 366 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 3.8963435815 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 4 kg CO2 eq. |
| SCIP Number | 4282bd22-a353-4f82-bb5c-97bbd7f1d1e9 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive | Compliant By Exemption |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
