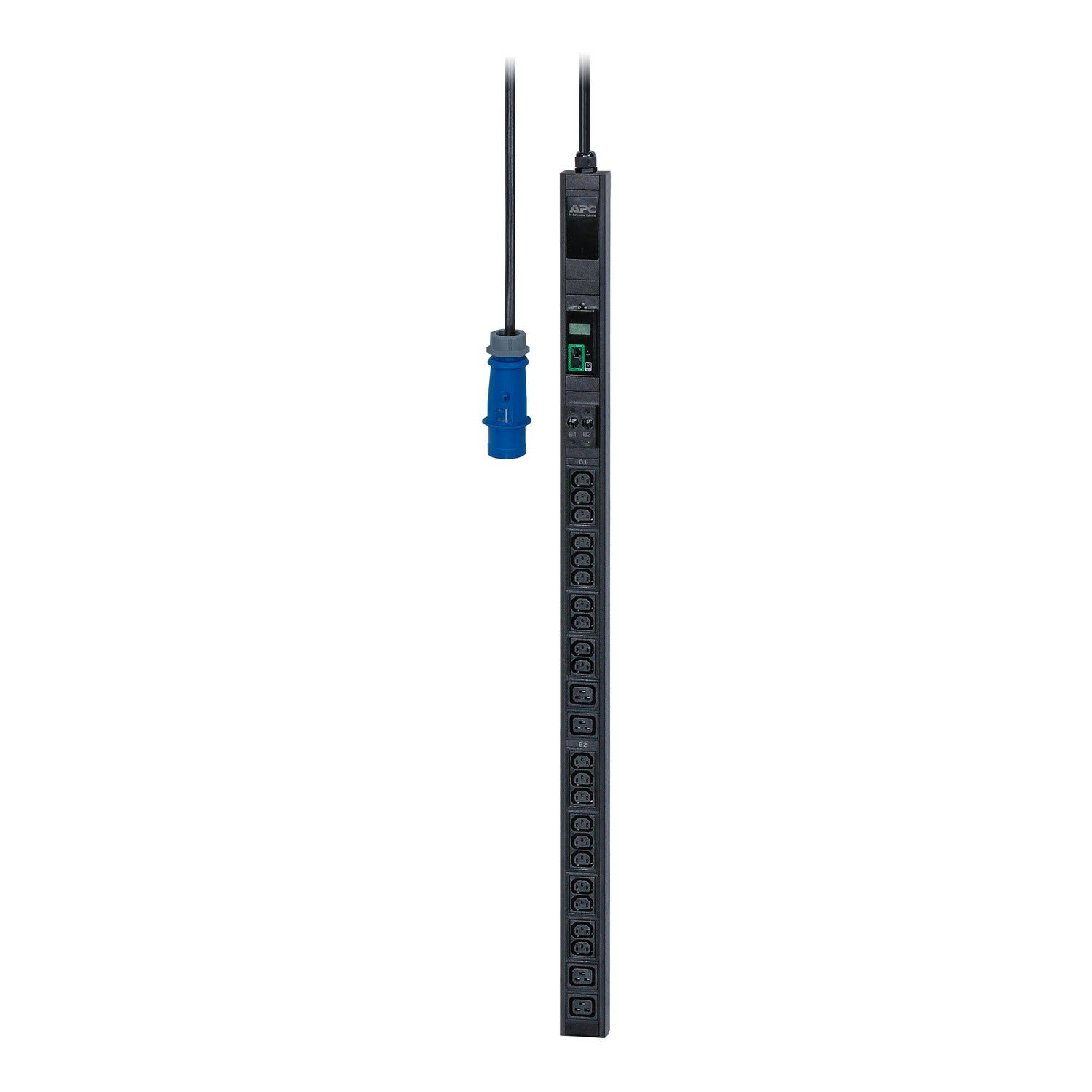

APC Easy Rack PDU, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
SKU :
EPDU1132M
Loading...
No sellers found for this product.
AEDÂ 0.00
Excl. Tax
Free Shipping
To View the best prices please Sign in / Register.
Shipping:
Out of stock
- 1. Reliable and affordable Rack Power Distribution
- 2. real-time remote management capabilities
- 3. Zero-U Toolless Rack Mounting Capabilities
- 4. Flash Upgradeable
- 5. Local Current Monitoring Display and Load indicator LED
APC Easy Rack PDU, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
AEDÂ 0.00
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
Overview
| Activity | SPRSY |
|---|---|
| Lead time | USUALLY IN STOCK |
| Colour | BLACK |
| Product or component type | PDU |
| PDU type | METERED |
| Cord length | 2.99 M |
| Number of cables | 1 |
| Provided equipment | INSTALLATION GUIDETOOLLESS MOUNTING KITUSER MANUALVERTICAL MOUNTING BRACKETS |
| Input Voltage | 200 V208 V230 V |
| Height | 1175 MM |
| Width | 62 MM |
| Output Voltage | 230 V |
| Depth | 44.4 MM |
| Net weight | 3.72 KG |
| Mounting location | SIDE |
| Mounting preference | NO PREFERENCE |
| Input Plug Type | IEC 60309 32 A 2P + E |
| Mounting mode | RACK-MOUNTED |
| Rack units | 0U |
| Mounting position | VERTICAL |
| permissible voltage | 220…240 V |
| Max line current | 32 A |
| Input current limits | 32 A |
| Load capacity | 7360 VA |
| Network frequency | 50/60 HZ |
| Outlet type and quantity | 20 IEC 60320 C13 4 IEC 60320 C19 |
| Product certifications | CETÃœVEACRCM |
| Ambient air temperature for operation | -5…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 FT |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0…15240 M |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 132 CM |
| Package 1 Width | 11 CM |
| Package 1 Length | 16 CM |
| Package 1 Weight | 4.48 KG |
| Warranty (in months) | 12 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Energy Efficiency Optimized | Energy efficient product |
| Sustainable packaging | ✓ |
| Take-back | No |
| REACh free of SVHC | ✓ |
| RoHS exemption information | Yes (Download) |
| REACh Regulation | REACh Declaration (Download) |
| EU RoHS Directive | EU RoHS Declaration (Download) |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Total lifecycle Carbon footprint | 3 195 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 44.1179931271 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 44 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.5780123711 |
| Carbon footprint of the distribution phase [A4] | 0.6 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.1105667079 |
| Carbon footprint of the installation phase [A5] | 0.1 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 3148.8897255406 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 3 149 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 1.4856049485 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 1 kg CO2 eq. |
| SCIP Number | 780cb2d6-f852-4c3c-987f-e705629194ca |
| RoHS Eur Status | Compliant |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
