TeSys GV2 - Circuit breaker - magnetic - 1.6 A - screw clamp terminals
Description
TeSys Deca Frame 2
The new generations of TeSys Deca Motor Circuit Breakers Frame 2 to to protect motors up to 32A (15kW / 400V) offers a complete solution for almost any application. It provides short circuit protection, overload protection, motor (ON/OFF) control.
Easy Selection
It features a diverse selection of GVs, including magnetic and thermal magnetic options, available in various sizes such as GV2, GV3, and GV4. This variety enables us to cater to a wide range of needs and preferences.
Simple to install
Is designed for ease of installation and operation, featuring multi-standard screws that simplify the process. Additionally, the EverLink terminals ensure a safe and long-lasting power connection, providing reliability and peace of mind.
Efficiency
We offer a seamless digital customer experience for accessing technical documents, ensuring you have all the information you need at your fingertips.
Enhance your power solutions with our extensive range of accessories
Energy Sensor

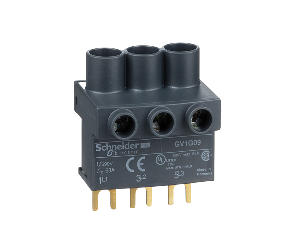

Terminal Block

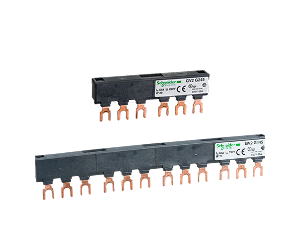

Comb busbar
Gain peace of mind, quality, and value for your installations
Motor Safety and Control with TeSys Deca
The GV2 range delivers reliable motor protection up to 15 kW, offering both thermal-magnetic and magnetic options. It supports multiple control methods and connector types, ensuring flexible installation and easy integration.
Universal Integration
Lorem Ipsum is simply dummy text of the printing and
Flexible connection
Lorem Ipsum is simply dummy text of the printing and
Standard Sync
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Weight (in Kg) | 0.32 |
|---|---|
| Net weight | 0.33 kg |
| Operating Position | any position |
| Trip Unit Technology | magnetic |
| Product Or Component Type | motor circuit breaker |
| Control Type | rotary handle |
| Breaking Capacity | 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 4 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical Durability | 100000 cycles |
| Poles Description | 3P |
| IK Degree Of Protection | IK04 |
| Network frequency | 50/60 Hz conforming to IEC 60947-2 |
| Direct Connector | without |
| Magnetic Tripping Current | 22.5-22.5 A |
| [IP] Degree of Protection | IP20 conforming to IEC 60529 |
| [Uimp] Rated Impulse Wthstand Voltage | 6 kV conforming to IEC 60947-2 |
| Ambient air temperature for operation | -20-60 °C |
| Range of Product | TeSys GV2 TeSys Deca |
| Tightening Torque | 1.7 N.m on screw clamp terminals |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1 |
| Product Certifications | IECEE CB Scheme UL CSA CCC EAC RINA LROS (Lloyds register of shipping) DNV-GL BV UKCA |
| Mechanical Robustness | shocks: 30 Gn conforming to IEC 60068-2-27 vibrations: 5 Gn, 5...150 Hz conforming to IEC 60068-2-6 |
| [Ith] Conventional Free Air Thermal Current | 1.6 A conforming to IEC 60947-4-1 |
| [ui] Rated Insulation Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Electrical Durability | 100000 cycles for AC-3 at 415 V |
| Fire Resistance | 960 °C conforming to IEC 60695-2-11 |
| Maximum Operating Rate | 40 cyc/h |
| Motor Power Kw | 0.55-0.55 kW at 400/415 V AC 50/60 Hz 0.55-0.55 kW at 500 V AC 50/60 Hz 0.75-0.75 kW at 500 V AC 50/60 Hz 1.1-1.1 kW at 690 V AC 50/60 Hz |
| Power Dissipation Per Pole | 1.8 W |
| Climatic Withstand | conforming to IACS E10 |
| [Ics] Rated Service Short-Circuit Breaking Capacity | 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Fixing Mode | 35 mm symmetrical DIN rail: clipped panel: screwed (with 2 x M4 screws) |
| Rated Duty | continuous conforming to IEC 60947-4-1 |
| Device short name | GV2L |
| Depth | 97 mm |
| Ambient air temperature for storage | -40-80 °C |
| Height | 89 mm |
| width | 45 mm |
| Utilisation category | category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 |
| Operating altitude | 2000 m |
| Compatibility code | GV2L |
| Device Application | motor protection |
| Network type | AC |
| Suitability for isolation | yes conforming to IEC 60947-1 § 7-1-6 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Brand | Schneider Electric |
| Height | 4.7 |
| Length | 10 |
| Width | 9.4 |
