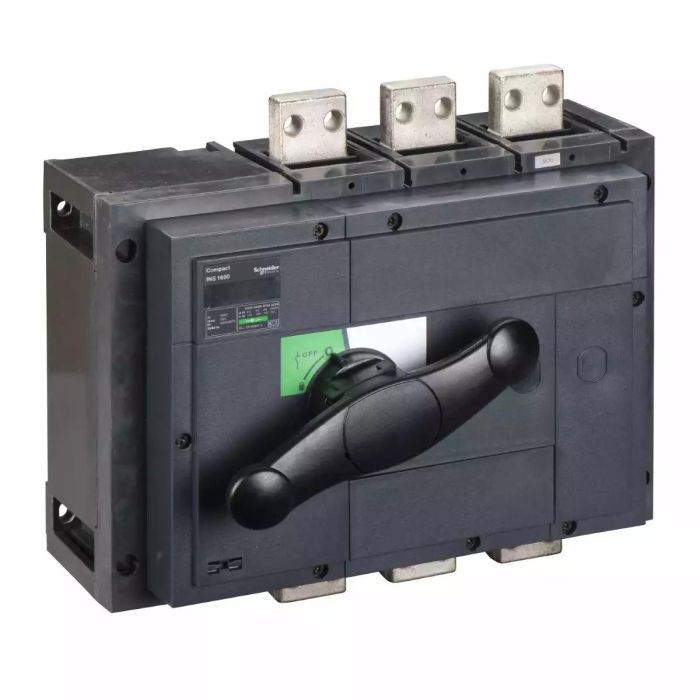

switch disconnector, Compact INS1600 , 1600 A, standard version with black rotary handle, 3 poles

31336
Be the first one to review this.
login_green To View the best prices please Sign in / Register.
Only 0 left in stock.
plain-icon

Description

switch disconnector, Compact INS1600 , 1600 A, standard version with black rotary handle, 3 poles

Product Details

Net weight 14 kg
Product or Component Type switch disconnector
Control Type direct front rotary handle
Mechanical Durability 3000 cycles
Poles Description 3P
IK Degree Of Protection IK07 conforming to EN 50102
Network frequency 50/60 Hz
Handle Colour black
Contact Position Indicator yes
Downside Connection front
Switch-Disconnector Name Interpact INS1600
Upside Connection front
Visible Break no
Product Name ComPacT INS
Standards IEC 60947-1,IEC 60947-3
Range of Product INS630b...2500
Electrical Durability AC-21A: 500 cycles 220/240 V AC 50/60 Hz,AC-21A: 500 cycles 380/415 V AC 50/60 Hz,AC-21A: 500 cycles 440/480 V AC 50/60 Hz,AC-21A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA,AC-21A: 500 cycles 500/525 V AC 50/60 Hz,AC-21A: 500 cycles 660/690 V AC 50/60 Hz,AC-22A: 500 cycles 220/240 V AC 50/60 Hz,AC-22A: 500 cycles 380/415 V AC 50/60 Hz,AC-22A: 500 cycles 440/480 V AC 50/60 Hz,AC-22A: 500 cycles 480 V AC 50/60 Hz conforming to NEMA,AC-22A: 500 cycles 500/525 V AC 50/60 Hz,AC-22A: 500 cycles 660/690 V AC 50/60 Hz,DC-21A: 500 cycles 125 V DC 2 poles in series,DC-22A: 500 cycles 125 V DC 2 poles in series,AC-21B: 100 cycles 220/240 V AC 50/60 Hz,AC-21B: 100 cycles 380/415 V AC 50/60 Hz,AC-21B: 100 cycles 440/480 V AC 50/60 Hz,AC-21B: 100 cycles 480 V AC 50/60 Hz conforming to NEMA,AC-21B: 100 cycles 500/525 V AC 50/60 Hz,AC-21B: 100 cycles 660/690 V AC 50/60 Hz,AC-22B: 100 cycles 220/240 V AC 50/60 Hz,AC-22B: 100 cycles 380/415 V AC 50/60 Hz,AC-22B: 100 cycles 440/480 V AC 50/60 Hz,AC-22B: 100 cycles 480 V AC 50/60 Hz conforming to NEMA,AC-22B: 100 cycles 500/525 V AC 50/60 Hz,AC-22B: 100 cycles 660/690 V AC 50/60 Hz,AC-23B: 500 cycles 220/240 V AC 50/60 Hz,AC-23B: 500 cycles 380/415 V AC 50/60 Hz,AC-23B: 500 cycles 440/480 V AC 50/60 Hz,AC-23B: 500 cycles 480 V AC 50/60 Hz conforming to NEMA,AC-23B: 500 cycles 500/525 V AC 50/60 Hz,AC-23B: 500 cycles 660/690 V AC 50/60 Hz,DC-23B: 500 cycles 125 V DC 2 poles in series
Connection pitch 70 mm
Device short name Interpact INS1600
Network type AC,DC
Pollution degree 3
Range ComPact
Height 300 mm
Depth 146.5 mm
width 340 mm
Compatibility code INS1600
IP degree of protection IP40 conforming to IEC 60529
Mounting support plate,rail
