High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <lt/>=440V 185A, standard version, 100…250V wide band AC/DC coil
Description
TeSys Giga Contactors
TeSys Giga series has been reimagined with the latest smart digital innovations to deliver a simpler, more sustainable, safe and secure customer experience for panel builders, consulting engineers, system integrators, facility managers and original equipment manufacturers (OEMs) further building on proven reliability and high electrical durability.
Flexibility
Available in Standard and Advanced versions, the latter offers more flexibility with direct control via traditional coil terminals A1-A2 or via PLC 24VDC input terminals, eliminating the need for an intermediate relay.
High reliability
Improved auxiliary contacts (17V, 1mA) improve reliability in harsh environments and meet high-density PLC input applications.
Diagnostics
Diagnostic functions provide access to predictable maintenance, featuring unique calculations that enable better diagnosis and detection of contact wear, tip wear level, coil under/over voltage, internal failure, and contactor status upon opening and closing.
Enhance your power solutions with our extensive range of accessories

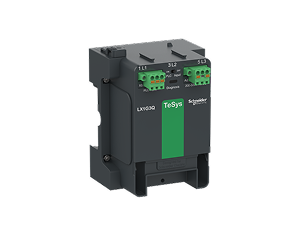

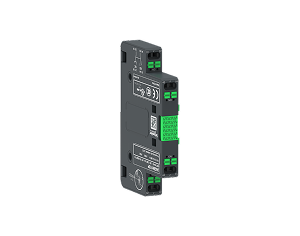

Auxiliary contact block

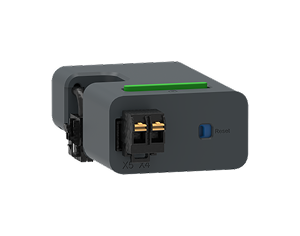

Remote Wear Diagnostic Module
Control module
Gain peace of mind, quality, and value for your installations
Improve the reliability of your operations while simplifying your maintenance
TeSys Giga Contactors are designed to work with components and accessories with advanced performance. The characteristics of robustness and longevity are maintained, both in the connectors and in the switching.
Continuous local and remote monitoring of contact wear optimizes predictive maintenance by allowing you to replace contacts only, when necessary, facilitated by diagnostic visual indicator.
Fault type identification
Lorem Ipsum is simply dummy text of the printing and
Touch protection
Lorem Ipsum is simply dummy text of the printing and
Energy Efficient
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Weight (in Kg) | 4.778 |
|---|---|
| Net weight | 3.6 kg |
| Colour | dark grey |
| Pole Contact Composition | 3 NO |
| Product Or Component Type | contactor |
| Mechanical Durability | 5 Mcycles 8 Mcycles with sub-assembly substitution |
| Protective Treatment | TH |
| Poles Description | 3P |
| Average Impedance | 0.00017 Ohm |
| Network frequency | 50/60 Hz 16.67...400 Hz |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Contactor Application | power switching motor control |
| Hold-in Power Consumption In W | 7.8-7.8 W |
| Permissible Ambient Air Temperature Around The Device | -40-70 °C at Uc |
| [IP] Degree of Protection | IP2x front face with shrouds conforming to IEC 60529 IP2x front face with shrouds conforming to VDE 0106 |
| Connections Terminals | power circuit: bar 2 - busbar cross section: 25 x 6 mm power circuit: lugs-ring terminals 1 185-185 mm² power circuit: bolted connection control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end control circuit: push-in 2 0.5-1.0 mm² with cable end control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end |
| [Uimp] Rated Impulse Wthstand Voltage | 8 kV |
| Irms Rated Making Capacity | 2310 A at 440 V |
| Ambient air temperature for operation | -25-60 °C |
| Range of Product | TeSys Giga |
| Tightening Torque | 18 N.m |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 |
| Product Certifications | CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL |
| Mechanical Robustness | vibrations 5-300 Hz 2 gn contactor open vibrations 5-300 Hz 4 gn contactor closed shocks 10 gn 11 ms contactor open shocks 15 gn 11 ms contactor closed |
| [Ith] Conventional Free Air Thermal Current | 305 A (at 40 °C) |
| [ui] Rated Insulation Voltage | 1000 V |
| Associated Fuse Rating | 200 A aM at 440 V 160 A aM at 690 V 315 A gG at 690 V |
| Mounting support | plate |
| Control Circuit Voltage Limits | operational: 0.8...1.1 Uc AC/DC (at 60 °C) drop-out: 0.1...0.45 Uc AC/DC (at 60 °C) |
| Electrical Durability | 300 cycles AC-1 at Ue 400 V 500 cycles AC-3 at Ue 400 V 500 cycles AC-3e at Ue 400 V 150 cycles AC-4 at Ue 400 V |
| Hold-In Power Consumption In VA | 12.4-12.4 VA |
| Inrush Power In VA | 540-540 VA |
| Maximum Operating Rate | 600 cyc/h 60 °C 300 cyc/h AC-1 500 cyc/h AC-3 500 cyc/h AC-3e 150 cyc/h AC-4 |
| Motor Power Kw | 55 kW at 230 V AC 50/60 Hz (AC-3e) 90 kW at 400 V AC 50/60 Hz (AC-3e) 90 kW at 415 V AC 50/60 Hz (AC-3e) 110 kW at 440 V AC 50/60 Hz (AC-3e) 110 kW at 500 V AC 50/60 Hz (AC-3e) 110 kW at 690 V AC 50/60 Hz (AC-3e) 75 kW at 1000 V AC 50/60 Hz (AC-3e) 55 kW at 230 V AC 50/60 Hz (AC-3) 90 kW at 400 V AC 50/60 Hz (AC-3) 90 kW at 415 V AC 50/60 Hz (AC-3) 110 kW at 440 V AC 50/60 Hz (AC-3) 110 kW at 500 V AC 50/60 Hz (AC-3) 110 kW at 690 V AC 50/60 Hz (AC-3) 75 kW at 1000 V AC 50/60 Hz (AC-3) 55 kW at 230 V AC 50/60 Hz (AC-4) 90 kW at 400 V AC 50/60 Hz (AC-4) 90 kW at 415 V AC 50/60 Hz (AC-4) 100 kW at 440 V AC 50/60 Hz (AC-4) 110 kW at 500 V AC 50/60 Hz (AC-4) 110 kW at 690 V AC 50/60 Hz (AC-4) 75 kW at 1000 V AC 50/60 Hz (AC-4) |
| Operating Time | 45...60 ms closing 15...45 ms opening |
| Power Dissipation Per Pole | 20 W AC-1 - Ith 305 A 6 W AC-3 - Ith 185 A |
| Rated Breaking Capacity | 1610 A at 440 V |
| [Icw] rated short-time withstand current | 1.5 kA - 10 s 0.92 kA - 30 s 0.74 kA - 1 min 0.5 kA - 3 min 0.4 kA - 10 min |
| Inrush Power In W | 380 W |
| Coil Technology | built-in bidirectional peak limiting |
| Motor Power Hp | 50 hp at 200/208 V 60 Hz 60 hp at 230/240 V 60 Hz 125 hp at 460/480 V 60 Hz 150 hp at 575/600 V 60 Hz |
| Device short name | LC1G |
| Depth | 193 mm |
| Connection pitch | 35 mm |
| Ambient air temperature for storage | -60-80 °C |
| Height | 193 mm |
| Overvoltage Category | III |
| width | 108 mm |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 AC-5a AC-5b AC-6a AC-6b AC-8a AC-8b DC-1 DC-3 DC-5 |
| Compatibility code | LC1G |
| [Uc] Control Circuit Voltage | 100...250 V AC/DC 50/60 Hz |
| [Ue] Rated Operational Voltage | <= 1000 V AC 50/60 Hz <= 300 V DC |
| Brand | Schneider Electric |
| Height | 25.5 |
| Length | 32 |
| Width | 17.5 |
