Electronic thermal overload relay, TeSys Giga, 57…225 A, class 5E…30E, push-in control connection
Incl. Tax
All Sellers
| Seller | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free Shipping
|
No sellers found for this product.
Electronic thermal overload relay, TeSys Giga, 57…225 A, class 5E…30E, push-in control connection
Description
TeSys Giga Electronic Relays
TeSys Giga electronic relays to protect motors up to 630A, has been reimagined with the latest smart digital innovations to deliver a simpler, more sustainable, safe and secure customer experience for panel builders, consulting engineers, system integrators, facility managers and original equipment manufacturers.
Precision You Trust
TeSys Giga Protection Relay delivers highly accurate current settings. Visual indicators for motor status, overload alarms, and internal faults simplify diagnostics, helping you detect issues early and reduce unplanned downtime.
Advanced Fault Protection
Comprehensive motor safeguarding with built-in overload, ground fault, and phase imbalance protection, and reliable performance even in hazardous conditions, keeping your operations safe and compliant.
Efficient Design
From direct integration with TeSys Giga Contactors to flexible reset and protection options, configuration is fast and intuitive. Its eco-friendly design features recyclable packaging and laser-etched labeling, combining sustainability with smart engineering.
Enhance your power solutions with our extensive range of accessories

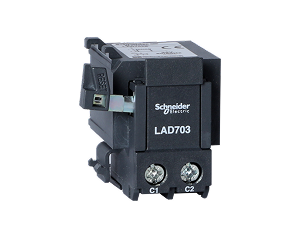

Remote electrical stop

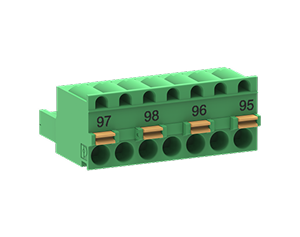

Terminal block

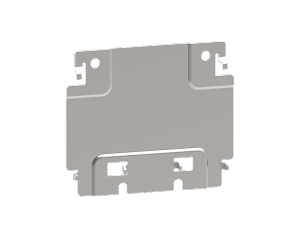

Mounting base
Gain peace of mind, quality, and value for your installations
Powerfully Smart. Perfectly Compact.
TeSys Giga is a next-generation motor control solution designed for high performance, compactness, and smart functionality. It enhances reliability by up to 90%, reduces downtime, and simplifies installation and maintenance with modular design and fewer product references.
Equipped with advanced diagnostics, wide control options, and EcoStruxure readiness, it supports a wide range of industrial and infrastructure applications, making it a future-ready choice for efficient and resilient motor management.
Easy configuration
Lorem Ipsum is simply dummy text of the printing and
Direct mount
Lorem Ipsum is simply dummy text of the printing and
Dial adjustment
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Weight (in Kg) | 1.406 |
|---|---|
| Net weight | 0.9 kg |
| Colour | dark grey |
| Product Or Component Type | electronic thermal overload relay |
| Mechanical Durability | 7000 cycles |
| Protective Treatment | TH |
| Reset | automatic reset manual |
| Tripping Threshold | 1.125 +/- 0.07 In conforming to IEC 60947-4-1 |
| Network frequency | 30...60 Hz 100 Hz |
| Ambient Air Transport Temperature | -25-60 °C |
| Permissible Ambient Air Temperature Around The Device | -40-60 °C at Uc |
| Thermal Protection Adjustment Range | 57-225 A |
| [IP] Degree of Protection | IP2x front face with shrouds conforming to IEC 60529 IP2x front face with shrouds conforming to VDE 0106 |
| Connections Terminals | power circuit: bar - busbar cross section: 25 x 6 mm power circuit: lugs-ring terminals 1 185-185 mm² control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end control circuit: push-in 2 0.5-1.0 mm² with cable end |
| Contacts Type and Composition | 1 NO + 1 NC |
| [Uimp] Rated Impulse Wthstand Voltage | 8 kV |
| protection_type | ground fault protection - tripping time adjustment: 0-1 s - for alarm circuit conforming to IEC 60947-4-1 ground fault protection - tripping time adjustment: 0-1 s - for alarm circuit conforming to UL 60947-4-1 phase loss - tripping time adjustment: 0-4 s - for alarm circuit phase imbalance - tripping time adjustment: 0-5 s - for alarm circuit conforming to IEC 60947-4-1 phase imbalance - tripping time adjustment: 0-5 s - for alarm circuit conforming to UL 60947-4-1 |
| Ambient air temperature for operation | -25-60 °C |
| Tightening Torque | 18 N.m |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 |
| Product Certifications | CB Scheme CCC cULus UKCA ATEX EU-RO-MR by DNV-GL EAC |
| Mechanical Robustness | vibrations 5-300 Hz 6 gn contactor open shocks 15 gn 11 ms contactor closed |
| [Ith] Conventional Free Air Thermal Current | 0.208333333 |
| Mounting support | direct on contactor plate |
| Local Signalling | LED trip indicator |
| Electromagnetic Compatibility | EMC immunity conforming to IEC 60947-4-1 emission tests criteria A conforming to IEC 60947-4-1 immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 voltage dips and interruptions immunity test conforming to SEMI F47 |
| Relay Application | motor protection |
| Thermal Overload Class | class 5E...30E conforming to IEC 60947-4-1 |
| Device short name | LR9G |
| Depth | 126 mm |
| Ambient air temperature for storage | -60-80 °C |
| Height | 107 mm |
| Overvoltage Category | III |
| width | 105 mm |
| Surge Withstand | 4 kV |
| Network type | AC |
| [Uc] Control Circuit Voltage | 24...500 V AC 50/60 Hz 24...250 V DC |
| [Ue] Rated Operational Voltage | 1000 V AC 50/60 Hz |
| Brand | Schneider Electric |
| Height | 17 |
| Length | 21 |
| Width | 20 |
