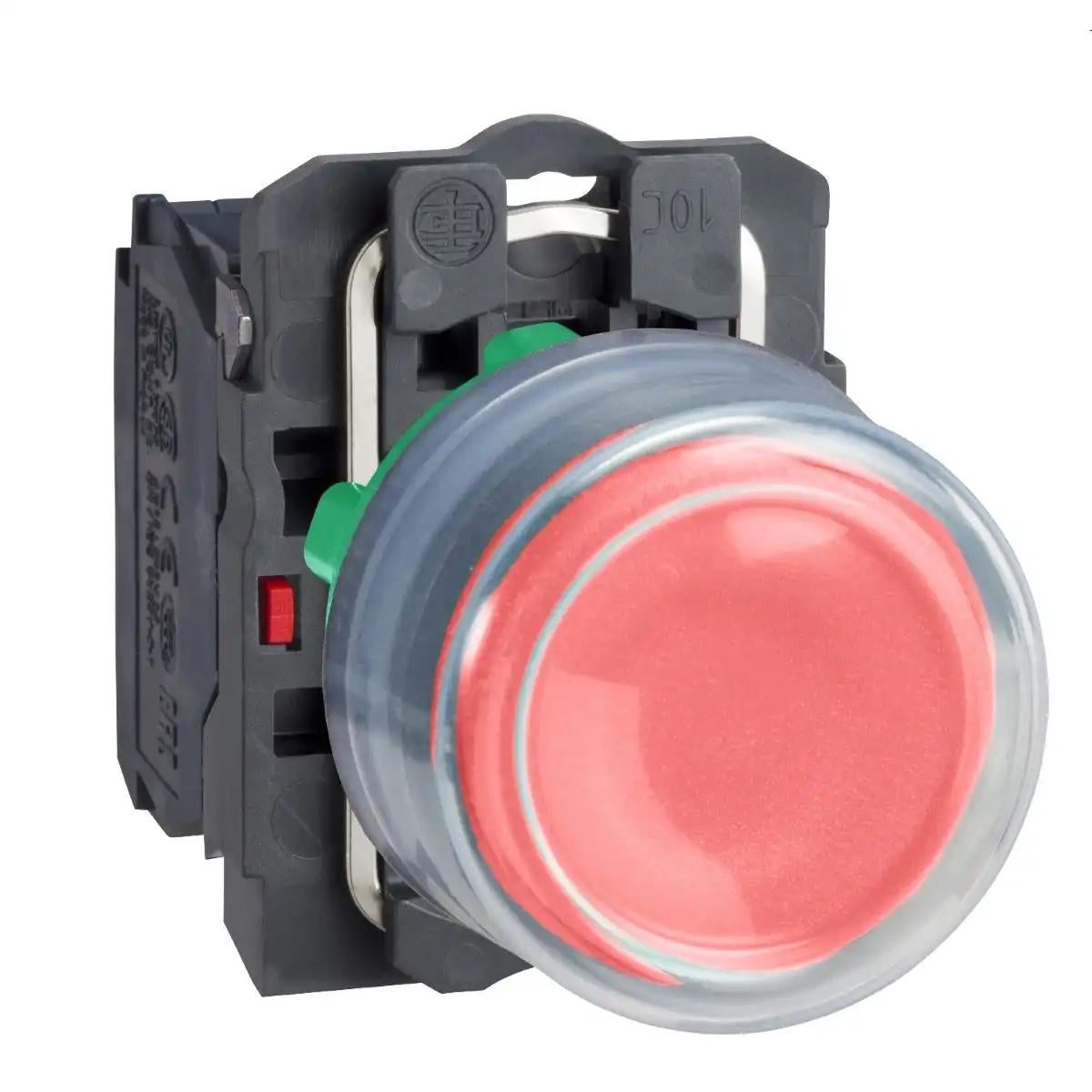

Schneider Electric Push button, Harmony XB5, plastic, projecting, red, 22mm, spring return, booted, unmarked, 1NC

XB5AP42
Be the first one to review this.

Excl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

Schneider Electric Push button, Harmony XB5, plastic, projecting, red, 22mm, spring return, booted, unmarked, 1NC

Product Details

Device Short Name XB5
Height 8.8 cm
Mounting Diameter 22.5 mm
Product or Component Type push-button
Width 3.4 cm
Bezel Material plastic|dark grey plastic
Contact Operation slow-break
Fixing Collar Material plastic
Head Type standard
Operator Additional Information clear boot
Sale Per Indivisible Quantity 1
Shape of Signaling Unit Head round
Product Compatibility not compatible with legend holder
Range of Product Harmony XB5
Connections - Terminals screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 , screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 , screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 , screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 , screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 , screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 , screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 , screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
Operator Profile red projecting, unmarked , red projecting, unmarked , red projecting, unmarked
Length 5.3 cm
Activity code IDSIG
Type of operator spring return
