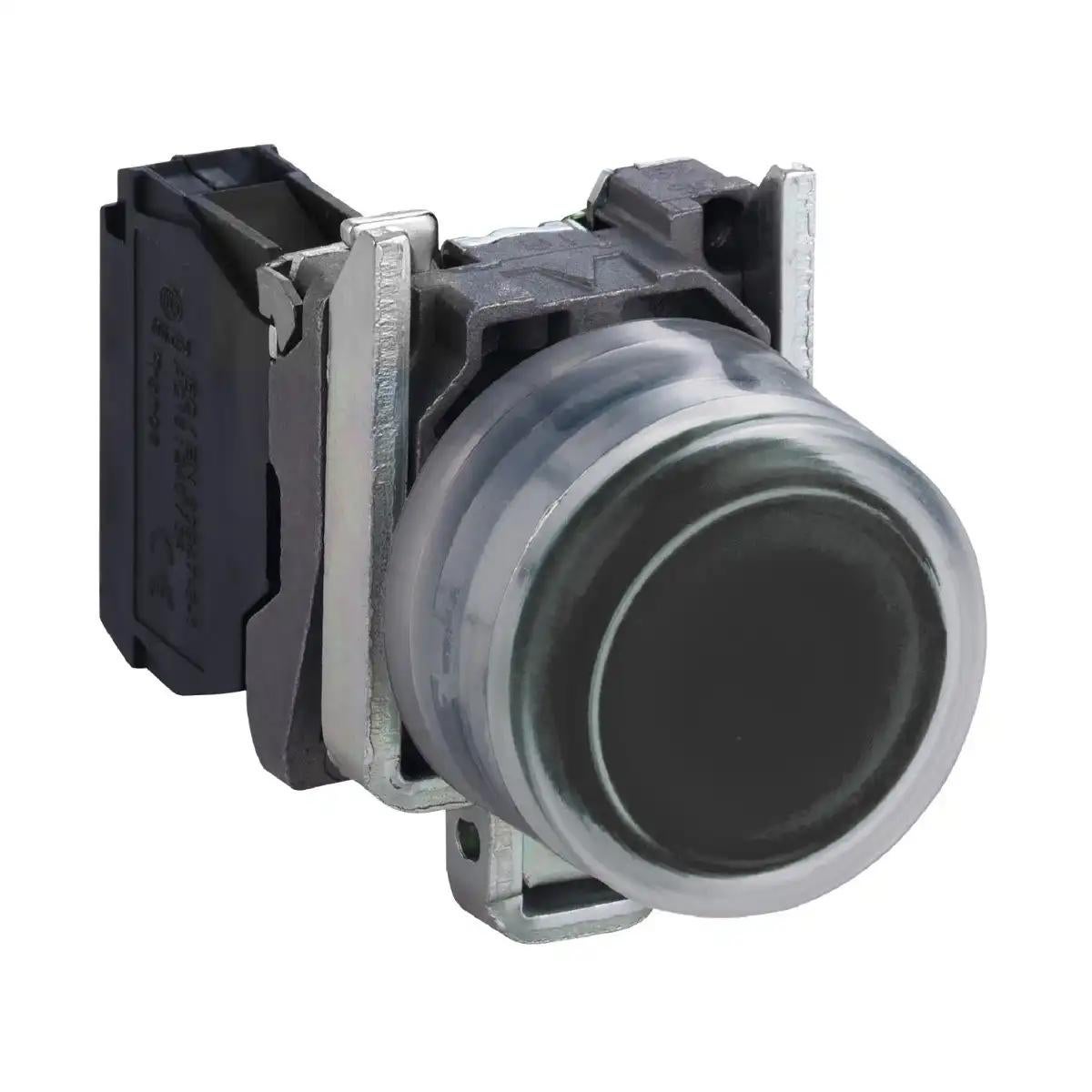

Schneider Electric Push button, Harmony XB4, metal, projecting, black, 22mm, spring return, booted, unmarked, 1NO

XB4BP21
Be the first one to review this.

Excl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

Schneider Electric Push button, Harmony XB4, metal, projecting, black, 22mm, spring return, booted, unmarked, 1NO

Product Details

Device Short Name XB4
Height 8.800 cm
Mounting Diameter 22.5 mm
Product or Component Type push-button
Width 3.400 cm
Bezel Material chromium plated metal
Contact Operation slow-break
Fixing Collar Material zamak
Head Type standard
Operator Additional Information clear boot
Sale Per Indivisible Quantity 1
Shape of Signaling Unit Head round
Product Compatibility not compatible with legend holder
Range of Product Harmony XB4
Connections - Terminals screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 , screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 , screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 , screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 , screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 , screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 , screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 , screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
Operator Profile black projecting, unmarked , black projecting, unmarked , black projecting, unmarked
Length 5.400 cm
Activity code IDSIG
Type of operator spring return
