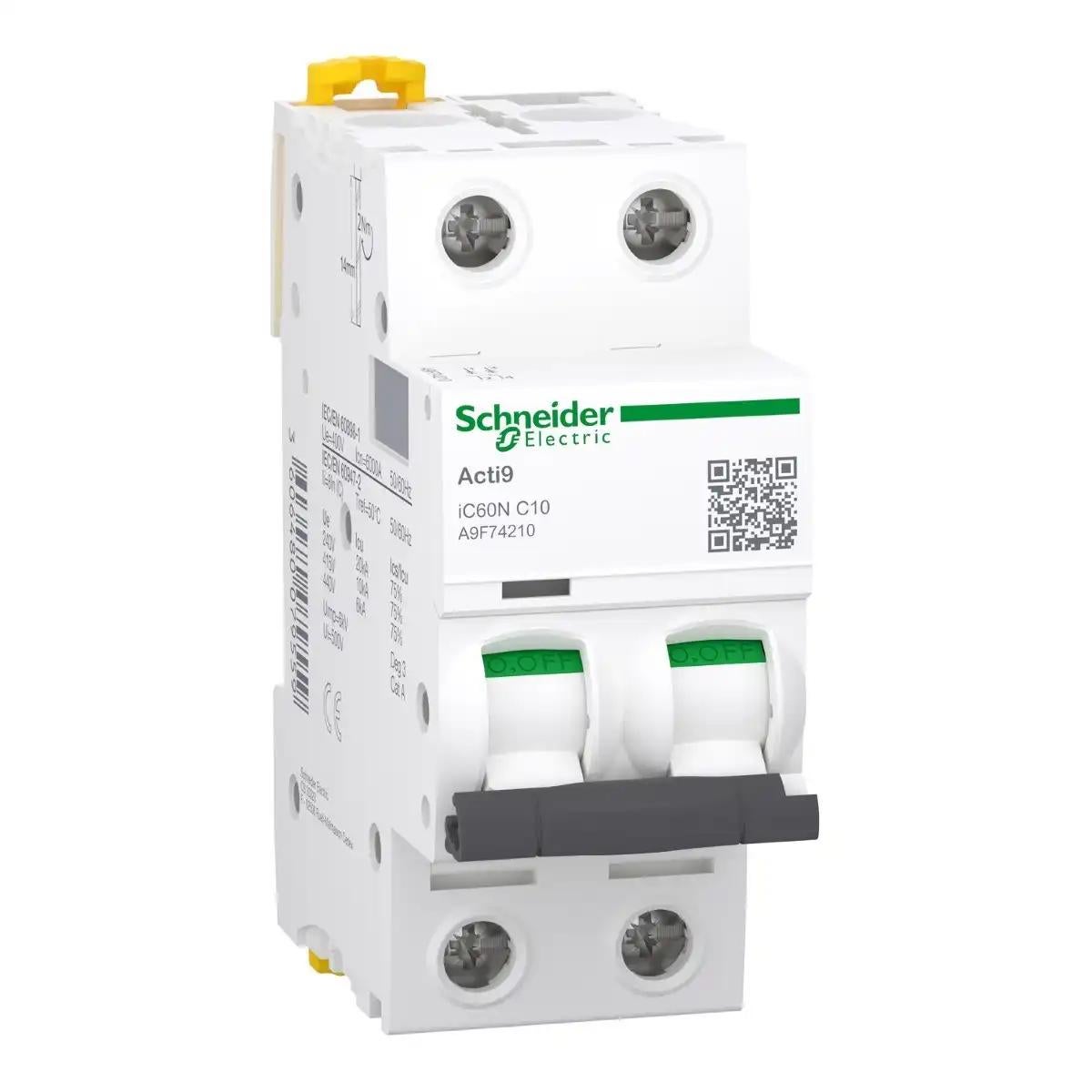

Schneider Electric Miniature circuit breaker (MCB), Acti9 iC60N, 2P, 10A, C curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)

A9F74210
Be the first one to review this.

Excl. Tax

login_green To View the best prices please Sign in / Register.
loader
Loading...

Description

Schneider Electric Miniature circuit breaker (MCB), Acti9 iC60N, 2P, 10A, C curve, 6000A (IEC/EN 60898-1), 10kA (IEC/EN 60947-2)

Product Details

Activity code HDCFD
Device Application distribution
Device Short Name IC60N
Height 3.5 cm
Network Type AC|DC
Product or Component Type miniature circuit-breaker
Width 7.2 cm
Number of Protected Poles 2
Curve code C
Trip unit technology thermal-magnetic
[In] rated current 10:00 AM
Breaking capacity 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 , 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 , 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 , 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 , 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 , 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 , 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2 , 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2 , 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2 , 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2 , 10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2 , 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 , 36 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
Suitability for isolation yes conforming to EN 60898-1 , yes conforming to EN 60898-1 , yes conforming to EN 60947-2 , yes conforming to EN 60947-2 , yes conforming to IEC 60898-1 , yes conforming to IEC 60898-1 , yes conforming to IEC 60947-2 , yes conforming to IEC 60947-2
Utilisation category category A conforming to EN 60947-2 , category A conforming to EN 60947-2 , category A conforming to IEC 60947-2 , category A conforming to IEC 60947-2
Range Acti9
Standards IEC 60947-2|EN 60947-2|IEC 60898-1|EN 60898-1
Length 9.3 cm
Poles description 2P
