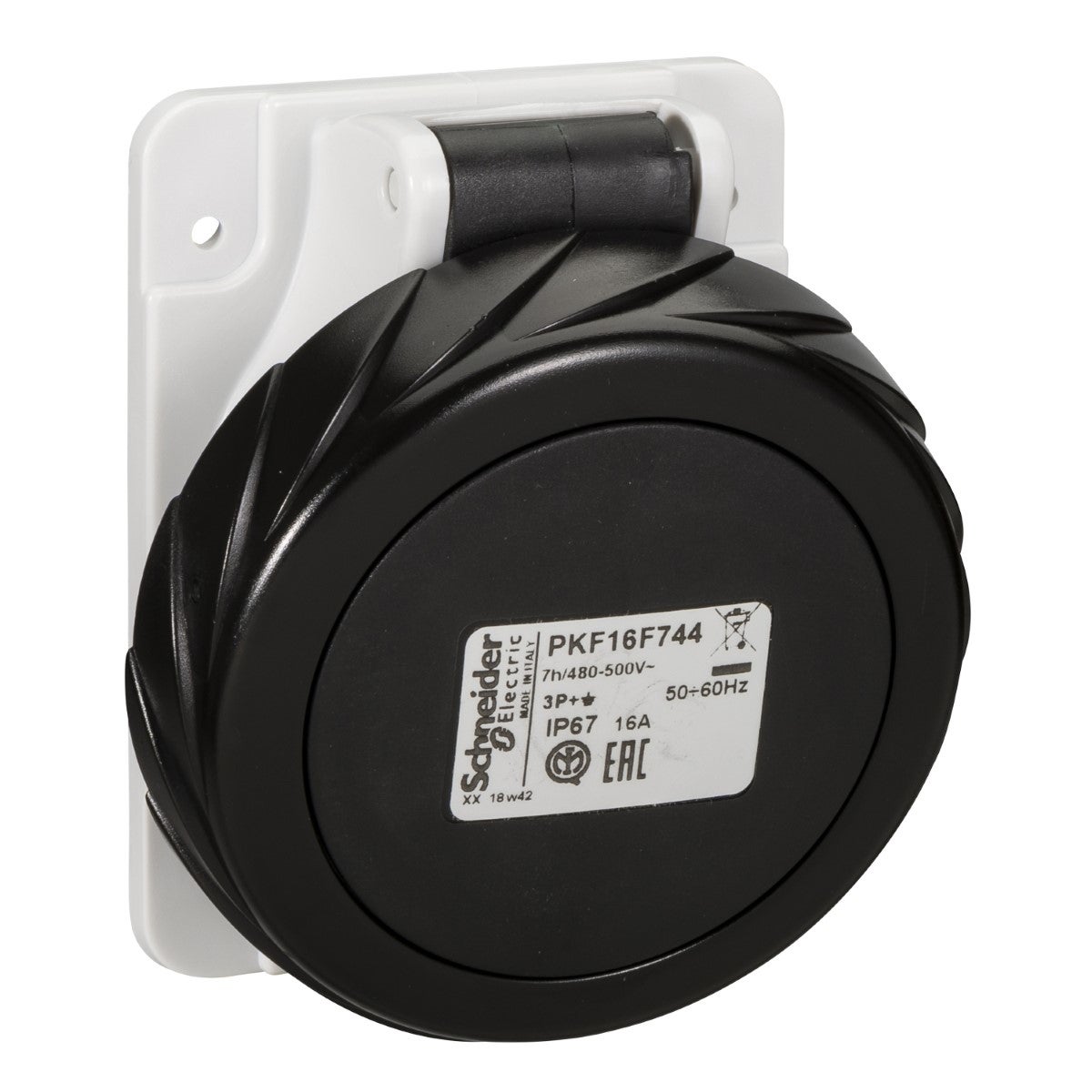

Pratika Socket - Screw - Angled - 16A - 3P + E - 480...500 V Ac - Panel
PKF16F744
Description
This Pratika Industrial Socket With Captive Screws Connection Is Angled Panel-Mounted. It Has 3P+E Pole, Rated Current Is 16A And The Operating Voltage Is 480Vac To 500Vac. The Dimensions Of The Base Plate Are (W) 65Mm X (H) 85Mm. The Degree Of Protection Is Ip67 And Ik08. The Fire Resistance Is 850°C. The Cable Entries Are For Flexible Or Rigid Cables. The Cross Section Of The Cables In 16A Is 1Mm² To 4Mm² Cables. The Color Of The Socket Is Grey (Ral 7035) With Black Easy Identification Of The Operating Voltage. The Frequency Is 50Hz Or 60Hz. The Clock Position Of Contact Is 7H.
Product Details
| SKU | PKF16F744 |
|---|---|
| Part Number | PKF16F744 |
| Price | ZARÂ 339.16 |
| FAQs | No |
| Activity | 0 |
