Extended Rotary Handle, Compact Nsx 100/160/250, Black Handle, Shaft Length 185 To 600 Mm, Ip55
LV429338
extended rotary handle, ComPact NSX 100/160/250, black handle, shaft length 185 to 600 mm, IP55
Incl. Tax
ZARÂ 0.00
Incl. Tax
The prices displayed on this page are recommended list prices. To view seller-specific pricing, please log in to the Schneider Electric Online Store. Sign in / Register.
Loading...
All Sellers
LV429338
Extended Rotary Handle, Compact Nsx 100/160/250, Black Handle, Shaft Length 185 To 600 Mm, Ip55
| Seller | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free Shipping
|
No sellers found for this product.
Out of stock
Description

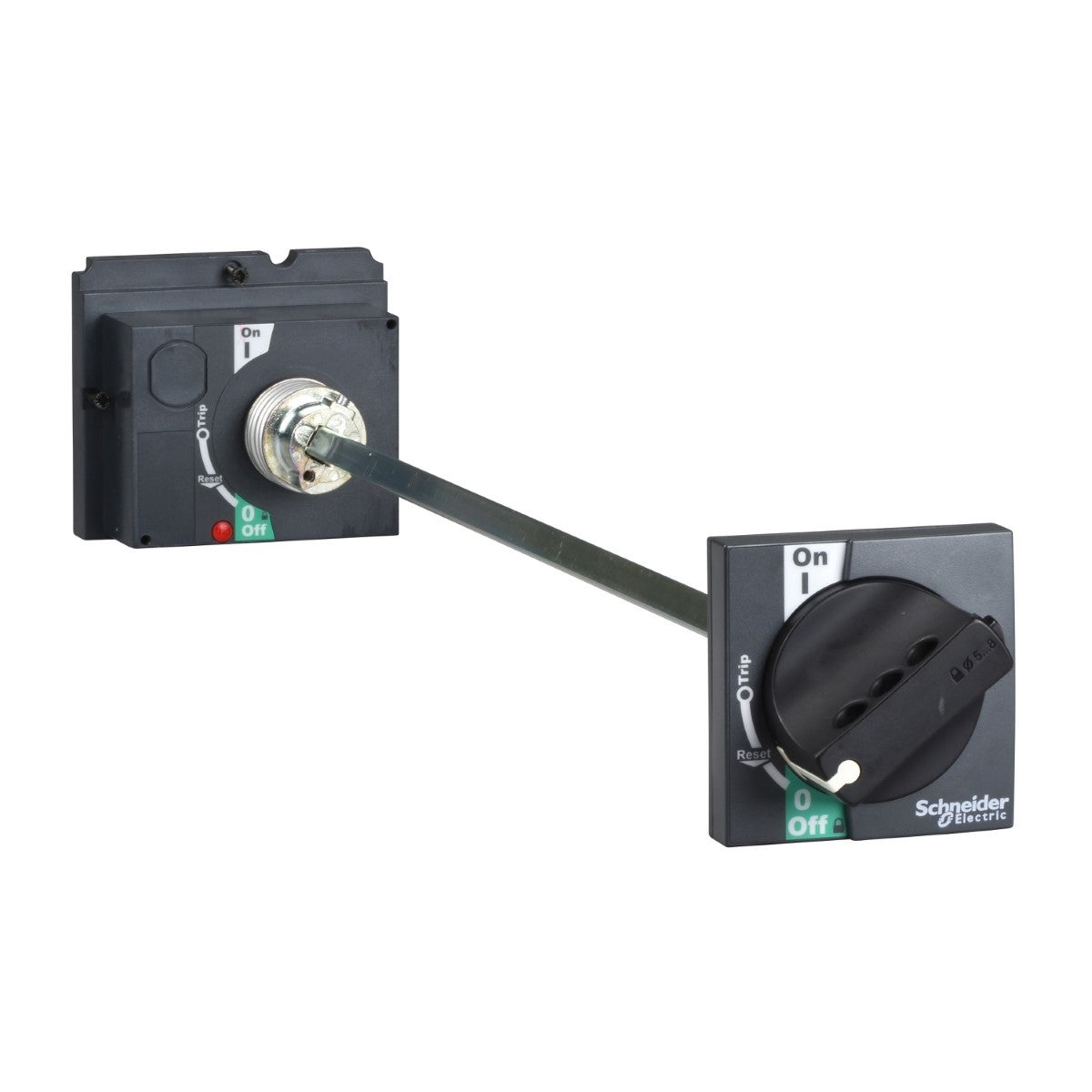

It Is An Extended Rotary Handle For Compact Nsx 100/160/250, Powerpact Multistandard H/J Frames And Easypact Cvs 100/160/250 Devices. It Is Suitable For Isolation And It Is Used For Standard Applications. It Maintains The Access To Trip Unit Settings And To The Push To Trip Button. It Is Equipped With A Standard Black Handle. There Is An Indication Of The Three Device Positions O (Off), I (On) And Tripped. This Extended Version Makes Possible To Operate Devices Installed At Back Of Switchboards, From The Switchboard Front. The Distance Between The Back Of The Circuit Breaker And The Switchboard Door Is From 185Mm To 600Mm. The Degrees Of Protection Are Ip55 And Ik08. This Rotary Handle Is Padlockable In The Off Position Using 1 To 3 Padlocks Not Supplied (Shackle Diameter 5 To 8Mm). As An Option, It Is Possible To Install A Ronis Or Profalux Keylock On The Base Of The Handle To Obtain The Same Function As With A Padlock.
Product Details
| SKU | LV429338 |
|---|---|
| Part Number | LV429338 |
| Price | ZARÂ 2,918.17 |
| FAQs | No |
| Activity | PPCCB |
