MG EZC100 N 15kA 3P/3T 50A
Description
EasyPact EZC MCCB
EasyPact EZC Molded Case Circuit breakers from 15 to 630A, with fixed settings with just three sizes of circuit breakers, is the simple and universal solution to fit all low-voltage protection needs.
Easy to choose

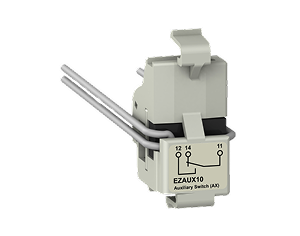

EasyPact EZC brings you easy solutions with a complete range of auxiliaries, rotary commands, shunt trips, phase barriers, terminal cover, and undervoltage trip.
Easy to install
This affordable and efficient option offers adaptability, effortless installation, and complete security, ensuring both convenience and reliability for users.
Easy to use
A thermal calibration is suitable for MCCB use at 50 °C without derating (up to 250A). Positive contact indication, and a smaller case optimised for tight spaces.
Enhance your power solutions with our extensive range of accessories

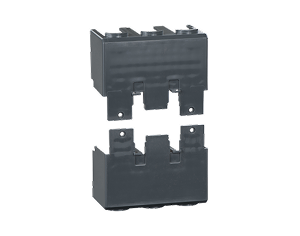

Terminal Shield

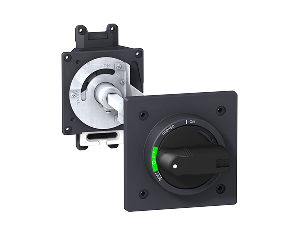

Extended Rotary Handle
Voltage Release
Gain peace of mind, quality, and value for your installations
Compact, Versatile Low-Voltage Protection

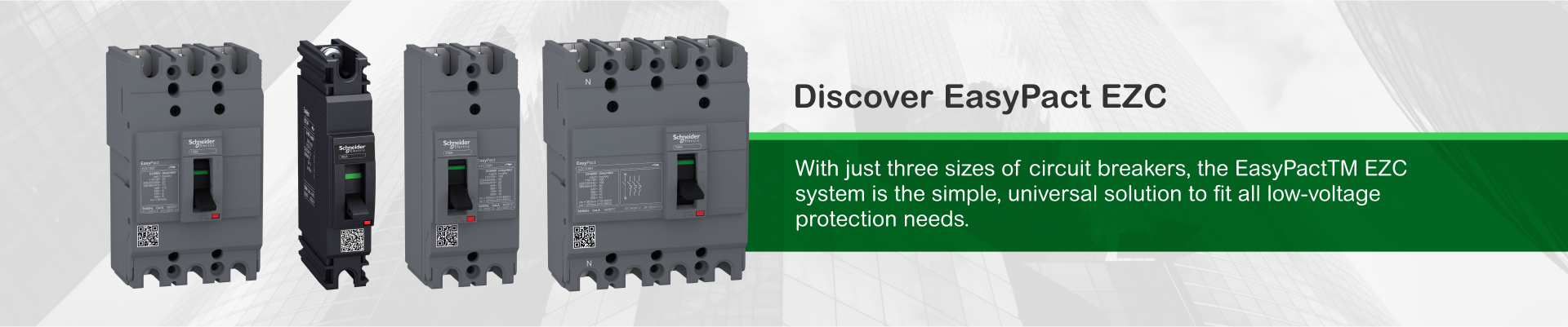

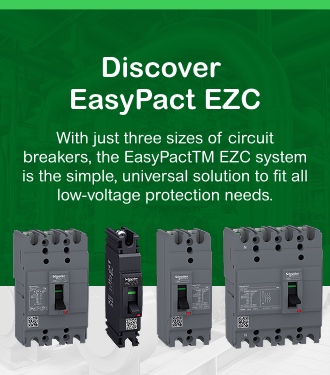

The EasyPact™ EZC system offers a simple, universal solution for low-voltage protection with just three frame sizes. The fixed version suits OEM and building markets, while the plug-in version adds marine-specific functionality.
Covering 15 to 630 A with breaking capacities up to 50 kA at 400/415 V, it’s available in 1- to 4-pole versions with thermal-magnetic protection.
It includes a full range of auxiliaries and built-in earth-leakage protection (EZC 250 ELCB), and complies with IEC 60947-1/2, CCC, EAC, and other certifications.
Complete range of accessories
Lorem Ipsum is simply dummy text of the printing and
Thermal-magnetic
Lorem Ipsum is simply dummy text of the printing and
Enhanced Safety
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Range | EasyPact |
|---|---|
| Activity | PPCCB |
| Breaking Capacity | 10 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2, 15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2, 18 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 125 V DC 1P conforming to IEC 60947-2, 5 kA Icu at 250 V DC 2P conforming to IEC 60947-2, 5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 |
| Weight (in Kg) | 0.1 kg |
| [uimp] Rated Impulse withstand Voltage | 6 kV conforming to IEC 60947-2 |
| [ue] Rated Operational Voltage | 550 V AC 50/60 Hz conforming to IEC 60947-2, 250 V DC conforming to IEC 60947-2 |
| Ambient Air Temperature for Storage | -35-85 °C |
| Ambient Air Temperature for Operation | -25-70 °C |
| [lcs] Rated Service Breaking Capacity | 5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2, 9 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2, 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 125 V DC conforming to IEC 60947-2, 2.5 kA at 250 V DC conforming to IEC 60947-2, 2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2, 7.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking Capacity Code | N |
| Connection Pitch | 25 mm |
| Device Short Name | Easypact EZC100N |
| Compatibility Code | EZC100 |
| IK Degree of Protection | IK07 conforming to IEC 62262 |
| IP Degree of Protection | IP20 conforming to IEC 60529 |
| [in] Rated Current | 50 A at 40 °C |
| Electrical Durability | category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Control Type | toggle |
| Height | 130 mm |
| Protected Poles Description | 3t |
| Depth | 60 mm |
| Product or Component Type | circuit breaker |
| Network Type | DC#|#AC |
| Range | EasyPact |
| [ui] Rated Insulation Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Utilisation Category | category A |
| Network Frequency | 50/60 Hz |
| Product Name | EasyPact EZC |
| Poles Description | 3P |
| Trip Unit Name | TM-D |
| Width | 75 mm |
| Trip Unit Technology | thermal-magnetic |
