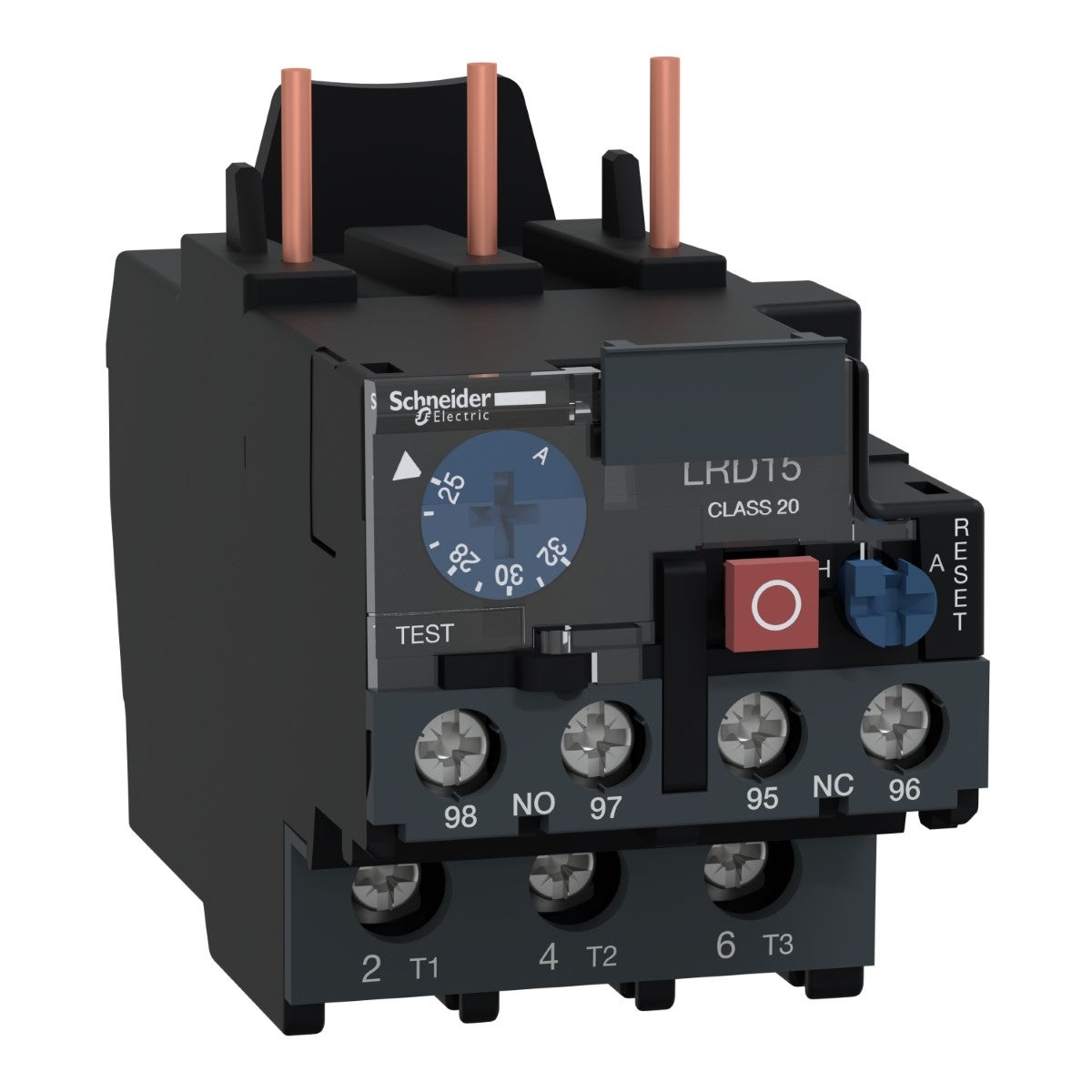

Tesys Lrd Thermal Overload Relays - 25...32 A - Class 20
LRD1532
Description
Tesys Lrd Thermal Overload Relay, 32A/690V, Thermal Setting Range 25-32A, Tripping Class 20, For Protection Of 3-Phase Motors 15Kw@400V. Differential Device With Phase Failure And Load Unbalance Detection. It Provides A Thermal Adjustment Dial, A Manual-Automatic Reset Selector, A Test Selector For Simulation Of A Tripping, Reset And Stop Buttons, A Flag Indicator And 2 Auxiliary Contacts 1No+1Nc For Fault Signaling. Settings Are Protected By A Transparent Cover Lockable By Sealing. Connection By Screw Clamp Terminals, It Connects Directly To The Bottom Terminals Of 3-Pole Contactors Lc1D09-D38. Mounting On Din Rail Or Screw Fixing, Separated From The Contactor, With Use Of A Terminal Block Lad7B105 (To Be Ordered Separately). Multi Standards Certified (Iec, Ul, Csa, Marine), Green Premium Compliant (Rohs/Reach).
Product Details
| SKU | LRD1532 |
|---|---|
| Part Number | LRD1532 |
| Price | ZARÂ 4,349.70 |
| FAQs | No |
| Activity | PPCTR |
