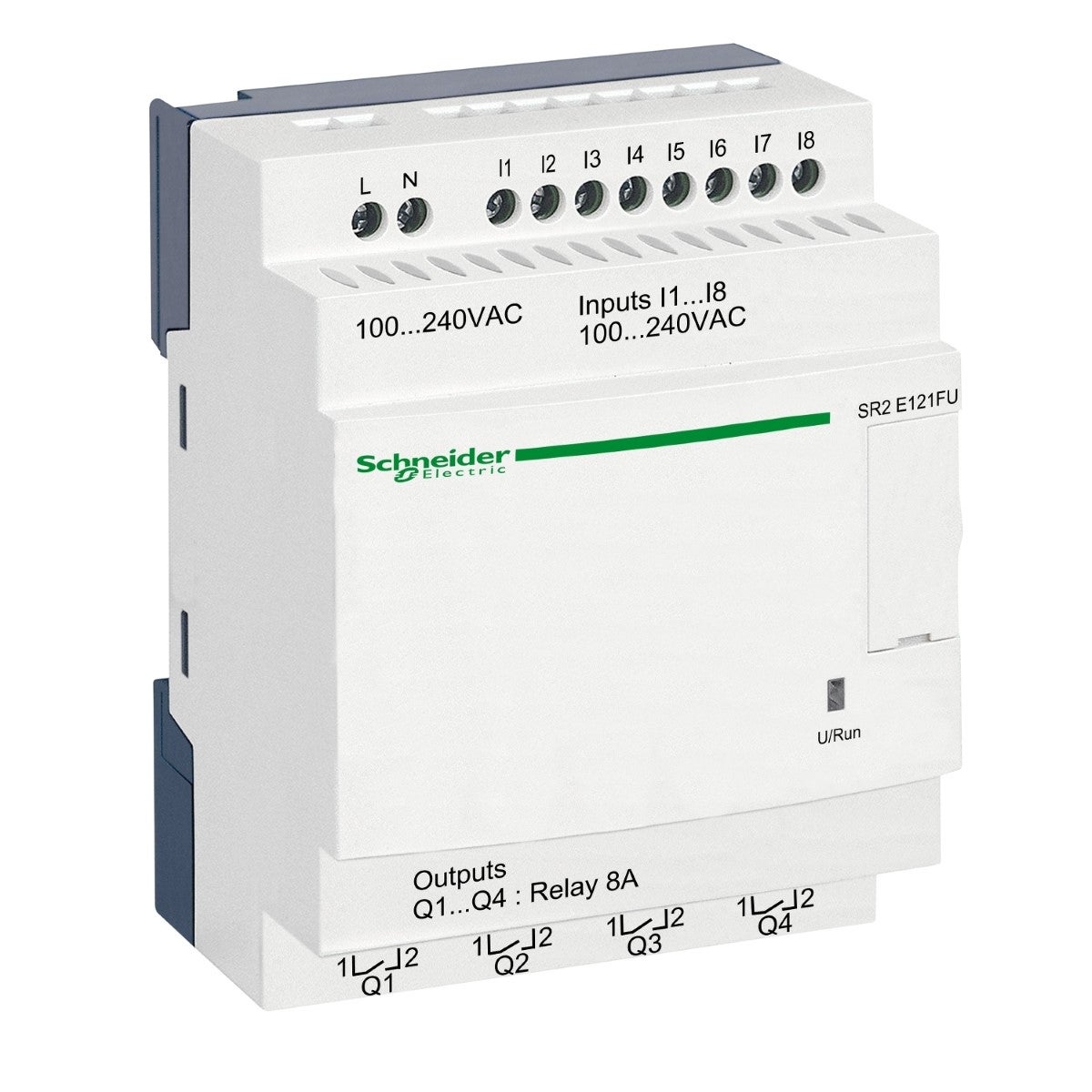

Compact Smart Relay, Zelio Logic, 12 I/O, 100...240 V Ac, Clock, No Display

This Product Is Part Of The Zelio Logic Range, An Offer Of Smart Relays For Simple Automation Systems From 10 To 40 I/Os. The Compact Smart Relay Provides A Real Alternative To Solutions Based On Cabled Logic Or Specific Cards. It Comes With Clock And Without Display. Checks Program Memory On Each Power Up And To 240 With Ladder Programming Number Or Control Scheme Lines. Easy To Use, Zelio Logic Provides A Real Alternative To Solutions Based On Cabled Logic Or Specific Cards It Offers 4 Relay Outputs With Normally Opened Contact And 8 Discrete Inputs. It Has A Rated Supply Voltage Of 100V To 240V Ac, A Maximum Supply Current Of 30Ma At 240V (Without Extension), 80Ma At 100V (Without Extension) And A Power Consumption Of 7Va (Without Extension). It Is An Ip20 And Ip40 Rated Product. It Weighs.22Kg. This Product Meets En/Iec 60068-2-6 Fc, En/Iec 61000-4-11, En/Iec 61000-4-4 Level 3, En/Iec 61000-4-2 Level 3, En/Iec 61000-4-12, En/Iec 61000-4-6 Level 3, En/Iec 61000-4-5, En/Iec 60068-2-27 Ea And En/Iec 61000-4-3 Standards. Simple To Select, Install And Program, Zelio Logic Is Suitable For All Your Applications. Flexible, It Offers You The Choice Of 2 Ranges, Compact Or Modular, Extendable And 2 Programming Languages (Fbd Or Ladder). Easy To Use, Zelio Logic Provides A Real Alternative To Solutions Based On Cabled Logic Or Specific Cards.
