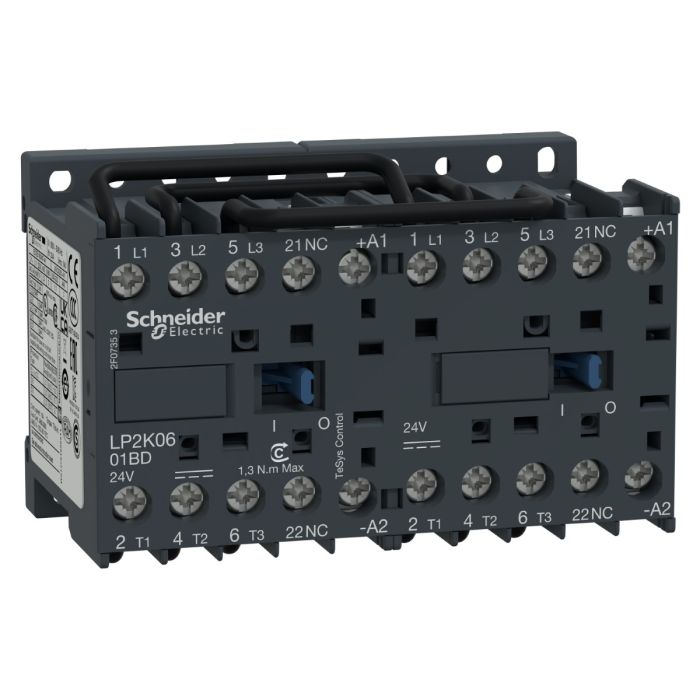

reversing Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, 1NC, 24V DC coil, screw clamp terminals

Name: reversing Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, 1NC, 24V DC coil, screw clamp terminals
Brand: Schneider Electric Saudi Arabia
SKU: LP2K0601BD
Price: 593 SAR
Availability: InStock

LP2K0601BD

Be the first one to review this.

SAR 593.00

Excl. Tax

To View the best prices please Sign in / Register.

Description

reversing Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, 1NC, 24V DC coil, screw clamp terminals

Product Details

Activity	PPCTR
[ith] Conventional Free Air Thermal Current	10 A (at 50 °C) for signalling circuit - 20 A (at 50 °C) for power circuit
Pole Contact Composition	3 NO
Product Name	TeSys K
Product or Component Type	reversing contactor
Control Circuit Type	DC standard
Device Application	control
Maximum Operating Rate	3600 cyc/h
Operating Time	10 ms coil de-energisation and NO opening - 30...40 ms coil energisation and NO closing
Mechanical Durability	5 Mcycles
Standards	CSA C22.2 No 60947-4-1 - EN/IEC 60947-4-1
Utilisation Category	AC-3 - AC-3e
[icw] Rated Short-Time withstand Current	110 A - 100 ms for signalling circuit - 20 A 50 °C - >= 15 min for power circuit
[ie] Rated Operational Current	6 A at <= 440 V AC AC-3 for power circuit - 6 A at <= 440 V AC AC-3e for power circuit
Product Certifications	CB Scheme - CCC
Associated fuse rating	10 A gG for signalling circuit conforming to IEC 60947 - 10 A gG for signalling circuit conforming to VDE 0660
Auxiliary contact composition	1 NC
Average impedance	3 mOhm - Ith 20 A 50 Hz for power circuit
Contactor application	motor control
Device presentation	preassembled with reversing power busbar
Range	TeSys
Interlocking type	mechanical
Irms rated making capacity	110 A AC for power circuit conforming to IEC 60947 - 110 A AC for power circuit conforming to NF C 63-110
Rated breaking capacity	110 A at 220...230 V conforming to IEC 60947 - 110 A at 380...400 V conforming to IEC 60947
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 - B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
