Circuit breaker Easypact EZC100H - TMD - 100 A - 1 pole 1d
Description
EasyPact EZC MCCB from 15 to 630A, with fixed settings
With just three sizes of circuit breakers, the EasyPact EZC system is the simple, universal solution to fit all low-voltage protection needs.
Easy to choose

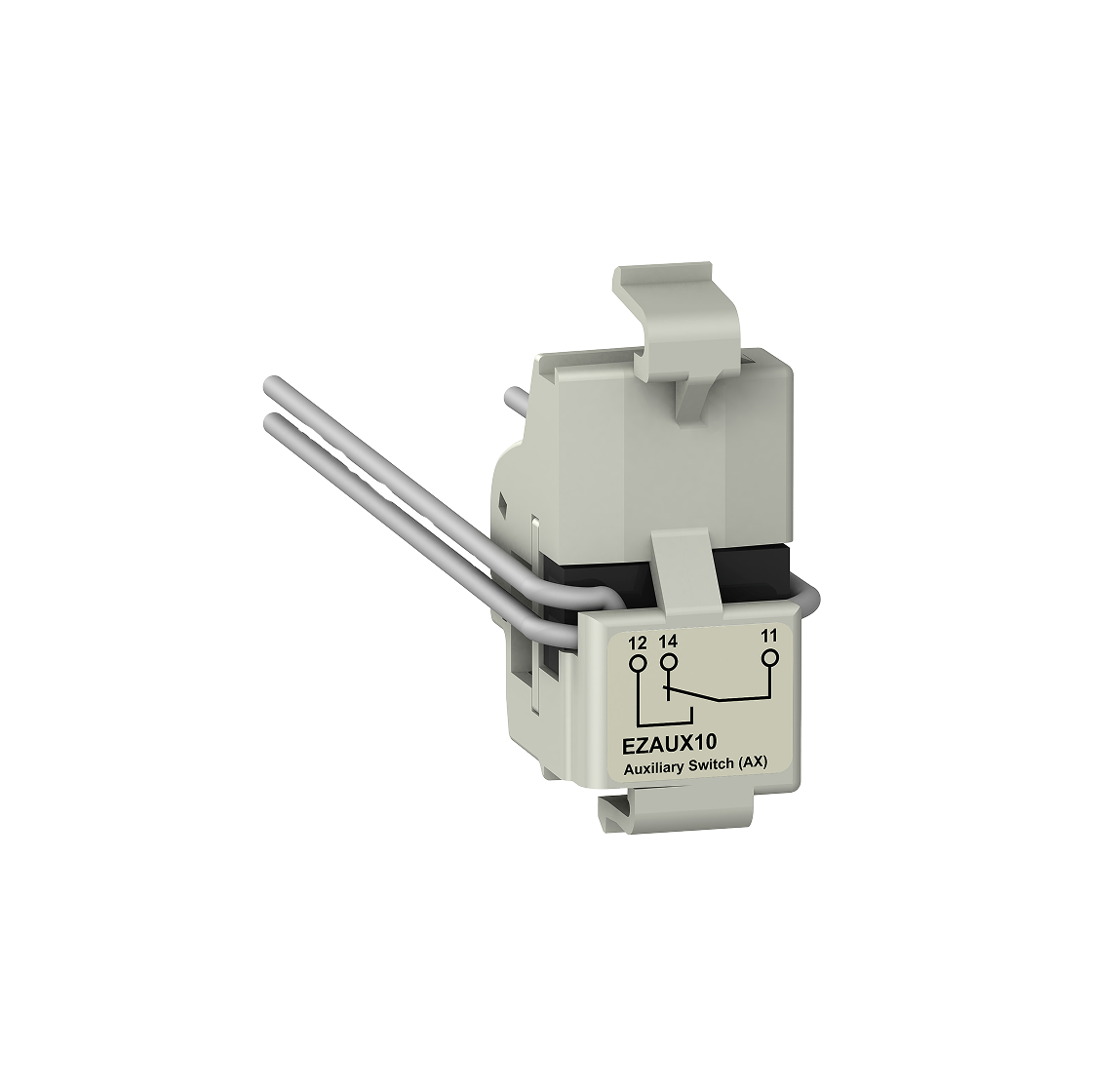

EasyPact EZC brings you easy solutions with a complete range of auxiliaries, rotary commands, shunt trips, phase barriers, terminal cover, and undervoltage trip.
Easy to install
This affordable and efficient option offers adaptability, effortless installation, and complete security that ensures both convenience and reliability for users.
Easy to use
A thermal calibration is suitable for MCCB use at 50 °C without derating (up to 250A). Positive contact indication, and smaller case optimised for tight spaces.
Enhance your power solutions with our extensive range of accessories
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged.

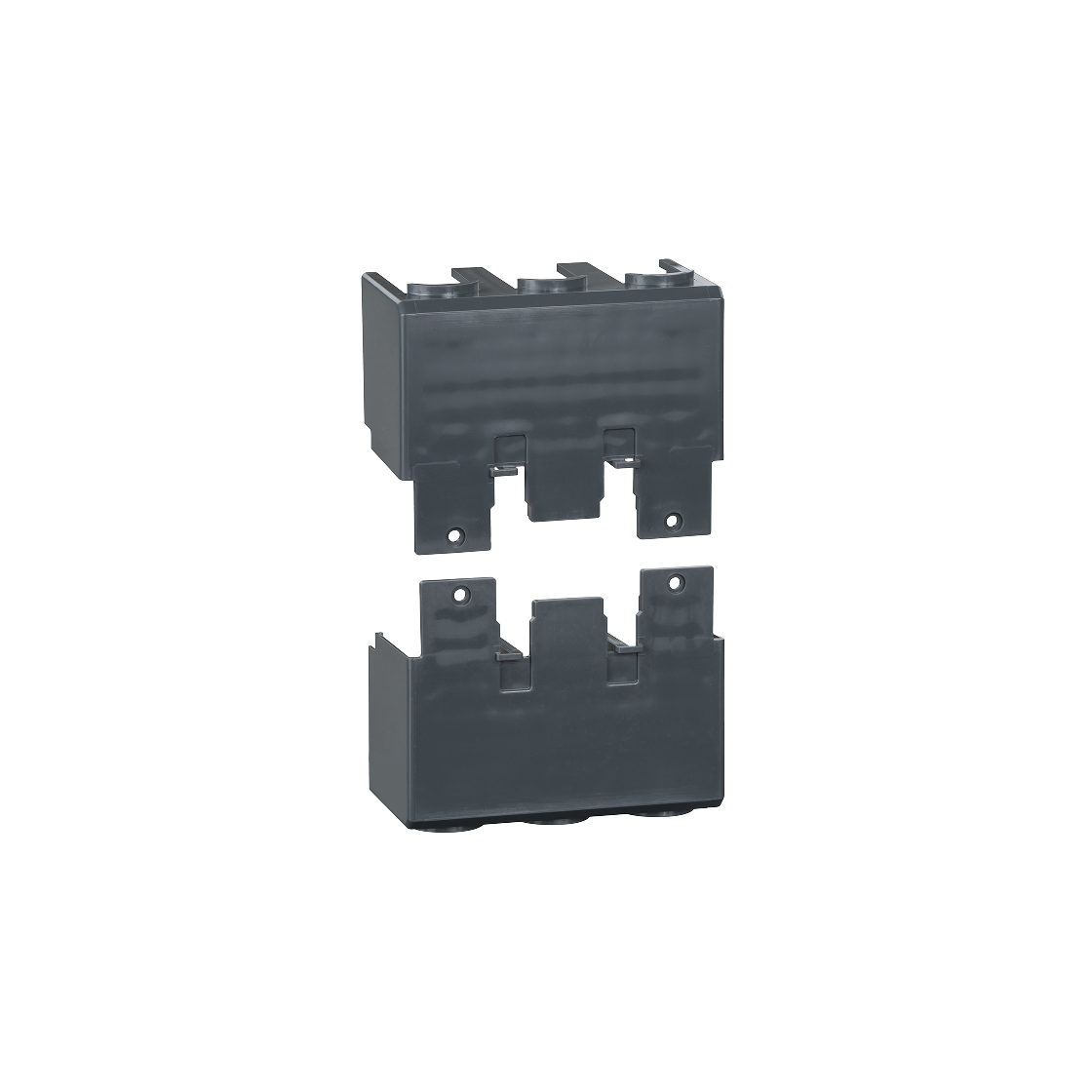

Terminal shield

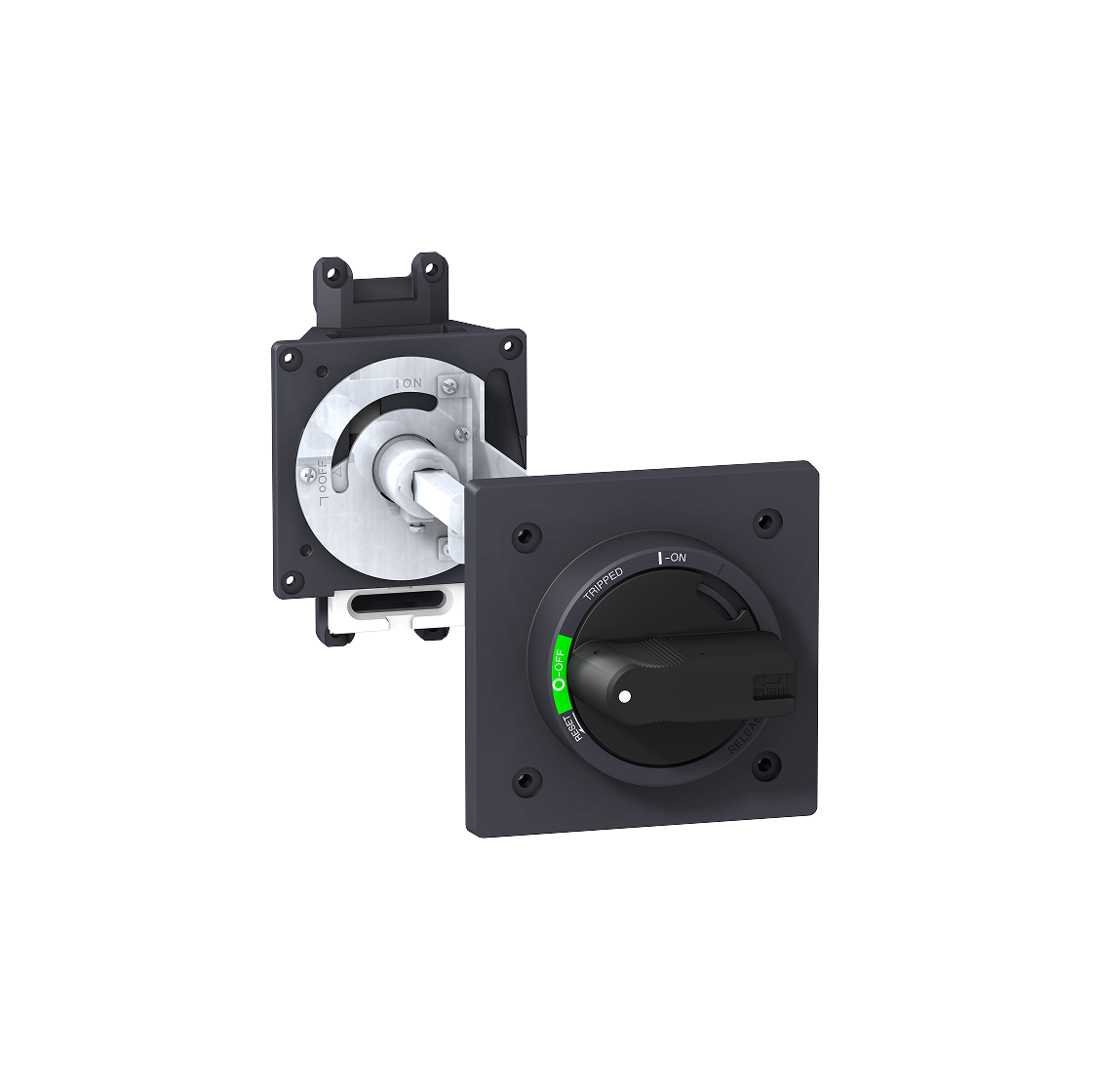

Extended rotary handle
Voltage releases
Available in two shapes to fit your look and feel
Available in two shapes to fit your look and feel
Unica system+
Unica system+

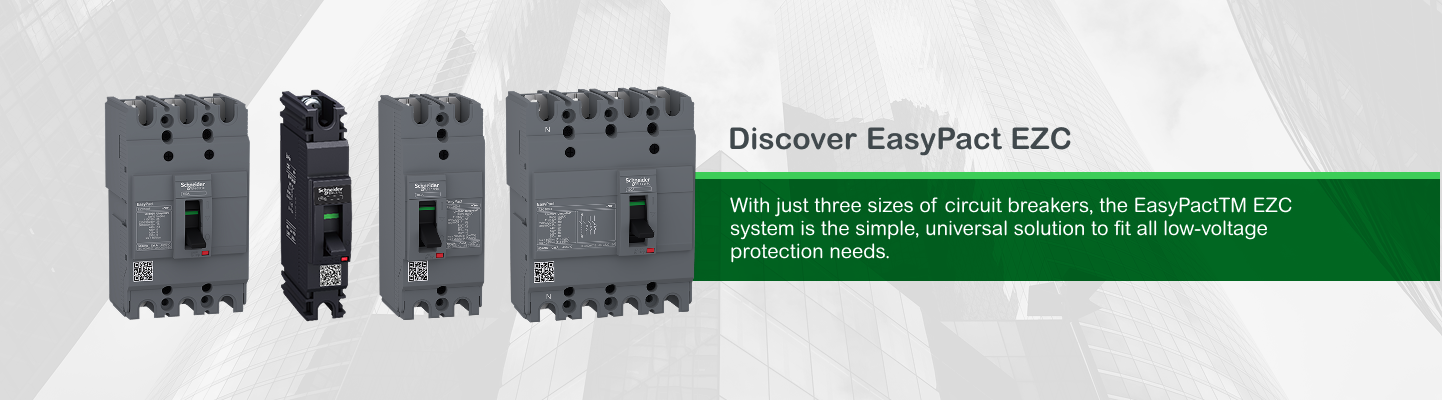

Compact, Versatile Low-Voltage Protection
The EasyPact™ EZC system offers a simple, universal solution for low-voltage protection with just three frame sizes. The fixed version suits OEM and building markets, while the plug-in version adds marine-specific functionality.
Covering 15 to 630 A with breaking capacities up to 50 kA at 400/415 V, it’s available in 1- to 4-pole versions with thermal-magnetic protection.
It includes a full range of auxiliaries and built-in earth-leakage protection (EZC 250 ELCB), and complies with IEC 60947-1/2, CCC, EAC, and other certifications.
Lorem Ipsum
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged.
Lorem Ipsum is simply
Complete range of accessories
Lorem Ipsum is simply dummy text of the printing and
Thermal-magnetic
Lorem Ipsum is simply dummy text of the printing and
Enhanced safety
Lorem Ipsum is simply dummy text of the printing and
Modular and flexible
Lorem Ipsum is simply dummy text of the printing and
Lorem Ipsum heading
Lorem Ipsum is simply dummy text of the printing and
Lorem Ipsum heading
Lorem Ipsum is simply dummy text of the printing and
Lorem Ipsum heading
Lorem Ipsum is simply dummy text of the printing and
Product Details
| Activity | PPCCB |
|---|---|
| Part Number | EZC100H1100 |
| [ics] Rated Service Breaking Capacity | 5 kA at 125 V DC conforming to IEC 60947-2, 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2, 25 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2, 2.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| [ui] Rated Insulation Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Breaking Capacity | 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2, 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2, 50 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2, 5 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 |
| breaking capacity | 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2|25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2|5 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2|5 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2|50 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2 |
| Breaking Capacity Code | H |
| Circuit Breaker Name | Easypact EZC100H |
| Connection Pitch | 25 mm |
| Downside Connection | front |
| Earth-leakage Protection | without |
| Neutral Protection Setting | without protection |
| suitability for isolation | yes conforming to IEC 60947-2 |
| Trip Unit Name | TM-D |
| trip unit rating | 100-100 A at 50 °C |
| trip unit technology | thermal-magnetic |
| Upside Connection | front |
| utilisation category | category A |
| Weight | 355.0 g |
| Package1 Length*Width*Height | 14.0 cm x 9.5 cm x 3.0 cm |
| Country of Manufacturing | Thailand |
| [in] Rated Current | 100 A at 40 °C |
| [ue] Rated Operational Voltage | 125 V DC conforming to IEC 60947-2, 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| ambient air temperature for operation | -25-70 °C |
| ambient air temperature for storage | -35-85 °C |
| compatibility code | EZC100 |
| control type | toggle |
| depth | 60 mm |
| device application | distribution |
| device short name | Easypact EZC100H |
| Electrical Durability | category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 |
| height | 130 mm |
| IK degree of protection | IK07 conforming to IEC 62262 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| local signalling | positive contact indication |
| Market Segment | small commercial |
| mechanical durability | 8500 cycles |
| mounting mode | fixed |
| mounting support | backplate |
| network frequency | 50/60 Hz |
| network type | AC, DC |
| Poles Description | 1P |
| pollution degree | 3 conforming to IEC 60664-1, 3 conforming to IEC 947-1 |
| Product Name | EasyPact EZC |
| product or component type | circuit breaker |
| Protection Type | short-circuit protection, overload protection |
| range | EasyPact |
| range of product | EasyPact |
| standards | GB/T 14048.2, EN/IEC 60947-2, EN/IEC 60947-1, JIS C8201-2-2 |
| width | 25 mm |
