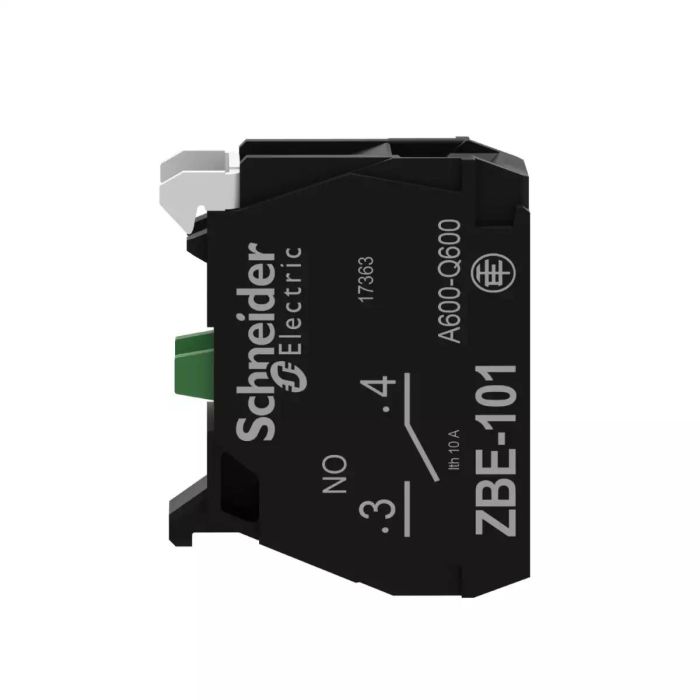

single contact block for head Ã˜22 1NO silver alloy screw clamp terminal

single contact block for head Ø22 1NO silver alloy screw clamp terminal

single contact block for head Ø22 1NO silver alloy screw clamp terminal

Name: single contact block for head Ø22 1NO silver alloy screw clamp terminal
Brand: Schneider Electric
SKU: ZBE101
Price: 1.48017 KWD
Availability: InStock

ZBE101

Be the first one to review this.

KWD 1.480

KWD 1.155

Excl. Tax

To View the best prices please Sign in / Register.

Seller

AL FAJR AL JADID COMPANY WLL 0

View Seller Profile

818 In stock

Delivered within 1-4 Days

Description

How to Video

Promotional Video

Product Details

Activity	IDSIG
Part Number	ZBE101
[Ith] conventional free air thermal current	10 A conforming to EN/IEC 60947-5-1
[Ui] rated insulation voltage	600 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage	6 kV conforming to EN 60947-1
ambient air temperature for storage	-40-70 °C
compatibility code	ZBE
connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
contact operation	slow-break
contacts material	silver alloy (Ag/Ni)
device short name	ZBE
IP degree of protection	IP20 conforming to IEC 60529
mechanical durability	10000000 cycles
net weight	0.011 kg
positive opening	without
product certifications	CCC, UL, DNV, GL, GOST, LROS (Lloyds register of shipping), BV, CSA
product or component type	contact block
protective treatment	TH
range of product	Harmony XB5, Harmony XB4
sale per indivisible quantity	5
shape of screw head	cross compatible with pozidriv No 1 screwdriver, slotted compatible with flat Ø 4 mm screwdriver, slotted compatible with flat Ø 5.5 mm screwdriver
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
short-circuit protection	10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
tightening torque	0.8-1.2 N.m conforming to EN 60947-1
contacts type and composition	1 NO
Contacts usage	standard contacts
Operating force	2.3 N NO changing electrical state
Operating travel	2.6 mm (NO changing electrical state), 4.3 mm (total travel)
Electrical composition code	C1 (quantity <= 9 ), C2 (quantity <= 7 ), C3 (quantity <= 6 ), C4 (quantity <= 4 ), C5 (quantity <= 5 ), C6 (quantity <= 3 ), C7 (quantity <= 4 ), C8 (quantity <= 2 ), C9 (quantity <= 3 ), C12 (quantity <= 6 ), M1 (quantity <= 6 ), M2 (quantity <= 4 ), M3 (quantity <= 4 ), M5 (quantity <= 2 ), M6 (quantity <= 2 ), M7 (quantity <= 6 ), M8 (quantity <= 4 ), M9 (quantity <= 2 ), SF1 (quantity <= 3 ), SF2 (quantity <= 2 ), MF1 (quantity <= 2 ), MF2 (quantity <= 2 ), C10 (quantity <= 2 ), M4 (quantity <= 2 ), C13 (quantity <= 1 )
Contact block type	single
Mounting of block	front mounting
vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
ambient air temperature for operation	-40-70 °C
standards	CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-4, JIS C8201-1
[Ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1, 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
Device Presentation	basic element
Electrical Durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
