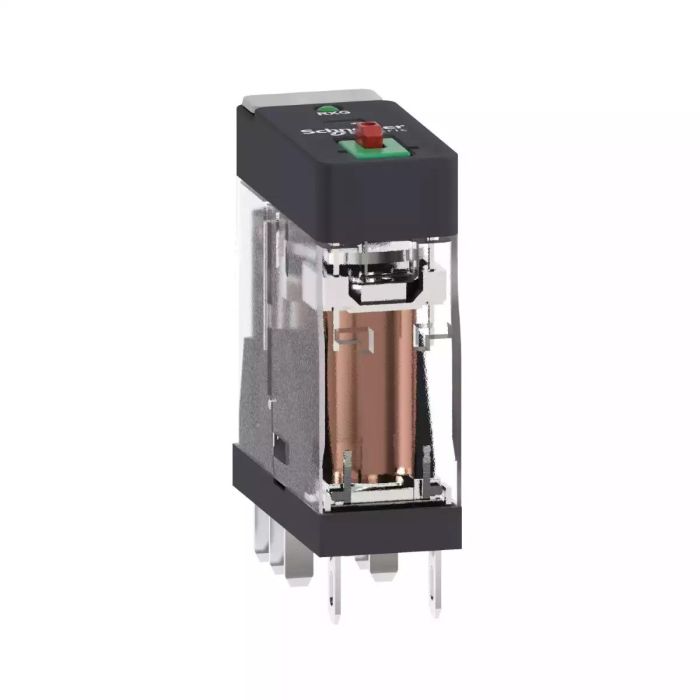

interface plug-in relay - Zelio RXG - 2C/O standard -24VAC-5A - with LTB and LED
RXG22B7
KWDÂ 0.000
Excl. Tax
To View the best prices please Sign in / Register.
Loading...
All Sellers
RXG22B7
interface plug-in relay - Zelio RXG - 2C/O standard -24VAC-5A - with LTB and LED
| Seller | Price | Delivery | Shipping Cost | |
|---|---|---|---|---|
|
View Seller Profile
B2B Network
|
|
Shipping Cost
Free Shipping
|
No sellers found for this product.
Out of stock
interface plug-in relay - Zelio RXG - 2C/O standard -24VAC-5A - with LTB and LED
KWDÂ 0.000
Description
How to Video
Promotional Video
Product Details
| Activity | IDSIG |
|---|---|
| Part Number | RXG22B7 |
| Rated current | 5:00 AM |
| [Ithe] conventional enclosed thermal current | 5 A at -40-55 °C |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 6 kV 1.2/50 µs |
| ambient air temperature for storage | -40-85 °C |
| contacts material | silver alloy (AgSnO2In2O3) |
| control circuit voltage limits | 0.8...1.1 Uc AC |
| control type | lockable test button |
| device short name | RXG |
| dielectric strength | 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation |
| drop-out voltage threshold | >= 0.3 Uc AC |
| IP degree of protection | IP40 |
| load current | 5 A at 250 V AC |
| maximum switching capacity | 1250 VA |
| maximum switching voltage | 250 V AC, 30 V DC |
| mechanical durability | 10000000 cycles |
| minimum switching capacity | 50 mW at 10 mA, 5 V DC |
| mounting position | any position |
| net weight | 0.02 kg |
| operating rate | <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load |
| operating time | 20 ms |
| overvoltage category | III |
| pollution degree | 2 |
| product certifications | UL, EAC, CSA, CE, DNV-GL |
| product or component type | plug-in relay |
| protection category | RT I |
| range of product | Harmony Electromechanical Relays |
| relative humidity | 10-85 % |
| series name | interface relay |
| shock resistance | 20 gn in operation, 100 gn not in operation |
| test levels | level A group mounting |
| utilisation coefficient | 20% |
| contacts type and composition | 2 C/O |
| Reset time | 20 ms |
| Average consumption | 0.82 VA 60 Hz |
| Torque value | 0.8 N.m |
| Resistance | 260 Ohm +/- 10 % |
| vibration resistance | 3 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)in operation, 5 gn, amplitude = +/- 0.75 mm (f = 10-150 Hz)not in operation |
| status LED | with |
| ambient air temperature for operation | -40-70 °C |
| standards | UL 508, IEC 61810-1, CSA C22.2 No 14 |
| local signalling | flag |
| [Ie] rated operational current | 5 A at 30 V (DC) conforming to UL, 5 A at 30 V (DC) conforming to IEC, 5 A at 250 V (AC) conforming to IEC, 5 A at 250 V (AC) conforming to UL |
| safety reliability data | B10d = 100000 |
| insulation resistance | 1000 MOhm at 500 V DC |
| Device Presentation | complete product |
| Colour of Cover | standard |
| Electrical Insulation Class | class F |
| Contact Resistance | 100 mOhm |
| Electrical Durability | 100000 cycles for NO resistive load at 55 °C, 100000 cycles for NC resistive load at 55 °C |
