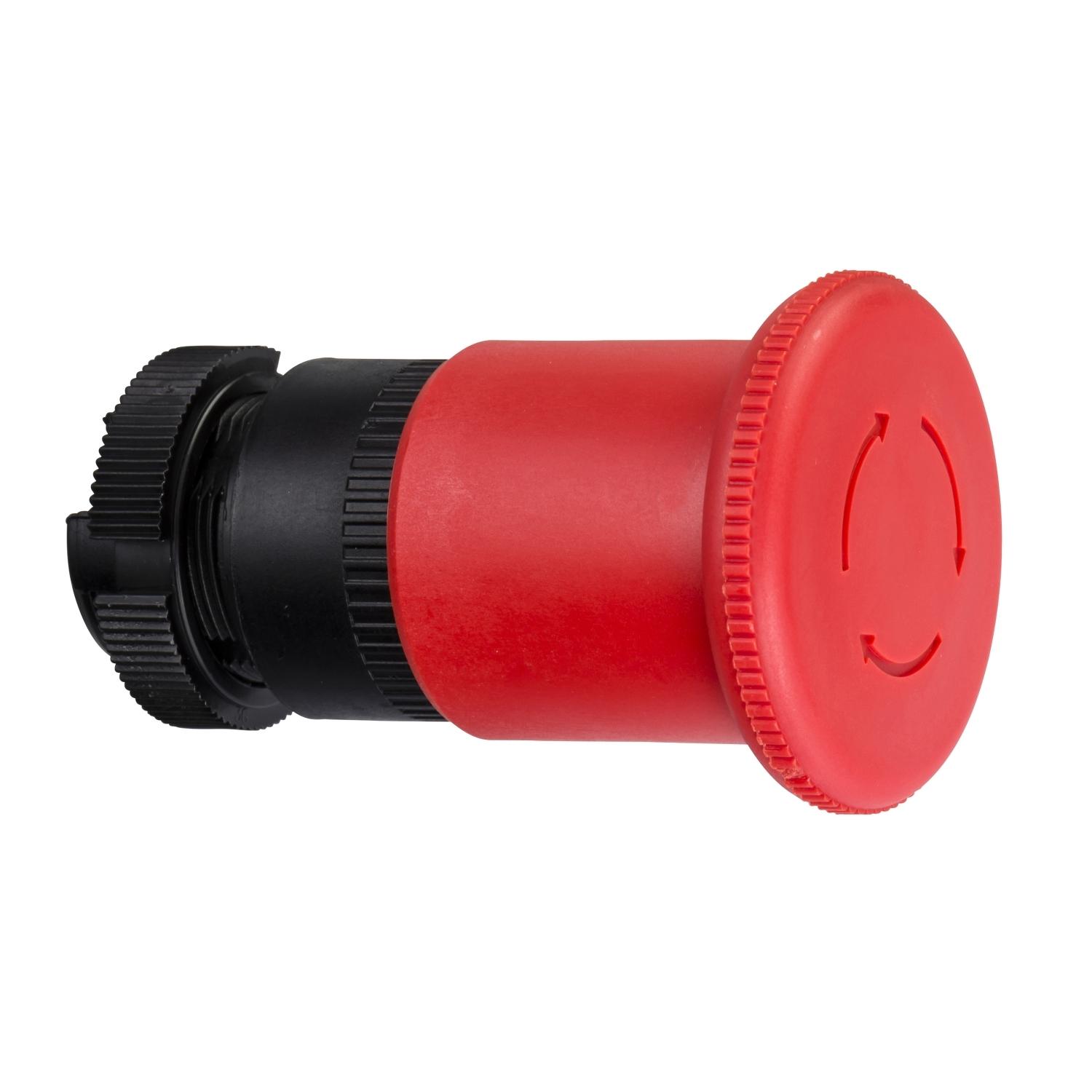

Red Ø40 Emergency stop, switching off head trigger and latching turn release
SKU :
ZA2BS844
Red Ø40 Emergency stop, switching off head trigger and latching turn release
SKU:
ZA2BS844
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is in stock
Loading...
Further offers for this product
ZA2BS844
Red Ø40 Emergency stop, switching off head trigger and latching turn release
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Excl. Tax
Free shipping on orders above ₹499
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹ 4,028.00
₹ 2,779.32
Excl. Tax
To View the best prices please Sign in / Register.
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
No of Modules
Color
Red Ø40 Emergency stop, switching off head trigger and latching turn release
₹ 4,028.00
₹ 2,779.32
- Specifications
- Environmental Data
- Documents
- Reviews
Overview
| Product Name | Red Ø40 Emergency stop, switching off head trigger and latching turn release |
|---|---|
| Tax Class | GST-18 |
| Short Description | |
| Range of product | HARMONY XAC |
| Product or component type | HEAD FOR EMERGENCY SWITCHING OFF PUSH-BUTTON |
| Sale per indivisible quantity | 1 |
| Product compatibility | XACA.. |
| Mounting location | FRONT OF ENCLOSURE |
| Overvoltage category | CLASS II CONFORMING TO IEC 61140 |
| Operator profile | RED MUSHROOM Ø 40 MM |
| Product weight | 0.05 KG |
| Marking | UNMARKED |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| IK degree of protection | IK08 |
| Standards | IEC 60204-32IEC 60947-5-1CSA C22.2 NO 14UL 508IEC 60947-5-5IEC 62262 |
| Vibration resistance | 15 GN (F= 10…500 HZ) CONFORMING TO IEC 60068-2-6 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.100 CM |
| Package 1 Width | 11.000 CM |
| Package 1 Length | 10.000 CM |
| Package 1 Weight | 45.000 G |
| Unit Type of Package 2 | S01 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 CM |
| Package 2 Width | 15.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 1.940 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| REACh free of SVHC | ✓ |
| Toxic heavy metal free | ✓ |
| Mercury free | ✓ |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Total lifecycle Carbon footprint | 0.4 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.2799626866 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.3 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0174597015 |
| Carbon footprint of the distribution phase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.0443626866 |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 0 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.0409731343 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0 kg CO2 eq. |
| REACh Regulation | Free of Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant (Download) |
