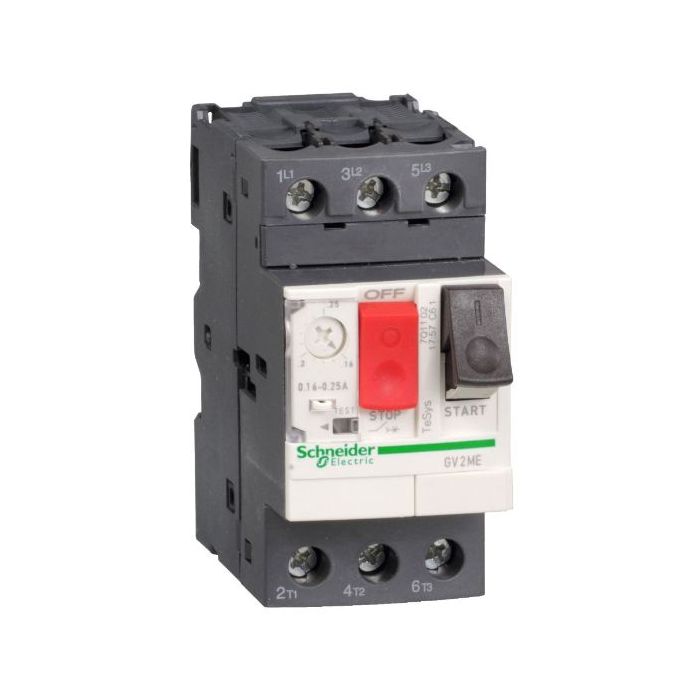

TeSys GV2 MPCB Overload Protection range of 24-32A

Share
In stock
SKU
GV2ME32
Regular Price ₹ 13,475 Special Price ₹ 6,333
53% Off ( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY

Main
range
TeSys

product name
TeSys GV2

device short name
GV2ME

device application
Motor

trip unit technology
Thermal-magnetic

Complementary
poles description
3P

network type
AC

utilisation category
AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2

network frequency
50/60 Hz conforming to IEC 60947-4-1

fixing mode
35 mm symmetrical DIN rail: clipped
Panel: screwed (with adaptor plate)

operating position
Any position

motor power kW
15 kW at 400/415 V AC 50/60 Hz
18.5 kW at 500 V AC 50/60 Hz
22 kW at 690 V AC 50/60 Hz

breaking capacity
3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2

control type
Push-button

[In] rated current
32 A

thermal protection adjustment range
24…32 A

magnetic tripping current
416 A

[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2

[Ith] conventional free air thermal current
32 A conforming to IEC 60947-4-1

[Uimp] rated impulse withstand voltage
IEC 60947-2 6 kV

power dissipation per pole
2.5 W

mechanical durability
100000 cycles

electrical durability
100000 cycles for AC-3 at 440 V

maximum operating rate
25 cyc/h

rated duty
Continuous conforming to IEC 60947-4-1

connections - terminals
Screw clamp terminals 2 cable(s) 1…6 mm² solid
Screw clamp terminals 2 cable(s) 1.5…6 mm² flexible without cable end
Screw clamp terminals 2 cable(s) 1…4 mm² flexible with cable end

tightening torque
1.7 N.m on screw clamp terminals

suitability for isolation
Yes conforming to IEC 60947-1

phase failure sensitivity
Yes conforming to IEC 60947-4-1

height
89 mm

width
45 mm

depth
78.5 mm

net weight
0.26 kg

Environment
standards
EN/IEC 60947-2
EN/IEC 60947-4-1
CSA C22.2 No 60947-4-1
UL 60947-4-1

product certifications
IECEE CB Scheme
UL
CSA
CCC
EAC
ATEX
BV
LROS (Lloyds register of shipping)
DNV-GL
RINA

protective treatment
TH

IP degree of protection
IP20 conforming to IEC 60529

IK degree of protection
IK04

ambient air temperature for operation
-20…60 °C

ambient air temperature for storage
-40…80 °C

fire resistance
960 °C conforming to IEC 60695-2-1

operating altitude
2000 m
