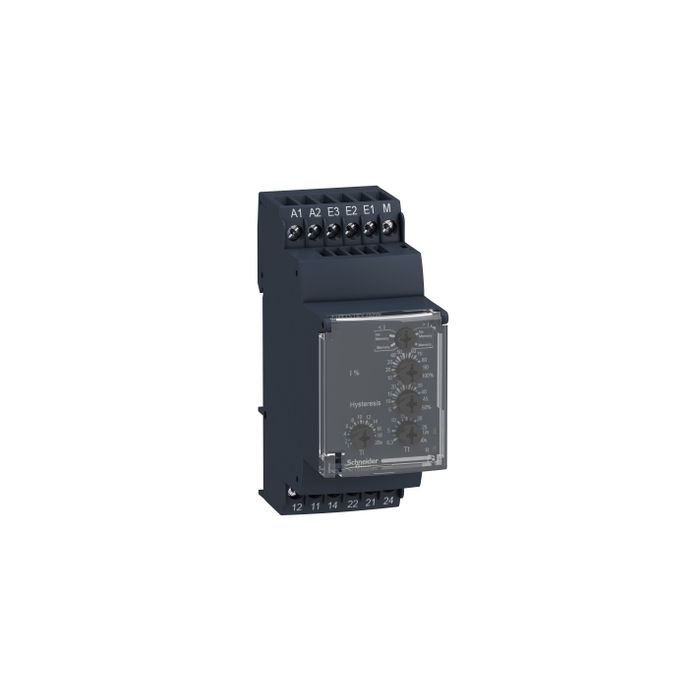

Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC
SKU :
RM35JA32MW
Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC
SKU: RM35JA32MW
Images:
Image 360:
How to video:
Unfortunately this product is not available at this moment
Notify me when this product is in stock
Loading...
Further offers for this product
RM35JA32MW
Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Excl. Tax
Free shipping on orders above ₹499
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹ 7,795.00
₹ 3,819.55
Excl. Tax
To View the best prices please Sign in / Register.
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC
₹ 7,795.00
₹ 3,819.55
- Specifications
- Environmental Data
- Documents
- Reviews
Overview
| Product Name | Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DC |
|---|---|
| Tax Class | GST-18 |
| Current Rating | 5A |
| Short Description | |
| Range of product | HARMONY CONTROL RELAYS |
| Relay type | CURRENT CONTROL RELAY |
| Product or component type | CURRENT CONTROL RELAY |
| Relay name | RM35JA |
| Relay monitored parameters | OVERCURRENT OR UNDERCURRENT DETECTION |
| Time delay type | ADJUSTABLE 0.3...30 S, 0 + 10 % TT- TIME DELAY UPON FAULTADJUSTABLE 1...20 S, 0 + 10 % TI- INHIBITION TIME DELAY UPON STARTUP |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 MA AT 5 V DC |
| Maximum switching current | 5 A AC/DC |
| Maximum power consumption in VA | 3.5 VA AC |
| Measurement range | 150 MA...15 A CURRENT AC/DC |
| Utilisation category | AC-12 CONFORMING TO IEC 60947-5-1AC-13 CONFORMING TO IEC 60947-5-1AC-14 CONFORMING TO IEC 60947-5-1AC-15 CONFORMING TO IEC 60947-5-1DC-12 CONFORMING TO IEC 60947-5-1DC-13 CONFORMING TO IEC 60947-5-1DC-14 CONFORMING TO IEC 60947-5-1 |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 MS TIME DELAY |
| Maximum switching voltage | 250 V AC/DC |
| Supply voltage limits | 20.4…264 V AC/DC |
| operating voltage tolerance | - 15 % + 10 % UN |
| Maximum power consumption in W | 0.6 W DC |
| Control circuit frequency | 40...70 HZ +/- 10 % |
| Resistance across terminals | 0.005 OHM AT E3-M TERMINALS0.015 OHM AT E2-M TERMINALS0.05 OHM AT E1-M TERMINALS |
| Output contacts | 2 C/O |
| nominal output current | 5 A |
| Maximum measuring cycle | 30 MS MEASUREMENT CYCLE AS TRUE RMS VALUE |
| Hysteresis | 5…50 % OF THRESHOLD SETTING |
| delay at power up | 0.3 S |
| Measurement accuracy | +/- 10 % OF THE FULL SCALE VALUE |
| Repeat accuracy | +/- 0.5 % FOR INPUT AND MEASUREMENT CIRCUIT+/- 2 % FOR TIME DELAY |
| Measurement error | 0.05 %/°C WITH TEMPERATURE VARIATION1 BY VOLT OVER THE WHOLE RANGE WITH VOLTAGE VARIATION |
| Polarity | NO DC |
| Threshold setting | 10...100 % |
| Marking | CE : EMC 89/336/EECCE : 73/23/EEC |
| Overvoltage category | III CONFORMING TO IEC 60664-1 |
| Insulation resistance | > 500 MOHM AT 500 V DC BETWEEN SUPPLY AND RELAY OUTPUT CONFORMING TO IEC 60255-5> 500 MOHM AT 500 V DC BETWEEN MEASUREMENT AND RELAY OUTPUT CONFORMING TO IEC 60664-1> 1 MOHM AT 500 V DC BETWEEN SUPPLY AND MEASUREMENT CONFORMING TO IEC 60255-5> 500 MOHM AT 500 V DC BETWEEN SUPPLY AND RELAY OUTPUT CONFORMING TO IEC 60664-1> 500 MOHM AT 500 V DC BETWEEN MEASUREMENT AND RELAY OUTPUT CONFORMING TO IEC 60255-5> 1 MOHM AT 500 V DC BETWEEN SUPPLY AND MEASUREMENT CONFORMING TO IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V CONFORMING TO IEC 60664-1 |
| Insulation | BETWEEN SUPPLY AND MEASUREMENT |
| Operating position | ANY POSITION WITHOUT DERATING |
| Connections - terminals | SCREW TERMINALS, 1 X 0.5...1 X 4 MM² (AWG 20...AWG 11) SOLID WITHOUT CABLE ENDSCREW TERMINALS, 2 X 0.5...2 X 2.5 MM² (AWG 20...AWG 14) SOLID WITHOUT CABLE ENDSCREW TERMINALS, 1 X 0.2...1 X 2.5 MM² (AWG 24...AWG 12) FLEXIBLE WITH CABLE ENDSCREW TERMINALS, 2 X 0.2...2 X 1.5 MM² (AWG 24...AWG 16) FLEXIBLE WITH CABLE END |
| Tightening torque | 0.6…1 N.M CONFORMING TO IEC 60947-1 |
| Housing material | POLYCARBONATE |
| Local signalling | LED (GREEN) FOR POWER ONLED (YELLOW) FOR RELAY ON |
| Mounting support | 35 MM SYMMETRICAL DIN RAIL CONFORMING TO IEC 60715 |
| Electrical durability | 100000 CYCLES |
| Mechanical durability | 30000000 CYCLES |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 HZ, NON SELF-POWERED |
| Safety reliability data | MTTFD = 296.8 YEARSB10D = 270000 |
| Contacts material | CADMIUM FREE |
| Width | 35 MM |
| Control type | WITHOUT TEST BUTTON |
| Product weight | 0.13 KG |
| Immunity to microbreaks | 50 MS |
| Electromagnetic compatibility | EMISSION STANDARD FOR INDUSTRIAL ENVIRONMENTS CONFORMING TO IEC 61000-6-4EMISSION STANDARD FOR RESIDENTIAL, COMMERCIAL AND LIGHT-INDUSTRIAL ENVIRONMENTS CONFORMING TO IEC 61000-6-3IMMUNITY FOR INDUSTRIAL ENVIRONMENTS CONFORMING TO NF EN/IEC 61000-6-2 |
| Standards | IEC 60255-6 |
| Product certifications | GLULGOSTC-TickCSA |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % AT 55 °C CONFORMING TO IEC 60068-2-30 |
| Vibration resistance | 0.35 MM (F= 5…57.6 HZ) CONFORMING TO IEC 60068-2-61 GN (F= 57.6…150 HZ) CONFORMING TO IEC 60255-21-1 |
| Shock resistance | 15 GN FOR 11 MS CONFORMING TO IEC 60255-21-1 |
| IP degree of protection | IP20 (TERMINALS) CONFORMING TO IEC 60529IP30 (CASING) CONFORMING TO IEC 60529 |
| Pollution degree | 3 CONFORMING TO IEC 60664-1 |
| Dielectric test voltage | 2 KV, 1 MIN AC 50 HZ CONFORMING TO IEC 60255-52 KV, 1 MIN AC 50 HZ CONFORMING TO IEC 60664-1 |
| Non-dissipating shock wave | 4 KV CONFORMING TO IEC 60255-54 KV CONFORMING TO IEC 60664-14 KV CONFORMING TO IEC 61000-4-5 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.500 CM |
| Package 1 Width | 8.000 CM |
| Package 1 Length | 9.500 CM |
| Package 1 Weight | 136.000 G |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 30.000 CM |
| Package 2 Width | 30.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 7.291 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Total lifecycle Carbon footprint | 58 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 2.6720909091 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 3 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0167723636 |
| Carbon footprint of the distribution phase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.0006485936 |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 54.9367466667 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 55 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.0755394545 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.1 kg CO2 eq. |
| SCIP Number | 5e3fdf99-611b-4d07-ad17-6eba84ab488b |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
