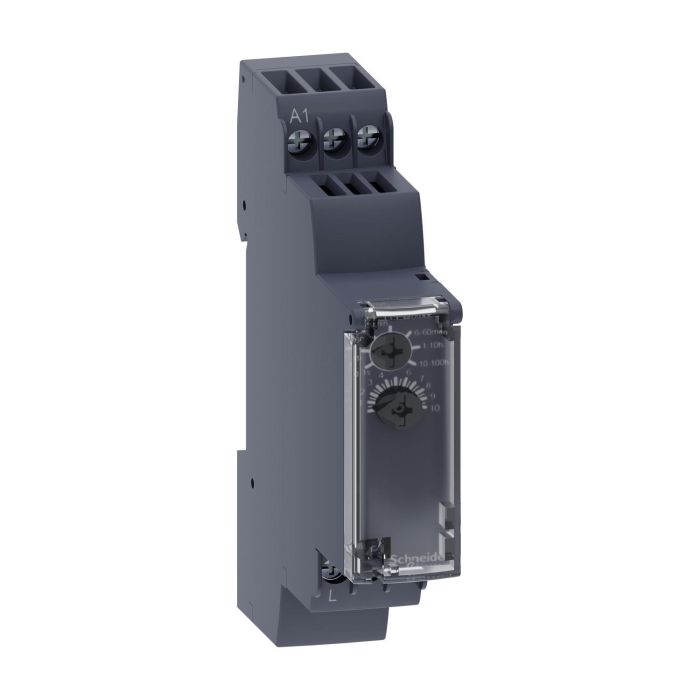

Modular timing relay, 0.7 A, 1 CO, 1 s..100 h, on delay, solid state output, 24..240 V AC/DC
₹ 3,394.00
₹ 1,798.82
- Specifications
- Environmental Data
- Documents
- Reviews
Overview
| Product Name | Modular timing relay, 0.7 A, 1 CO, 1 s..100 h, on delay, solid state output, 24..240 V AC/DC |
|---|---|
| Tax Class | GST-18 |
| Current Rating | 0.7A |
| Short Description | Estimated delivery: Timelines may vary based on availability |
| Product Hover Image | /p/f/pf153307_web_1_.jpg |
| Range of product | HARMONY TIMER RELAYS |
| Discrete output type | SOLID STATE |
| Width | 17.5 MM |
| Product or component type | MODULAR TIMING RELAY |
| Component name | RE17L |
| Time delay range | 1...10 S10...100 H6...60 S0.1...1 S1...10 MIN6...60 MIN1...10 H |
| nominal output current | 0.7 A |
| Height | 90 MM |
| Depth | 72 MM |
| Control type | SELECTOR SWITCH FRONT PANEL |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 HZ |
| Voltage range | 0.85...1.1 US |
| Supply frequency | 50...60 HZ +/- 5 % |
| control signal pulse width | 0.05 S TYPICAL |
| Insulation resistance | 100 MOHM AT 500 V DC CONFORMING TO IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 5 KV DURING 1.2/50 µS |
| power on delay | 100 MS |
| Connections - terminals | SCREW TERMINALS, 1 X 0.5...1 X 3.3 MM² (20 AWG...12 AWG) SOLID WITHOUT CABLE ENDSCREW TERMINALS, 2 X 0.5...2 X 2.5 MM² (20 AWG...14 AWG) SOLID WITHOUT CABLE ENDSCREW TERMINALS, 1 X 0.2...1 X 2.5 MM² (24 AWG...14 AWG) FLEXIBLE WITH CABLE ENDSCREW TERMINALS, 2 X 0.2...2 X 1.5 MM² (24 AWG...16 AWG) FLEXIBLE WITH CABLE END |
| Tightening torque | 0.6…1 N.M CONFORMING TO IEC 60947-1 |
| Dielectric strength | 2.5 KV 1 MA/1 MINUTE 50 HZ CONFORMING TO IEC 61812-1 |
| Housing material | POLYCARBONATE |
| Repeat accuracy | +/- 0.5 % CONFORMING TO IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % OF FULL SCALE AT 25 °C CONFORMING TO IEC 61812-1 |
| Time delay type | POWER ON-DELAY - A- POWER ON-DELAY RELAY |
| Reset time | 350 MS ON DE-ENERGISATION TYPICAL |
| On-load factor | 100 % |
| Power consumption in VA | 0…3 VA AT 240 V AC |
| Maximum power consumption in W | 1.5 W AT 240 V DC |
| Breaking capacity | 0.5 A AC/DC CONFORMING TO UL0.7 A AC/DC AT 20 °C |
| operating frequency | 10 HZ |
| Maximum output current | 20 A |
| minimum switching current | 10 MA |
| Maximum leakage current | 5 MA |
| Maximum switching voltage | 250 V AC/DC |
| Electrical durability | 100000000 CYCLES |
| Marking | CE |
| Creepage distance | 4 KV/3 CONFORMING TO IEC 60664-1 |
| Safety reliability data | MTTFD = 353.8 YEARSB10D = 320000 |
| Mounting position | ANY POSITION IN RELATION TO NORMAL VERTICAL MOUNTING PLANE |
| Mounting support | 35 MM DIN RAIL CONFORMING TO IEC 60715 |
| Function available | A- POWER ON-DELAY RELAY-1 SOLID STATE OUTPUT |
| Control type | WITHOUT TEST BUTTON |
| Product weight | 0.068 KG |
| Time delay type | A |
| Functionality | ON-DELAY TIMING |
| Number of functions | 1 |
| Compatibility code | RE17 |
| Immunity to microbreaks | 20 MS |
| Derating factor | 5 MA/°C |
| Standards | 2004/108/ECIEC 61000-6-12006/95/ECIEC 61000-6-3IEC 61000-6-2IEC 61812-1IEC 61000-6-4 |
| Product certifications | GLCSAcULus |
| Ambient air temperature for storage | -30…60 °C |
| Ambient air temperature for operation | -20…60 °C |
| IP degree of protection | IP20 (TERMINAL BLOCK) CONFORMING TO IEC 60529IP40 (HOUSING) CONFORMING TO IEC 60529IP50 (FRONT PANEL) CONFORMING TO IEC 60529 |
| Vibration resistance | 20 M/S² (F= 10…150 HZ) CONFORMING TO IEC 60068-2-6 |
| Shock resistance | 15 GN FOR 11 MS CONFORMING TO IEC 60068-2-27 |
| Relative humidity | 93 % WITHOUT CONDENSATION CONFORMING TO IEC 60068-2-30 |
| Electromagnetic compatibility | ELECTROSTATIC DISCHARGE IMMUNITY TEST: (IN CONTACT), LEVEL 3, 6 KV, CONFORMING TO IEC 61000-4-2ELECTROSTATIC DISCHARGE IMMUNITY TEST: (IN AIR), LEVEL 3, 8 KV, CONFORMING TO IEC 61000-4-2SUSCEPTIBILITY TO ELECTROMAGNETIC FIELDS: (80 MHZ TO 1 GHZ), LEVEL 3, 10 V/M, CONFORMING TO IEC 61000-4-3ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST: (CAPACITIVE CONNECTING CLIP), LEVEL 3, 1 KV, CONFORMING TO IEC 61000-4-4ELECTRICAL FAST TRANSIENT/BURST IMMUNITY TEST: (DIRECT), LEVEL 3, 2 KV, CONFORMING TO IEC 61000-4-41.2/50 µS SHOCK WAVES IMMUNITY TEST: (DIFFERENTIAL MODE), LEVEL 3, 1 KV, CONFORMING TO IEC 61000-4-51.2/50 µS SHOCK WAVES IMMUNITY TEST: (COMMON MODE), LEVEL 3, 2 KV, CONFORMING TO IEC 61000-4-5CONDUCTED RF DISTURBANCES: (0.15...80 MHZ), LEVEL 3, 10 V, CONFORMING TO IEC 61000-4-6VOLTAGE DIPS AND INTERRUPTIONS IMMUNITY TEST: (1 CYCLE), 0 %, CONFORMING TO IEC 61000-4-11VOLTAGE DIPS AND INTERRUPTIONS IMMUNITY TEST: (25/30 CYCLES), 70 %, CONFORMING TO IEC 61000-4-11CONDUCTED AND RADIATED EMISSIONS: , CLASS B, CONFORMING TO EN 55022 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.600 CM |
| Package 1 Width | 7.800 CM |
| Package 1 Length | 9.500 CM |
| Package 1 Weight | 70.000 G |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 40 |
| Package 2 Height | 15.000 CM |
| Package 2 Width | 30.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 3.270 KG |
| Warranty (in months) | 18 |
