NON-AUTOMATIC MOLDED CASE SWITCH 690V
- Description
- Specifications
- Reviews
Description

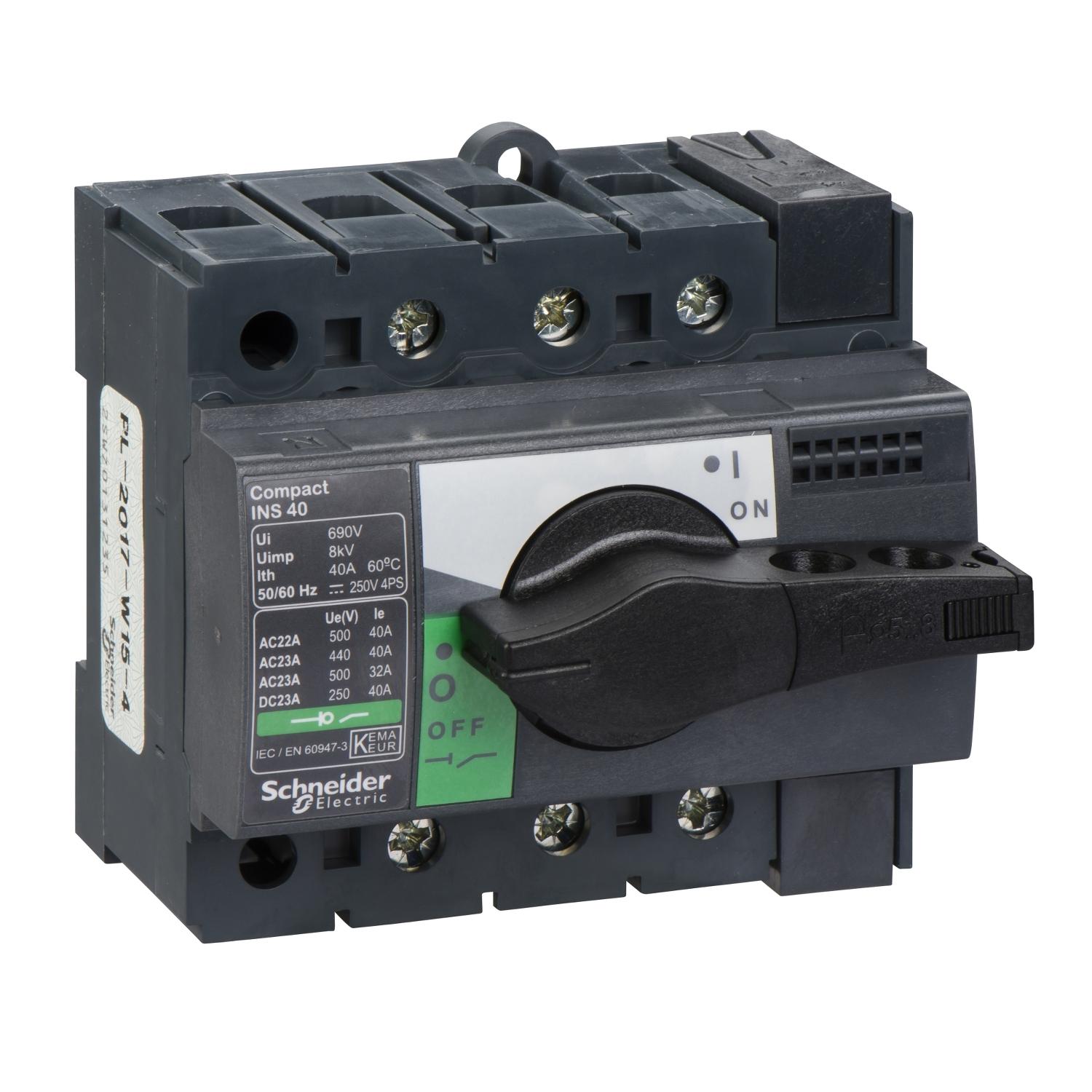

This Compact INS40 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 125VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS40 is a class II insulation level front-face device as per IEC 60664 standard.
Overview
| Product Name | NON-AUTOMATIC MOLDED CASE SWITCH 690V |
|---|---|
| Range Name | ComPacT INS |
| Tax Class | GST-18 |
| Current Rating | 40A |
Reviews
Description
This Compact INS40 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 125VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS40 is a class II insulation level front-face device as per IEC 60664 standard.
Overview
| Product Name | NON-AUTOMATIC MOLDED CASE SWITCH 690V |
|---|---|
| Range Name | ComPacT INS |
| Tax Class | GST-18 |
| Current Rating | 40A |
