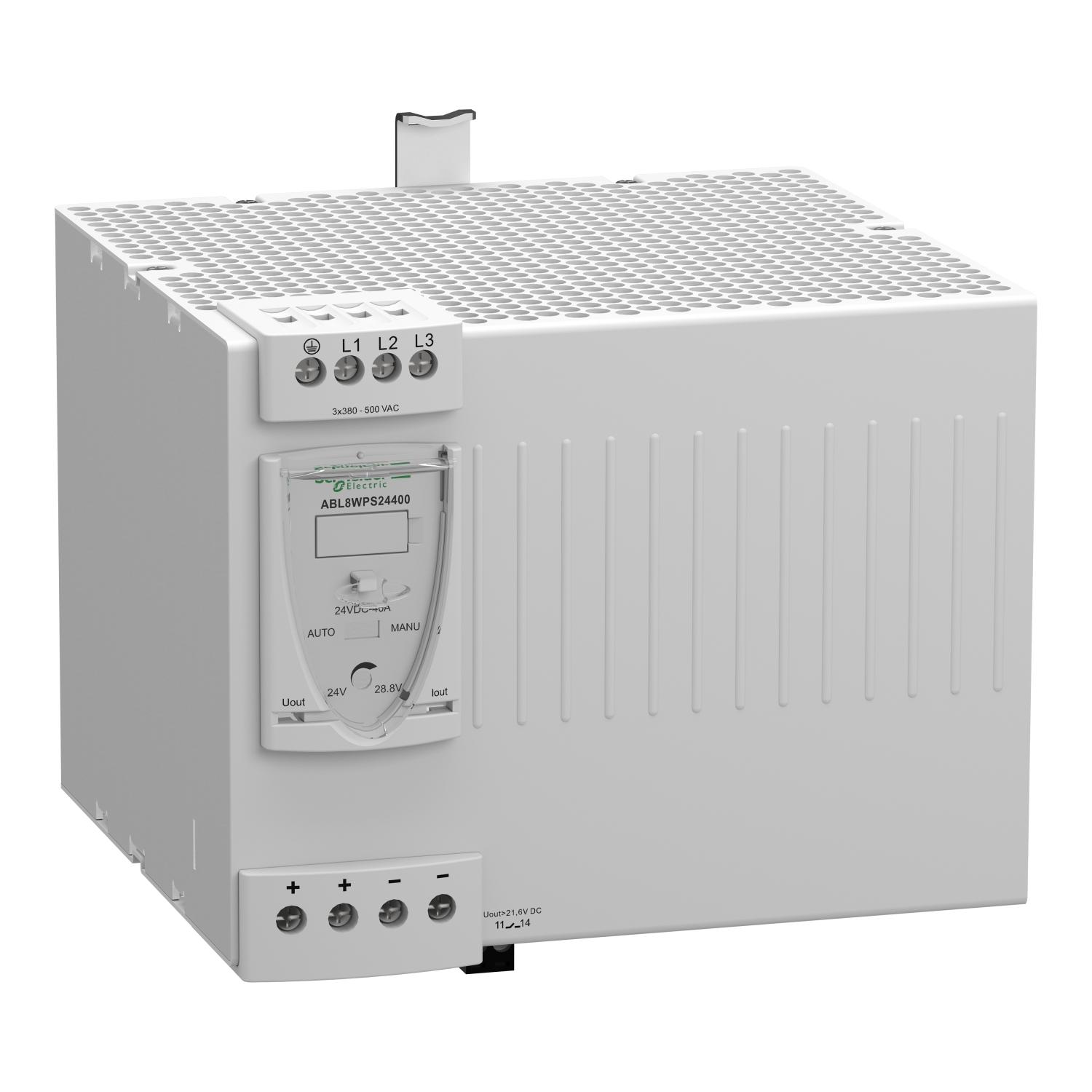

regulated SMPS - 3-phase - 380..500 V - 24 V - 40 A

Modicon Power Supply

Power supply

Regulated switch mode

380...500 V AC three phase, terminal(s): L1, L2, L3

320...550 V AC

960 W

24 V DC

40 A

1.5 x In (for 4 s)

Low frequency harmonic currents

25 A

0.85 at 24 V DC

92 %

24...28.8 V adjustable

76.8 W

Power factor correction filter conforming to IEC 61000-3-2

Against overload, protection technology: manual or automatic reset
Against overvoltage, protection technology: 30...32 V, manual reset
Against short-circuits, protection technology: manual or automatic reset
Against undervoltage, protection technology: tripping if U < 21.6 V
Thermal, protection technology: automatic reset

Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay
Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection
Screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection
Screw type terminals: 4 x 0.5...4 x 10 mm², (AWG 22...AWG 8) for output connection

1 LED (green and red)Output Voltage:
1 LED (green, red and orange)output current:

160 mm

143 mm

166 mm

2.7 kg

Parallel
Series

CE

35 x 7.5 mm symmetrical DIN rail
35 x 15 mm symmetrical DIN rail

Vertical

CSA C22.2 No 60950-1
UL 508

CCSAus
EAC
UL
RCM

EMC conforming to EN 61000-6-1
EMC conforming to EN 61000-6-3
EMC conforming to EN 55024
EMC conforming to EN/IEC 61000-6-4
EMC conforming to EN/IEC 61204-3
Safety conforming to EN 61204-4
Safety conforming to EN/IEC 60950-1
Safety conforming to SELV

2000 m

IP20 conforming to EN/IEC 60529

50…60 °C (with derating factor)
-25…50 °C (without)

-40…70 °C

0…90 % during operation
0…95 % in storage

3500 V between input and ground
4000 V between input and output
500 V between output and ground

3.325 kg

1.960 dm

1.600 dm

1.860 dm
