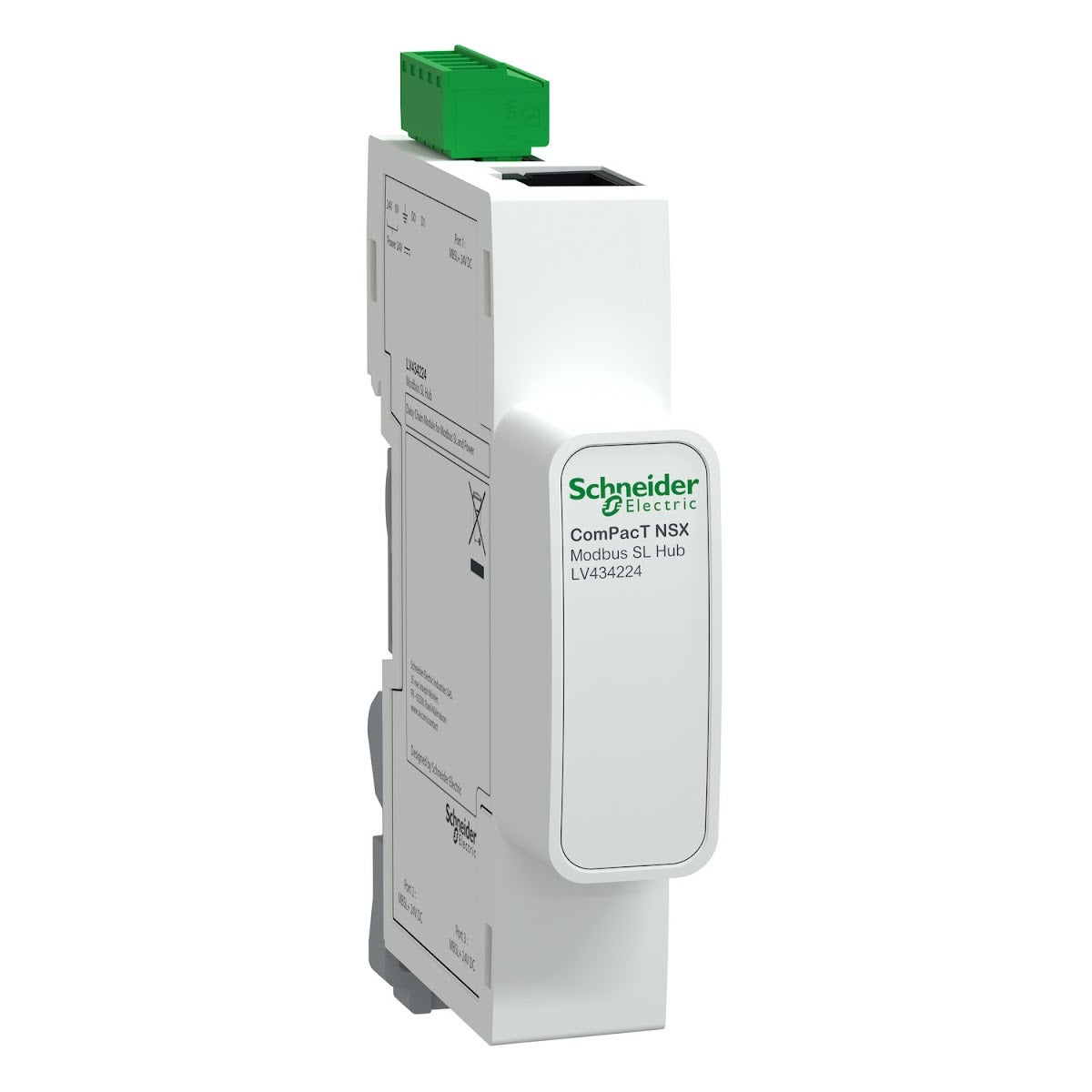

Modbus SL Hub
- Description
- Specifications
- Environmental Data
- Documents
- Reviews
Description
Modbus hub is an accessory for ComPacT NSX breaker to daisy chain Modbus connectivity. It has 3 RJ45 interface to each of which it can connect one BSCM Modbus SL/ULP module via BSCM Modbus Cord. The Modbus hub is installed on a DIN rail. It has an interface to connect stacking connector via which it can be connected to IFM or IFE modules. Modbus Hub also has a terminal block to where it can take 24VDC as input and also can be used to connect other Modbus serial devices and gateways. The BSCM Modbus SL/ULP module’s operational voltage is 24VDC.
Overview
| Product Name | Modbus SL Hub |
|---|---|
| Tax Class | GST-18 |
| Range of product | COMPACT NSX100...250COMPACT NSX400...630 |
| Device short name | Modbus SL HUB |
| Product or component type | MODBUS HUB |
| Device application | COMMUNICATION |
| Range compatibility | COMPACT NSX100COMPACT NSX160COMPACT NSX250COMPACT NSX400COMPACT NSX630 |
| Function of module | DAISY CHAIN FOR MODBUS DEVICES |
| Communication network type | MODBUS, MODBUS SERIAL LINE SLAVE9.6...38.4 KBAUDS |
| Mounting mode | BY CLIPS |
| Mounting support | 35 MM DIN RAIL |
| Accuracy class | CLASS 2 POWER SUPPLY |
| [Us] rated supply voltage | 24 V DC |
| Input voltage | 24 V DC +/- 10 % |
| Current consumption | 2 MA 24 V DC ROOM TEMPERATURE |
| Power consumption in W | 0.048 W |
| Connections - terminals | RJ45 CONNECTOR |
| Product certifications | UL |
| Standards | CISPR 32IEC 61000-4-3IEC 61000-4-6IEC 61000-4-4IEC 61000-4-5IEC 61000-4-2 |
| Height | 102 MM |
| Width | 71 MM |
| Depth | 18 MM |
| Product weight | 57.6 G |
| Relative humidity | 5…85 % AT 55 °C WITHOUT CONDENSATION |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…55 °C |
| Pollution degree | 3 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.100 CM |
| Package 1 Width | 8.000 CM |
| Package 1 Length | 11.300 CM |
| Package 1 Weight | 79.000 G |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 36 |
| Package 2 Height | 15.000 CM |
| Package 2 Width | 30.000 CM |
| Package 2 Length | 40.000 CM |
| Package 2 Weight | 3.424 KG |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 576 |
| Package 3 Height | 75.000 CM |
| Package 3 Width | 60.000 CM |
| Package 3 Length | 80.000 CM |
| Package 3 Weight | 64.784 KG |
| Warranty (in months) | 18 |
Environmental data
Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
| Sustainability | Green PremiumTM label is Schneider Electric’s commitment to delivering products with best-in-class environmental performance. Green Premium promises compliance with the latest regulations, transparency on environmental impacts, as well as circular and low-CO2 products. Guide to assessing product sustainability is a white paper that clarifies global eco-label standards and how to interpret environmental declarations. |
|---|---|
| Sustainable packaging | ✓ |
| Take-back | No |
| Mercury free | ✓ |
| Halogen-free status | Halogen free plastic parts product |
| Environmental Disclosure | Product Environmental Profile (Download) |
| End of life manual availability | End of Life Information (Download) |
| Recyclability potential, in % | 5 |
| Total lifecycle Carbon footprint | 1 kg CO2 eq. |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.941483916888811 |
| Carbon footprint of the manufacturing phase [A1 to A3] | 0.9 kg CO2 eq. |
| Carbon footprint of the distribution phase [A4] | 0.0166805953173469 |
| Carbon footprint of the distribution phase [A4] | 0 kg CO2 eq. |
| Carbon footprint of the installation phase [A5] | 0.00107725634567499 |
| Carbon footprint of the installation phase [A5] | 0 kg CO2 eq. |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 0.140605758680838 |
| Carbon footprint of the use phase [B2, B3, B4, B6] | 0.1 kg CO2 eq. |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.164078997260479 |
| Carbon footprint of the end-of-life phase [C1 to C4] | 0.2 kg CO2 eq. |
| SCIP Number | Fbc983f9-6a01-4e9f-8548-cdf723327c98 |
| REACh Regulation | Reference contains Substances of Very High Concern above the threshold (Download) |
| EU RoHS Directive | Compliant By Exemption (Download) |
| WEEE Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
