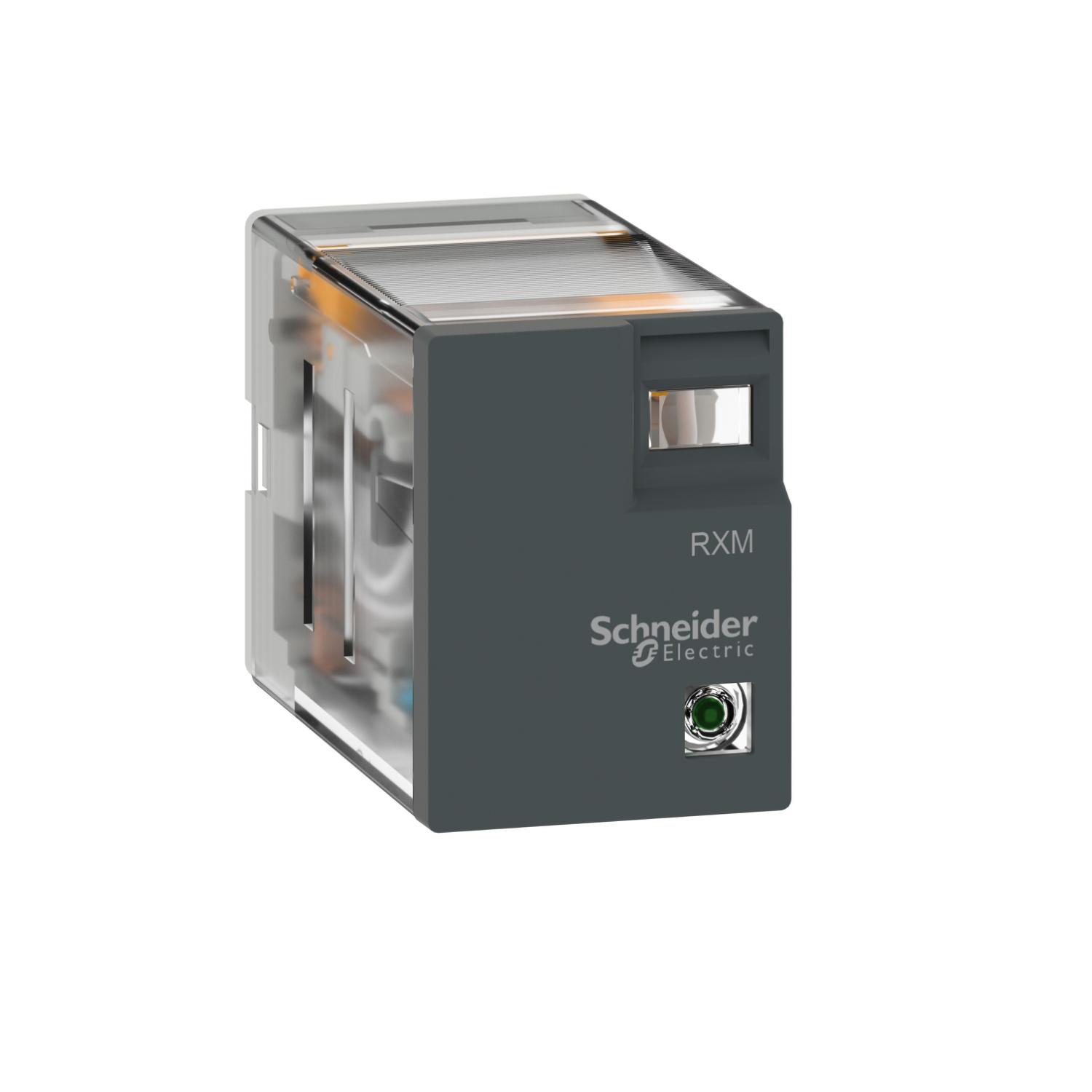

MINIATURE RELAY 3A 4CO 24VAC WITH LED
Share
In stock
SKU
RXM4LB2B7
Regular Price
₹ 550
Special Price
₹ 336
39% Off
( Prices are all exclusive of taxes )
CHECK DELIVERY TIME & COD AVAILABILITY
| range of product |
Zelio Relay
|
|
|---|---|---|
| series name |
Miniature
|
|
| product or component type |
Plug-in relay
|
|
| device short name |
RXM
|
|
| coil interference suppression |
Without
|
|
| utilisation coefficient |
20 %
|
|
| sale per indivisible quantity |
10
|
| contact operation |
Standard
|
|
|---|---|---|
| [Uc] control circuit voltage |
24 V AC 50/60 Hz
|
|
| [Ithe] conventional enclosed thermal current |
3 A at -40…55 °C
|
|
| status LED |
With
|
|
| control type |
Without push-button
|
|
| [Ui] rated insulation voltage |
250 V conforming to IEC
|
|
| [Uimp] rated impulse withstand voltage |
3.6 kV during 1.2/50 µs conforming to IEC 61810-7
|
|
| contacts material |
Silver alloy (Ag/Ni)
|
|
| [Ie] rated operational current |
3 A (AC-1/DC-1) NO conforming to IEC
1.5 A (AC-1/DC-1) NC conforming to IEC |
|
| minimum switching current |
10 mA
|
|
| maximum switching voltage |
250 V AC
250 V DC |
|
| minimum switching voltage |
17 V
|
|
| load current |
3 A at 250 V AC
3 A at 28 V DC |
|
| maximum switching capacity |
750 VA AC
84 W DC |
|
| minimum switching capacity |
170 mW
|
|
| operating rate |
<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load |
|
| mechanical durability |
10000000 cycles
|
|
| electrical durability |
100000 cycles for resistive load
|
|
| average coil consumption in VA |
1.2 AC
|
|
| drop-out voltage threshold |
>= 0.15 Uc AC
|
|
| operating time |
20 ms between coil de-energisation and making of the Off-delay contact
20 ms between coil energisation and making of the On-delay contact |
|
| average resistance |
160 Ohm network: AC at 20 °C +/- 15 %
|
|
| rated operational voltage limits |
19.2...26.4 V AC
|
|
| protection category |
RT I
|
|
| test levels |
Level A group mounting
|
|
| operating position |
Any position
|
|
| CAD overall width |
21 mm
|
|
| CAD overall height |
27 mm
|
|
| CAD overall depth |
46 mm
|
|
| net weight |
0.035 kg
|
|
| dielectric strength |
2000 V AC between coil and contact
2000 V AC between poles 1000 V AC between contacts |
|
| safety reliability data |
B10d = 100000
|
| standards |
EN/IEC 61810-1 (iss. 2)
CE RoHS compliant |
|
|---|---|---|
| ambient air temperature for storage |
-40…85 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| vibration resistance |
3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to EN/IEC 60068-2-6
6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to EN/IEC 60068-2-6 |
|
| IP degree of protection |
IP40 conforming to EN/IEC 60529
|
|
| shock resistance |
10 gn for opening conforming to EN/IEC 60068-2-27
5 gn for closing conforming to EN/IEC 60068-2-27 |
| Package 1 Weight |
0.037 kg
|
|
|---|---|---|
| Package 1 Height |
0.410 dm
|
|
| Package 1 width |
0.210 dm
|
|
| Package 1 Length |
0.280 dm
|
Country of Origin: China
| Product Name | MINIATURE RELAY 3A 4CO 24VAC WITH LED |
|---|---|
| Range Name | Harmony Relays |
| Tax Class | GST-18 |
| Rated Supply voltage | 24 V AC/DC |
| Activity | IDSIG |
| Net Weight | 0.033KG |
| Category | electro mechanical relay |
| MPG Description | SIG - EMR |
| Height | 27MM |
| Width | 21MM |
| MPG | D4 |
| Maximum Depth | 46MM |
| Chapter ID | 85364100 |
| Frequency | 50/60 Hz |
